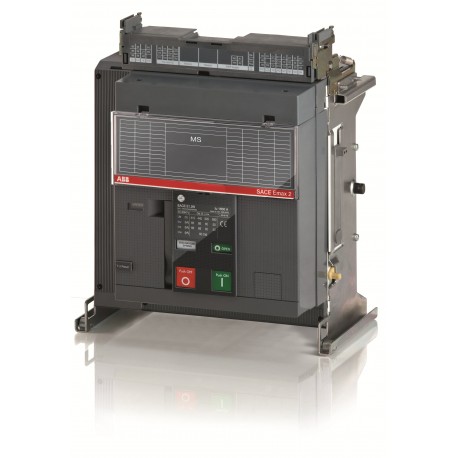

1SDA073520R1 ABB E1.2N/MS 1000 4p WMP
1SDA073520R1
073520
ABB
1 Pcs.
Connectors > Switch disconnector
E1.2
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
An ABB E1.2N/MS 1000 withdrawable switch-disconnector allows safe circuit isolation and convenient removal from switchgear frames during maintenance intervals. Modular withdrawable units are standard in modern commercial and industrial power distribution arrays.
Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- ABB EcoSolutions: Yes
- ABB Site Meeting Group Waste To Landfill Target: UL 2799 Zero Waste To Landfill Validation available
- End Of Life Disassembling Instructions: 9AKK108468A2360
- Environmental Product Declaration - EPD: 9AKK108468A1900
- Recyclability Rate of the Product acc. to EN45555: Design for Closing Resource Loops - Standard EN45555 - 76.4 %
- REACH Declaration: 9AKK108466A1425
- RoHS Declaration: 9AKK108466A1424
- RoHS Information: Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
- Conflict Minerals Reporting Template (CMRT): 9AKK108467A5658
- Toxic Substances Control Act - TSCA: 9AKK108467A8326
- SCIP: dda0b474-a6c5-4131-9be3-18720a5da434 Italy
- Simplified SCIP: 83dad55e-a850-4c54-b401-cf768e5d3881 Sweden
- Environmental Information: 9AKK108467A6707
- Order Code US and Canada: ZANQ00A00000000000XX
- EAN: 8015644773700
- Minimum Order Quantity: 1 piece
More info
▲| ABB EcoSolutions | |
|---|---|
| ABB EcoSolutions | Yes |
| ABB Site Meeting Group Waste To Landfill Target | UL 2799 Zero Waste To Landfill Validation available |
| End Of Life Disassembling Instructions | 9AKK108468A2360 |
| Environmental Product Declaration - EPD | 9AKK108468A1900 |
| 9AKK108468A3028 | |
| Recyclability Rate of the Product acc. to EN45555 | Design for Closing Resource Loops - Standard EN45555 - 76.4 % |
| Material Compliance | |
| REACH Declaration | 9AKK108466A1425 |
| RoHS Declaration | 9AKK108466A1424 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108467A5658 |
| Toxic Substances Control Act - TSCA | 9AKK108467A8326 |
| SCIP | dda0b474-a6c5-4131-9be3-18720a5da434 Italy |
| Simplified SCIP | 83dad55e-a850-4c54-b401-cf768e5d3881 Sweden |
| 50105211-8126-4d8f-a35d-a1800960349c Denmark | |
| d24ce969-8861-4ad0-88b1-b07c84bbf22d Germany | |
| 3e355161-32ea-4c16-9fbc-99e940122ff6 Germany | |
| c5c87151-24a2-43f8-ab15-2f51f7da60d6 Croatia | |
| fc6b688f-c22d-43e7-82a3-593db0ca1aa4 Germany | |
| 5e37ac2b-5456-4eeb-9460-518b94a67751 Spain | |
| 6b4dd85a-3e60-4249-87bb-71da28dccb66 Hungary | |
| dbe409af-5942-4234-be68-263b395056b3 Belgium | |
| 253665fe-3b44-4f73-8cb4-cd0fc1fa1003 France | |
| ecb2412d-10d5-46f4-8cb1-45dd4f16ad20 Poland | |
| f60e67ae-c546-4496-955d-81323c432ecd Poland | |
| c569ea96-91b9-41bd-9ab5-f38e5bb18594 Czech Republic | |
| c46cf951-e41a-4613-bb16-1d8097a34306 Germany | |
| 8c1435ea-08cd-421c-b83c-d7e65532b179 Portugal | |
| 6db7e191-d2a3-4fec-9274-de3a2eec6d74 Germany | |
| 990c8f8e-49a3-4499-940e-01991c36841a France | |
| 09efa4ae-b3b7-4e3a-9e99-21a1aabcda10 Estonia | |
| ef818dc7-aa3c-478c-88e7-95ddcaaa84df Belgium | |
| 67ab17e2-d716-4a0e-b929-abf947b17376 Poland | |
| d92d6851-b0c8-4965-bd34-8f75b334a29f Finland | |
| f434d4e2-2b3f-4165-b079-1c3bf4c51991 Hungary | |
| 78b0f046-b96b-4262-95b5-32db8b502548 Norway | |
| 2a85c856-1318-47b0-bdaf-15b9945ad172 Netherlands | |
| 03a716d1-24a0-4c6b-be96-e1205b571282 Sweden | |
| bfeb0026-1bc2-4173-8631-68a36e1f2612 Bulgaria | |
| b3edca11-67fb-4f86-89c0-378cecba0d8a Greece | |
| Environmental | |
| Environmental Information | 9AKK108467A6707 |
| Ordering | |
| Order Code US and Canada | ZANQ00A00000000000XX |
| EAN | 8015644773700 |
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85362090 |
| Dimensions | |
| Product Net Width | 348 mm |
| Product Net Height | 363.5 mm |
| Product Net Depth / Length | 271 mm |
| Product Net Weight | 20 kg |
| Container Information | |
| Package Level 1 Units | box 1 piece |
| Package Level 1 Width | 350 mm |
| Package Level 1 Height | 350 mm |
| Package Level 1 Depth / Length | 330 mm |
| Package Level 1 Gross Weight | 23 kg |
| Package Level 1 EAN | 8015644773700 |
| Additional Information | |
| Product Main Type | SACE Emax 2 |
| Product Name | Switch Disconnector |
| Product Type | Switch Disconnector |
| Version | W |
| CAD Dimensional Drawing | 1SDH001252R0065 |
| Technical | |
| Current Type | AC |
| Electrical Durability | Ue =< 440 V 8000 cycle |
| Ue = 500 ... 690 V 6500 cycle | |
| 30 cycles per hour | |
| Mechanical Durability | 20000 cycle |
| 60 cycles per hour | |
| Neutral Pole Current ([%Iu]) | 100 % |
| Number of Poles | 4P |
| Power Loss | 156 W |
| Rated Current (In) | 1000 A |
| Rated Impulse Withstand Voltage (Uimp) | 12 kV |
| Rated Insulation Voltage (Ui) | AC 1000 V |
| Rated Operational Voltage | 690 V AC |
| Rated Short-time Withstand Current Low Voltage (Icw) | for 1 s 50 kA |
| for 3 s 30 kA | |
| Rated Uninterrupted Current (Iu) | 1000 A |
| Rated Voltage (Ur) | 690 V |
| Short-Circuit Performance Level | N |
| Standards | IEC |
| Sub-type | E1.2 |
| Certificates and Declarations | |
| ATEX Certificate | No certification needed |
| CSA Certificate | No certification needed |
| CSA Certificate (Intrinsic Safe) | No certification needed |
| Data Sheet, Technical Information | 1SDC200023D0209 |
| Declaration of Conformity - CE | 9AKK106713A5546 |
| UL Certificate | No certification needed |
| VDE Certificate | No certification needed |
| Mechanical Drawings | 1SDH000999R0103 |
| Wiring Diagram | 1SDM000091R0001 |
| Instructions and Manuals | 1SDH000999R0002 |
| External Classifications and Standards | |
| ETIM 9 | EC000216 - Switch disconnector (low voltage) |
| ETIM 10 | EC000216 - Switch disconnector (AC) |
| IDEA Granular Category Code (IGCC) | 5293 >> Switch disconnector |
| Object Classification Code | Q |
| UNSPSC | 39122233 |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| eClass | V11.1 : 27371403 |
