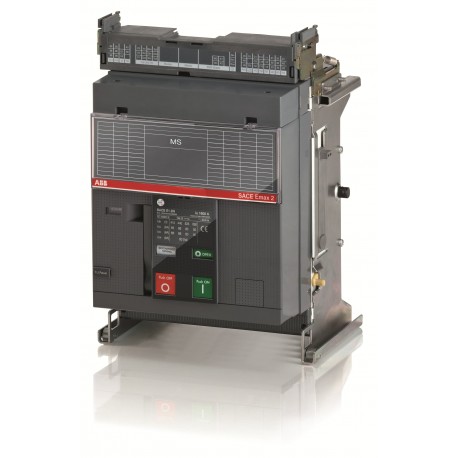

1SDA073481R1 ABB E1.2N/MS 1000 3p WMP
1SDA073481R1
073481
ABB
1 Pcs.
E1.2N/MS 1000 3p WMP
Connectors > Switch disconnector
E1.2
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲| ABB EcoSolutions | |
|---|---|
| ABB EcoSolutions | Yes |
| ABB Site Meeting Group Waste To Landfill Target | UL 2799 Zero Waste To Landfill Validation available |
| End Of Life Disassembling Instructions | 9AKK108468A2360 |
| Environmental Product Declaration - EPD | 9AKK108468A1900 |
| 9AKK108468A3028 | |
| Extended Product Lifetime | Lifetime Extension Services are Offered |
| Recyclability Rate of the Product acc. to EN45555 | Design for Closing Resource Loops - Standard EN45555 - 76.4 % |
| Material Compliance | |
| REACH Declaration | 9AKK108466A1425 |
| RoHS Declaration | 9AKK108466A1424 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108467A5658 |
| Toxic Substances Control Act - TSCA | 9AKK108467A8326 |
| SCIP | b39453b3-2cbc-47ba-9504-5b77e6af08dc Italy |
| Simplified SCIP | 9ab01897-f68b-46b0-95b8-34b2178ebb88 Netherlands |
| 6376bdf1-2c29-4c31-8757-e09158f741ef Norway | |
| 949e4c38-ed18-49c4-b612-69d022e89318 Finland | |
| addc7d08-3f1b-4f85-b24a-9ab5a7215c6f Poland | |
| 978184ce-4f3a-4313-b3c8-d3ab4e5383c7 Sweden | |
| d7914df4-4253-47da-ba25-278e5d5b54f0 Hungary | |
| 352d07d7-6bbc-4184-9b1c-7c26945abce2 Estonia | |
| 7de8f880-569f-4f4d-949e-2a3bcff50513 Belgium | |
| aa542494-1795-4b7b-a591-20fa17f3c39d Poland | |
| bd665a28-a4be-4462-be4b-09a9f9918bbf Greece | |
| 85ce4a92-b608-4b61-9401-cde9f801c002 Germany | |
| afd36746-b9ee-4b3b-83e6-f84c83b83b4a France | |
| 7eca54a0-a37d-4aec-b987-782c96eb8d5d Croatia | |
| 2645ca2a-008f-4e56-9269-8ed8ae9d1120 Germany | |
| 4e182c9a-3034-4db0-ab10-7d46b5e43701 Denmark | |
| fb217ffc-94de-4d39-aaf8-76e88987c7f6 Sweden | |
| 2ec38b3c-41d6-43a3-9c7c-9f19e50d53aa Germany | |
| b0f7207a-4cd2-40ec-98ae-11ff2421125e Hungary | |
| c864b0a6-3c1f-4399-8340-e641bc157df8 France | |
| a85f99d4-4b6c-4c4a-8451-53ecdd665834 Germany | |
| d3324d62-4d10-419c-b22c-6e7764dc12a1 Spain | |
| 5976f940-fb18-446f-b575-5543a9558ad5 Belgium | |
| a63911e0-e2ce-4025-91c2-5fc9437d7047 Czech Republic | |
| 38bedb5f-c807-407e-9142-7bb4c7d616fc Germany | |
| 340dc7e8-5905-4655-8923-5ef86191e35f Bulgaria | |
| 1f216779-fa77-4073-b046-8356cfe45b07 Poland | |
| 6fd3d231-1a07-439c-9d51-3453523d7098 Portugal | |
| Environmental | |
| Environmental Information | 9AKK108467A6707 |
| Ordering | |
| Order Code US and Canada | Z1NQ00A00000000000XX |
| EAN | 8015644773311 |
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85362090 |
| Dimensions | |
| Product Net Width | 278 mm |
| Product Net Height | 363.5 mm |
| Product Net Depth / Length | 271 mm |
| Product Net Weight | 18 kg |
| Container Information | |
| Package Level 1 Units | box 1 piece |
| Package Level 1 Width | 270 mm |
| Package Level 1 Height | 350 mm |
| Package Level 1 Depth / Length | 330 mm |
| Package Level 1 Gross Weight | 20 kg |
| Package Level 1 EAN | 8015644773311 |
| Additional Information | |
| Product Main Type | SACE Emax 2 |
| Product Name | Switch Disconnector |
| Product Type | Switch Disconnector |
| Version | W |
| CAD Dimensional Drawing | 1SDH001252R0024 |
| Technical | |
| Connecting Capacity | 1000 mm² |
| Current Type | AC |
| Electrical Durability | Ue =< 440 V 8000 cycle |
| Ue = 500 ... 690 V 6500 cycle | |
| 30 cycles per hour | |
| Mechanical Durability | 20000 cycle |
| 60 cycles per hour | |
| Number of Poles | 3P |
| Power Loss | 156 W |
| Rated Current (In) | 1000 A |
| Rated Impulse Withstand Voltage (Uimp) | 12 kV |
| Rated Insulation Voltage (Ui) | AC 1000 V |
| Rated Operational Voltage | 690 V AC |
| Rated Short-time Withstand Current Low Voltage (Icw) | for 1 s 50 kA |
| for 3 s 30 kA | |
| Rated Uninterrupted Current (Iu) | 1000 A |
| Rated Voltage (Ur) | 690 V |
| Recommended Screw Driver | M12 |
| Short-Circuit Performance Level | N |
| Standards | IEC |
| Sub-type | E1.2 |
| Certificates and Declarations | |
| ATEX Certificate | No certification needed |
| CSA Certificate | No certification needed |
| CSA Certificate (Intrinsic Safe) | No certification needed |
| Data Sheet, Technical Information | 1SDC200023D0209 |
| Declaration of Conformity - CE | 9AKK106713A5546 |
| UL Certificate | No certification needed |
| VDE Certificate | No certification needed |
| Mechanical Drawings | 1SDH000999R0103 |
| Wiring Diagram | 1SDM000091R0001 |
| Instructions and Manuals | 1SDH000999R0002 |
| External Classifications and Standards | |
| ETIM 9 | EC000216 - Switch disconnector (low voltage) |
| ETIM 10 | EC000216 - Switch disconnector (AC) |
| IDEA Granular Category Code (IGCC) | 5293 >> Switch disconnector |
| Object Classification Code | Q |
| UNSPSC | 39122233 |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| eClass | V11.1 : 27371403 |
| Feature Name | Feature Value |
|---|---|
| Version as main switch (EF006981) | Yes |
| Version as maintenance-/service switch (EF006986) | No |
| Version as safety switch (EF006985) | No |
| Version as emergency stop installation (EF006959) | No |
| Version as reversing switch (EF009408) | No |
| Number of switches (EF005586) | 0 |
| Max. rated operation voltage Ue AC (EF007355) | 690 V |
| Rated operating voltage (EF001435) | 690 V |
| Rated permanent current Iu (EF001389) | 1000 A |
| Rated permanent current at AC-23, 400 V (EF011777) | 1000 A |
| Rated permanent current at AC-21, 400 V (EF009165) | 1000 A |
| Rated short-time withstand current lcw (EF007050) | 50 kA |
| Number of poles (EF001391) | 3 |
| Number of auxiliary contacts as normally closed contact (EF001377) | 0 |
| Number of auxiliary contacts as normally open contact (EF001376) | 0 |
| Number of auxiliary contacts as change-over contact (EF003531) | 0 |
| Motor drive optional (EF007386) | Yes |
| Motor drive integrated (EF006697) | No |
| Voltage release optional (EF007491) | Yes |
| Device construction (EF008240) | Built-in device slide-in technique (withdrawable) |
| Suitable for front mounting 4-hole (EF007247) | No |
| Suitable for front mounting centre (EF007248) | No |
| Suitable for distribution board installation (EF007262) | Yes |
| Suitable for intermediate mounting (EF007264) | No |
| Colour control element (EF007167) | Other |
| Type of control element (EF006976) | Push button |
| Interlockable (EF006281) | Yes |
| Type of electrical connection of main circuit (EF006819) | Bolt connection |
| Degree of protection (IP), front side (EF003118) | IP30 |
| Degree of protection (NEMA) (EF011959) | Other |
