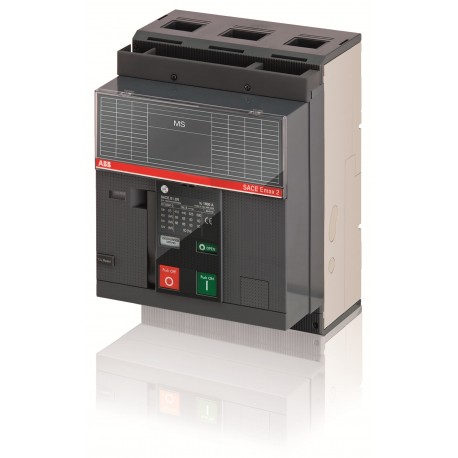

1SDA073397R1 ABB E1.2N/MS 1000 3p F F
1SDA073397R1
073397
ABB
1 Pcs.
E1.2N/MS 1000 3p F F
Connectors > Switch disconnector
E1.2
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲| ABB EcoSolutions | |
|---|---|
| ABB EcoSolutions | Yes |
| ABB Site Meeting Group Waste To Landfill Target | UL 2799 Zero Waste To Landfill Validation available |
| End Of Life Disassembling Instructions | 9AKK108468A2360 |
| Environmental Product Declaration - EPD | 9AKK108468A1900 |
| 9AKK108468A3028 | |
| Extended Product Lifetime | Lifetime Extension Services are Offered |
| Recyclability Rate of the Product acc. to EN45555 | Design for Closing Resource Loops - Standard EN45555 - 76.4 % |
| Material Compliance | |
| REACH Declaration | 9AKK108466A1425 |
| RoHS Declaration | 9AKK108466A1424 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108467A5658 |
| Toxic Substances Control Act - TSCA | 9AKK108467A8326 |
| SCIP | 68d694ca-a393-4fd8-88c0-182a7b3cbd0f Italy |
| Simplified SCIP | 5d979bd8-fcc7-48cd-a9d2-e85001da27b1 Spain |
| 25fced8d-48e8-401b-8d8c-cc5c4144c19b Belgium | |
| 17a6db01-79f7-4705-b71b-cb441d3c11bc Germany | |
| c4b9c475-8fe4-418b-b584-d9698223d07b Poland | |
| f7e6ab7c-40d8-4619-ae14-d4bf9503d232 Norway | |
| 6f6aef31-f200-426b-9116-349b70db35eb Denmark | |
| 53391579-7aa6-4815-8716-6be8033acde5 Germany | |
| c14a5429-091f-4bc3-936f-886f13172f47 Finland | |
| 2b80283e-200d-43e8-a84e-0cabd98e1aeb Belgium | |
| 82939a6a-c946-40f0-9a31-5dc43b6165f8 Sweden | |
| 0441f65b-7fc5-4445-9e99-8dfa13c32cb5 Estonia | |
| 6da3ead3-081f-4762-b16f-54c2e25ec9d9 Netherlands | |
| e81f16b1-dc4b-447d-a890-2aa0b19b2d33 Hungary | |
| 81cd029b-1409-4cb6-bbff-767c43035e91 Greece | |
| 49139fad-2748-4976-b3ae-2e54c2fb53d7 Portugal | |
| 8df6a3e8-2d56-4000-8613-744fee631b6a Bulgaria | |
| e34bf577-dc33-462a-a8d0-f9fcd703750e Poland | |
| d8d634d5-24f9-49a2-87e4-35a76d7fa1f9 Sweden | |
| e2087d25-49eb-4872-9d7b-5c2df1c15eda Germany | |
| 56352127-3c4f-46ad-8f6e-336a2cb4a8c2 Croatia | |
| ae0fba8d-c559-4e32-b3ef-7a31272dfff8 Czech Republic | |
| 5cb2e178-dc04-4411-8582-1ef48935d23b Poland | |
| 3b0784f8-fe23-4d65-9aec-ed3fb47fb44c Germany | |
| c76dec47-b5e1-48bd-97f9-889f579471d7 Germany | |
| 186bebc7-03ed-414d-81d7-14e97eb2b75f France | |
| 1a7e10be-e7dc-47af-b89a-256aa69f8fea Hungary | |
| 437c9397-44ad-4556-b545-7cabb971d534 France | |
| Environmental | |
| Environmental Information | 9AKK108467A6707 |
| Ordering | |
| Order Code US and Canada | Z1NQ00B00000000000XX |
| EAN | 8015644772475 |
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85362090 |
| Dimensions | |
| Product Net Width | 210 mm |
| Product Net Height | 296 mm |
| Product Net Depth / Length | 183 mm |
| Product Net Weight | 14 kg |
| Container Information | |
| Package Level 1 Units | box 1 piece |
| Package Level 1 Width | 270 mm |
| Package Level 1 Height | 350 mm |
| Package Level 1 Depth / Length | 330 mm |
| Package Level 1 Gross Weight | 16 kg |
| Package Level 1 EAN | 8015644772475 |
| Additional Information | |
| Product Main Type | SACE Emax 2 |
| Product Name | Switch Disconnector |
| Product Type | Switch Disconnector |
| Version | F |
| CAD Dimensional Drawing | 1SDH001252R0001 |
| Technical | |
| Connecting Capacity | 1000 mm² |
| Current Type | AC |
| Electrical Durability | Ue =< 440 V 8000 cycle |
| Ue = 500 ... 690 V 6500 cycle | |
| 30 cycles per hour | |
| Mechanical Durability | 20000 cycle |
| 60 cycles per hour | |
| Number of Poles | 3P |
| Power Loss | 78 W |
| Rated Current (In) | 1000 A |
| Rated Impulse Withstand Voltage (Uimp) | 12 kV |
| Rated Insulation Voltage (Ui) | AC 1000 V |
| Rated Operational Voltage | 690 V AC |
| Rated Short-time Withstand Current Low Voltage (Icw) | for 1 s 50 kA |
| for 3 s 30 kA | |
| Rated Uninterrupted Current (Iu) | 1000 A |
| Rated Voltage (Ur) | 690 V |
| Recommended Screw Driver | M12 |
| Short-Circuit Performance Level | N |
| Standards | IEC |
| Sub-type | E1.2 |
| Terminal Connection Type | Front |
| Terminal Type | Bolt |
| Tightening Torque | 45 N·m |
| Certificates and Declarations | |
| ATEX Certificate | No certification needed |
| CSA Certificate | No certification needed |
| CSA Certificate (Intrinsic Safe) | No certification needed |
| Data Sheet, Technical Information | 1SDC200023D0209 |
| Declaration of Conformity - CE | 9AKK106713A5546 |
| UL Certificate | No certification needed |
| VDE Certificate | No certification needed |
| Mechanical Drawings | 1SDH000999R0101 |
| Wiring Diagram | 1SDM000091R0001 |
| Instructions and Manuals | 1SDH000999R0002 |
| External Classifications and Standards | |
| ETIM 9 | EC000216 - Switch disconnector (low voltage) |
| ETIM 10 | EC000216 - Switch disconnector (AC) |
| IDEA Granular Category Code (IGCC) | 5293 >> Switch disconnector |
| Object Classification Code | Q |
| UNSPSC | 39122233 |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| eClass | V11.1 : 27371403 |
| Feature Name | Feature Value |
|---|---|
| Version as main switch (EF006981) | Yes |
| Version as maintenance-/service switch (EF006986) | No |
| Version as safety switch (EF006985) | No |
| Version as emergency stop installation (EF006959) | No |
| Version as reversing switch (EF009408) | No |
| Number of switches (EF005586) | 0 |
| Max. rated operation voltage Ue AC (EF007355) | 690 V |
| Rated operating voltage (EF001435) | 690 V |
| Rated permanent current Iu (EF001389) | 1000 A |
| Rated permanent current at AC-23, 400 V (EF011777) | 1000 A |
| Rated permanent current at AC-21, 400 V (EF009165) | 1000 A |
| Rated short-time withstand current lcw (EF007050) | 50 kA |
| Number of poles (EF001391) | 3 |
| Number of auxiliary contacts as normally closed contact (EF001377) | 0 |
| Number of auxiliary contacts as normally open contact (EF001376) | 0 |
| Number of auxiliary contacts as change-over contact (EF003531) | 0 |
| Motor drive optional (EF007386) | Yes |
| Motor drive integrated (EF006697) | No |
| Voltage release optional (EF007491) | Yes |
| Device construction (EF008240) | Built-in device fixed built-in technique |
| Suitable for front mounting 4-hole (EF007247) | No |
| Suitable for front mounting centre (EF007248) | No |
| Suitable for distribution board installation (EF007262) | Yes |
| Suitable for intermediate mounting (EF007264) | No |
| Colour control element (EF007167) | Other |
| Type of control element (EF006976) | Push button |
| Interlockable (EF006281) | Yes |
| Type of electrical connection of main circuit (EF006819) | Bolt connection |
| Degree of protection (IP), front side (EF003118) | IP30 |
| Degree of protection (NEMA) (EF011959) | Other |
