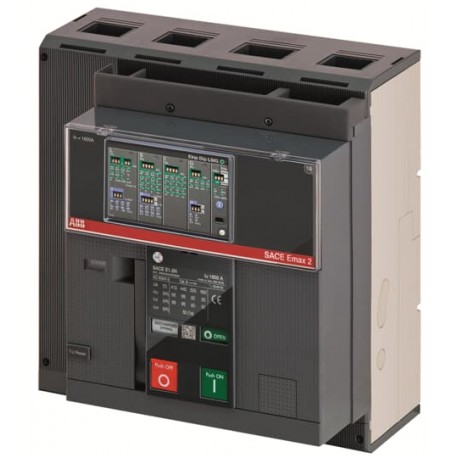

1SDA071421R1 ABB E1.2C 1000 Ekip Dip LI 4p F F
1SDA071421R1
071421
ABB
1 Pcs.
Automation > Power circuit-breaker for trafo/generator/installation protection
E1.2
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
Abb 1SDA071421R1 E1.2C 1000 Ekip Dip LI 4p F F is an air circuit breaker utilized in commercial and industrial electrical systems to manage high current distribution and provide reliable fault protection. Units of this scale are essential for safeguarding core power networks.
Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- ABB EcoSolutions: Yes
- ABB Site Meeting Group Waste To Landfill Target: UL 2799 Zero Waste To Landfill Validation available
- End Of Life Disassembling Instructions: 9AKK108468A2360
- Environmental Product Declaration - EPD: 9AKK108468A1900
- Recyclability Rate of the Product acc. to EN45555: Design for Closing Resource Loops - Standard EN45555 - 76.4 %
- REACH Declaration: 9AKK108466A1425
- RoHS Declaration: 9AKK108466A1424
- RoHS Information: Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
- Conflict Minerals Reporting Template (CMRT): 9AKK108467A5658
- Toxic Substances Control Act - TSCA: 9AKK108467A8326
- SCIP: 807570cc-b576-4bf6-99d5-6b3f86c2f092 Italy
- Simplified SCIP: bfdb5638-e373-4570-9412-a26ab0731d58 Germany
- Environmental Information: 9AKK108467A6707
- Order Code US and Canada: ZACQEGBA000A000000XX
- EAN: 8015644752712
- Minimum Order Quantity: 1 piece
More info
▲| ABB EcoSolutions | |
|---|---|
| ABB EcoSolutions | Yes |
| ABB Site Meeting Group Waste To Landfill Target | UL 2799 Zero Waste To Landfill Validation available |
| End Of Life Disassembling Instructions | 9AKK108468A2360 |
| Environmental Product Declaration - EPD | 9AKK108468A1900 |
| 9AKK108468A3028 | |
| Recyclability Rate of the Product acc. to EN45555 | Design for Closing Resource Loops - Standard EN45555 - 76.4 % |
| Material Compliance | |
| REACH Declaration | 9AKK108466A1425 |
| RoHS Declaration | 9AKK108466A1424 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108467A5658 |
| Toxic Substances Control Act - TSCA | 9AKK108467A8326 |
| SCIP | 807570cc-b576-4bf6-99d5-6b3f86c2f092 Italy |
| Simplified SCIP | bfdb5638-e373-4570-9412-a26ab0731d58 Germany |
| 8824832b-a177-4e72-acab-db2fa5f1abd3 Croatia | |
| c505afaf-9c5a-4195-a817-1ec30a8eba30 Germany | |
| 314aa721-939c-4474-9b5b-a82d76a92d43 France | |
| 4455d44e-f40f-4892-88be-8fce7b94c7e5 Hungary | |
| 019d6ee1-1d4e-4543-b8d3-eb5fcbc78e2f Germany | |
| 22637b77-fb5b-4d2e-9d7d-1006782929ed Germany | |
| 38658ed6-3323-499f-91ec-8cd54e18ed8f Netherlands | |
| e3d36915-86ee-4148-a8a4-cee6d5fd83fc Hungary | |
| 98b1363d-ee6f-479e-8b85-05fb9183c003 Estonia | |
| 3efbfacd-59a8-4fa0-bd72-e3e915ed2d0f Portugal | |
| 99e7c427-256e-4906-815a-5de234d164d7 Bulgaria | |
| c5f90a17-e129-4799-84e3-c897c50455f3 Sweden | |
| 953132ad-eb77-4a71-b1ba-69f224b5fce4 Poland | |
| 7db4dec2-33fc-4187-983b-a572c2274805 France | |
| ca1824ed-0597-43ec-8815-e291c68f28d2 Poland | |
| 095b6e60-465b-42e3-884c-18443517b916 Spain | |
| 9648d01c-702d-484f-a2c8-ac59ae902a37 Belgium | |
| 2b74d837-9838-485d-af76-14514eba4648 Greece | |
| 2d5e1e18-c63c-499d-b1e9-2505f52779cd Sweden | |
| fe2c0c20-ec80-4b8e-85f1-df7bd4703a5b Czech Republic | |
| f1a6a2c3-6c16-47bf-9e87-244e55cae8a8 Poland | |
| 2f2ba68f-a8bd-4f47-bf20-d3d6dc5f58e4 Norway | |
| cccb2d53-c742-42d5-8dd4-c09563a54b37 Finland | |
| 09e5adb2-457e-44c0-9849-5d3529c3a420 Belgium | |
| 720597b5-89e2-426e-9d17-518c97bafb5b Germany | |
| 7aabf370-a016-47fb-967f-9d25ef5a8737 Denmark | |
| Environmental | |
| Environmental Information | 9AKK108467A6707 |
| Ordering | |
| Order Code US and Canada | ZACQEGBA000A000000XX |
| EAN | 8015644752712 |
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85362090 |
| Dimensions | |
| Product Net Width | 280 mm |
| Product Net Height | 296 mm |
| Product Net Depth / Length | 183 mm |
| Product Net Weight | 16 kg |
| Container Information | |
| Package Level 1 Units | box 1 piece |
| Package Level 1 Width | 350 mm |
| Package Level 1 Height | 350 mm |
| Package Level 1 Depth / Length | 330 mm |
| Package Level 1 Gross Weight | 18 kg |
| Package Level 1 EAN | 8015644752712 |
| Additional Information | |
| Product Main Type | SACE Emax 2 |
| Product Name | Air Circuit Breaker |
| Product Type | Air Circuit Breaker |
| Version | F |
| CAD Dimensional Drawing | 1SDH001252R0042 |
| Technical | |
| Current Type | AC |
| Electrical Durability | Ue =< 440 V 8000 cycle |
| Ue = 500 ... 690 V 8000 cycle | |
| 30 cycles per hour | |
| Mechanical Durability | 20000 cycle |
| 60 cycles per hour | |
| Neutral Pole Current ([%Iu]) | 100 % |
| Number of Poles | 4P |
| Power Loss | 78 W |
| Rated Current (In) | 1000 A |
| Rated Impulse Withstand Voltage (Uimp) | acc. to IEC 60947-2 12 kV |
| Rated Insulation Voltage (Ui) | AC 1000 V |
| Rated Operational Voltage | 690 V AC |
| Rated Service Short-Circuit Breaking Capacity (Ics) | (220 V AC) 50 kA |
| (230 V AC) 50 kA | |
| (380 V AC) 50 kA | |
| (400 V AC) 50 kA | |
| (415 V AC) 50 kA | |
| (440 V AC) 50 kA | |
| (500 V AC) 42 kA | |
| (660 V AC) 42 kA | |
| (690 V AC) 42 kA | |
| Rated Service Short-Circuit Breaking Capacity, in % of Icu (Ics) | 100 % |
| Rated Short-time Withstand Current Low Voltage (Icw) | for 1 s 42 kA |
| for 3 s 24 kA | |
| Rated Ultimate Short-Circuit Breaking Capacity (Icu) | (400 V AC) 50 kA |
| (415 V AC) 50 kA | |
| (440 V AC) 50 kA | |
| (500 V AC) 42 kA | |
| (525 V AC) 42 kA | |
| (690 V AC) 42 kA | |
| Rated Uninterrupted Current (Iu) | 1000 A |
| Rated Voltage (Ur) | 690 V |
| Recommended Screw Driver | Main Circuit M10 |
| Release | Ekip Dip LI |
| Release Type | EL |
| Short-Circuit Performance Level | C |
| Standards | IEC |
| Sub-type | E1.2 |
| Suitable for IT Networks | Yes, 690V |
| Terminal Connection Type | Front |
| Terminal Type | Bolt |
| Tightening Torque | 45 N·m |
| Certificates and Declarations | |
| ATEX Certificate | No certification needed |
| CSA Certificate | No certification needed |
| CSA Certificate (Intrinsic Safe) | No certification needed |
| Data Sheet, Technical Information | 1SDC200023D0209 |
| Declaration of Conformity - CE | 9AKK106713A5546 |
| UL Certificate | No certification needed |
| VDE Certificate | No certification needed |
| Mechanical Drawings | 1SDH000999R0101 |
| Wiring Diagram | 1SDM000091R0001 |
| Instructions and Manuals | 1SDH000999R0002 |
| External Classifications and Standards | |
| ETIM 9 | EC000228 - Power circuit-breaker for trafo/generator/installation protection |
| ETIM 10 | EC000228 - Power circuit-breaker for trafo/generator/installation protection |
| IDEA Granular Category Code (IGCC) | 4926 >> Air circuit breakers |
| Object Classification Code | Q |
| UNSPSC | 39121615 |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| eClass | V11.1 : 27370409 |
