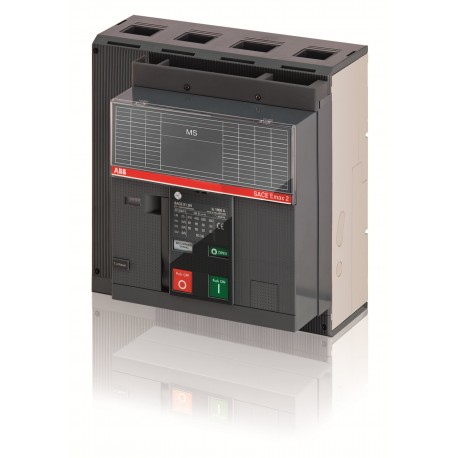

ABB 1SDA073439R1 1SDA073439R1 ABB E1.2B/MS 1600 4p F F View larger
Images are for illustrative purposes only. Please refer to data sheet for details

1SDA073439R1 ABB E1.2B/MS 1600 4p F F

1SDA073439R1

073439

ABB

1 Pcs.

E1.2B/MS 1600 4p F F

Connectors > Switch disconnector
E1.2

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲
ABB EcoSolutions
ABB EcoSolutionsYes
ABB Site Meeting Group Waste To Landfill TargetUL 2799 Zero Waste To Landfill Validation available
End Of Life Disassembling Instructions9AKK108468A2360
Environmental Product Declaration - EPD9AKK108468A1900
9AKK108468A3028
Extended Product LifetimeLifetime Extension Services are Offered
Recyclability Rate of the Product acc. to EN45555Design for Closing Resource Loops - Standard EN45555 - 76.4 %
Material Compliance
REACH Declaration9AKK108466A1425
RoHS Declaration9AKK108466A1424
RoHS InformationFollowing EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Conflict Minerals Reporting Template (CMRT)9AKK108467A5658
Toxic Substances Control Act - TSCA9AKK108467A8326
SCIPb808b132-729f-4cff-b08c-fe3a05d24e1b Italy
Simplified SCIPb96b5e7a-68c2-4827-a025-ad289561358f Germany
2321bb3e-01b2-4c0a-8b5b-9016e7cfb572 Germany
308865a7-2f6b-44aa-bf89-9269f9e80046 Portugal
0fc65000-8745-465e-b391-b4490338a54f Poland
58708fd3-91f7-46b0-85f4-3bcd63cc36c5 Poland
f0e40cec-8e8a-42f1-96e7-d0a9d501ed08 Bulgaria
684efd21-799e-47a7-bbfb-9272f2b4ffcc Netherlands
87fa6591-a6ee-4e44-b615-9ffd2b141298 Czech Republic
06885288-6d43-4c51-a3fd-2dbfc590462f Poland
7750cb77-c0ce-4875-8845-7eddfc38394b Finland
546825cf-ff6d-4ca6-b579-7532a03ab706 Norway
2c47bc0c-b922-4d64-823f-3158d47d387b Sweden
36b8c8e2-6904-4f82-980f-d1a41507586b Hungary
82d91772-8a19-4a26-9c35-a5a33fbfd560 Estonia
8786470a-f53d-4f5c-b602-4a6bb887533a Belgium
732666bc-d8a5-41dd-abbf-cd6549374a40 Germany
4167448c-0ca1-4339-8eef-c1e317f650b3 Greece
f123460b-b103-4b60-8cda-6fdf19d7c853 Germany
99ef5968-4cf8-4625-9336-cc9835a1a7a2 France
f12869da-8c44-4a0c-a99b-f39da94dd14b Belgium
204c3cd2-02c5-4cd2-abaf-5acf88e08324 Spain
561cb3a5-95e0-4524-816a-474edeb366cc Hungary
eda463b9-9d25-46a7-ac5f-8928b34ce845 Croatia
b5da8bd1-eb25-4adc-be50-b56ba76703e2 Germany
86eba22b-7190-4f29-8af0-a9ed7aa7b208 France
19d0a3d2-8d4e-4066-b464-02c47e405b98 Denmark
cd0ce256-4510-49a8-b9d6-9c27292698ff Sweden
Environmental
Environmental Information9AKK108467A6707
Ordering
Order Code US and CanadaZABS00B00000000000XX
EAN8015644772895
Minimum Order Quantity1 piece
Customs Tariff Number85362090
Dimensions
Product Net Width280 mm
Product Net Height296 mm
Product Net Depth / Length183 mm
Product Net Weight16 kg
Container Information
Package Level 1 Unitsbox 1 piece
Package Level 1 Width350 mm
Package Level 1 Height350 mm
Package Level 1 Depth / Length330 mm
Package Level 1 Gross Weight18 kg
Package Level 1 EAN8015644772895
Additional Information
Product Main TypeSACE Emax 2
Product NameSwitch Disconnector
Product TypeSwitch Disconnector
VersionF
CAD Dimensional Drawing1SDH001252R0042
Technical
Connecting Capacity1200 mm²
Current TypeAC
Electrical DurabilityUe =< 440 V 8000 cycle
Ue = 500 ... 690 V 6500 cycle
30 cycles per hour
Mechanical Durability20000 cycle
60 cycles per hour
Neutral Pole Current ([%Iu])100 %
Number of Poles4P
Power Loss201 W
Rated Current (In)1600 A
Rated Impulse Withstand Voltage (Uimp)12 kV
Rated Insulation Voltage (Ui)AC 1000 V
Rated Operational Voltage690 V AC
Rated Short-time Withstand Current Low Voltage (Icw)for 1 s 42 kA
for 3 s 24 kA
Rated Uninterrupted Current (Iu)1600 A
Rated Voltage (Ur)690 V
Recommended Screw DriverM12
Short-Circuit Performance LevelB
StandardsIEC
Sub-typeE1.2
Terminal Connection TypeFront
Terminal TypeBolt
Tightening Torque45 N·m
Certificates and Declarations
ATEX CertificateNo certification needed
CSA CertificateNo certification needed
CSA Certificate (Intrinsic Safe)No certification needed
Data Sheet, Technical Information1SDC200023D0209
Declaration of Conformity - CE9AKK106713A5546
UL CertificateNo certification needed
VDE CertificateNo certification needed
Mechanical Drawings1SDH000999R0101
Wiring Diagram1SDM000091R0001
Instructions and Manuals1SDH000999R0002
External Classifications and Standards
ETIM 9EC000216 - Switch disconnector (low voltage)
ETIM 10EC000216 - Switch disconnector (AC)
IDEA Granular Category Code (IGCC)5293 >> Switch disconnector
Object Classification CodeQ
UNSPSC39122233
WEEE Category5. Small Equipment (No External Dimension More Than 50 cm)
eClassV11.1 : 27371403

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
