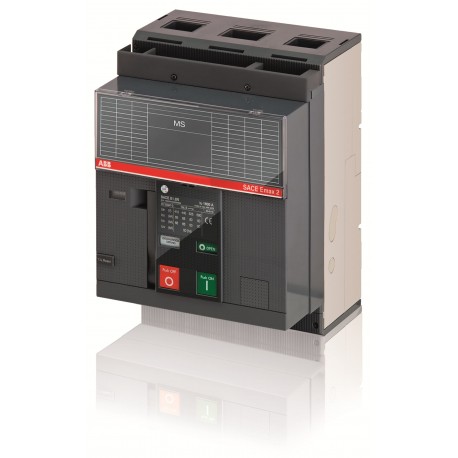

ABB 1SDA073396R1 1SDA073396R1 ABB E1.2B/MS 1000 3p F F View larger
Images are for illustrative purposes only. Please refer to data sheet for details

1SDA073396R1 ABB E1.2B/MS 1000 3p F F

1SDA073396R1

073396

ABB

1 Pcs.

E1.2B/MS 1000 3p F F

Connectors > Switch disconnector
E1.2

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲
ABB EcoSolutions
ABB EcoSolutionsYes
ABB Site Meeting Group Waste To Landfill TargetUL 2799 Zero Waste To Landfill Validation available
End Of Life Disassembling Instructions9AKK108468A2360
Environmental Product Declaration - EPD9AKK108468A1900
9AKK108468A3028
Extended Product LifetimeLifetime Extension Services are Offered
Recyclability Rate of the Product acc. to EN45555Design for Closing Resource Loops - Standard EN45555 - 76.4 %
Material Compliance
REACH Declaration9AKK108466A1425
RoHS Declaration9AKK108466A1424
RoHS InformationFollowing EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Conflict Minerals Reporting Template (CMRT)9AKK108467A5658
Toxic Substances Control Act - TSCA9AKK108467A8326
SCIP09eb16d7-7378-4966-8585-9bc58d1e0c39 Italy
Simplified SCIPc9c292db-d73c-4d18-a714-912583cb2e8c Germany
1981d11a-ca62-4867-bbfb-5d1f260f75cb France
da6d1731-0e3f-4409-b6cb-39b9e13bb03d Greece
4541ffe4-d7b8-4927-80c6-6cf1e91257a7 Germany
a8db3311-64bf-4e6f-a305-343c450017c9 Sweden
4aaa4d3a-11a9-49ff-92b6-adb08de9d1f8 Croatia
fdd7c1e2-b306-4c93-b455-c2587ac00372 Germany
ae8abb9a-7b18-4f0b-a50a-9c0ac3d2e3d9 Denmark
7c9ed58c-f6bc-417b-869f-b30d4c5a8c73 Germany
dac32fd9-2ece-476e-9055-9f4bc754087b Belgium
ea98db14-5fcd-42cb-aca8-dc5d73ddbc65 Hungary
dacd7301-c895-4b99-9251-661d1daee84e Spain
e0585882-e6b2-4461-b5f9-3e2e3a61f82f France
6cbd6b21-a383-4658-a15c-6c89763c8b29 Czech Republic
2217b82a-6b99-4ce3-8ff7-c50f3f8c3b2a Poland
815dfcc5-329e-46e7-8410-2c08cb05a36c Bulgaria
830e2d31-8bcb-4f6b-809b-f568cc6b0006 Poland
58b9f3b1-71cc-4ec8-9cc2-df949ff8b131 Portugal
b109ad36-d93b-46ab-a4e3-ee90e5ac9850 Germany
6e2b59f0-f108-4a11-8be6-d272bd64c5b5 Estonia
7434add4-286d-42d6-9ef4-ec25a060d9d5 Poland
cd8943f3-478d-48c4-a187-4d5bfa3d54c7 Belgium
09ad2b49-809f-4169-9590-6fb3dd0f0bdd Finland
5e4c42aa-d234-4a33-9ef1-38630a436b07 Hungary
220d414d-cb02-4849-892f-06efeb28fa5e Sweden
daa287b2-b384-4d24-83df-b1ffae84f68b Norway
6fcecd7d-23d4-4b59-af11-5e49c0445821 Netherlands
Environmental
Environmental Information9AKK108467A6707
Ordering
Order Code US and CanadaZ1BQ00B00000000000XX
EAN8015644772468
Minimum Order Quantity1 piece
Customs Tariff Number85362090
Dimensions
Product Net Width210 mm
Product Net Height296 mm
Product Net Depth / Length183 mm
Product Net Weight14 kg
Container Information
Package Level 1 Unitsbox 1 piece
Package Level 1 Width270 mm
Package Level 1 Height350 mm
Package Level 1 Depth / Length330 mm
Package Level 1 Gross Weight16 kg
Package Level 1 EAN8015644772468
Additional Information
Product Main TypeSACE Emax 2
Product NameSwitch Disconnector
Product TypeSwitch Disconnector
VersionF
CAD Dimensional Drawing1SDH001252R0001
Technical
Connecting Capacity1000 mm²
Current TypeAC
Electrical DurabilityUe =< 440 V 8000 cycle
Ue = 500 ... 690 V 6500 cycle
30 cycles per hour
Mechanical Durability20000 cycle
60 cycles per hour
Number of Poles3P
Power Loss78 W
Rated Current (In)1000 A
Rated Impulse Withstand Voltage (Uimp)12 kV
Rated Insulation Voltage (Ui)AC 1000 V
Rated Operational Voltage690 V AC
Rated Short-time Withstand Current Low Voltage (Icw)for 1 s 42 kA
for 3 s 24 kA
Rated Uninterrupted Current (Iu)1000 A
Rated Voltage (Ur)690 V
Recommended Screw DriverM12
Short-Circuit Performance LevelB
StandardsIEC
Sub-typeE1.2
Terminal Connection TypeFront
Terminal TypeBolt
Tightening Torque45 N·m
Certificates and Declarations
ATEX CertificateNo certification needed
CSA CertificateNo certification needed
CSA Certificate (Intrinsic Safe)No certification needed
Data Sheet, Technical Information1SDC200023D0209
Declaration of Conformity - CE9AKK106713A5546
UL CertificateNo certification needed
VDE CertificateNo certification needed
Mechanical Drawings1SDH000999R0101
Wiring Diagram1SDM000091R0001
Instructions and Manuals1SDH000999R0002
External Classifications and Standards
ETIM 9EC000216 - Switch disconnector (low voltage)
ETIM 10EC000216 - Switch disconnector (AC)
IDEA Granular Category Code (IGCC)5293 >> Switch disconnector
Object Classification CodeQ
UNSPSC39122233
WEEE Category5. Small Equipment (No External Dimension More Than 50 cm)
eClassV11.1 : 27371403

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
