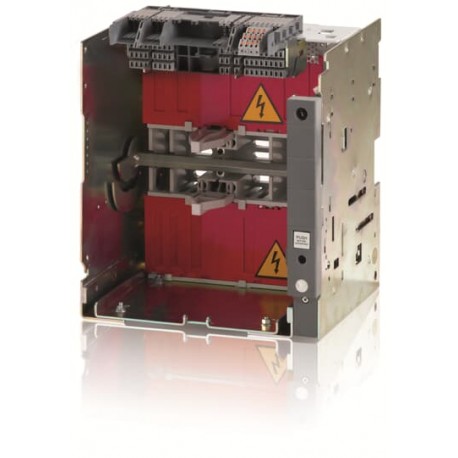

1SDA073908R1 ABB E1.2 W FP Iu 1600 4p HR HR
1SDA073908R1
073908
ABB
1 Pcs.
Automation > Chassis part power circuit breaker
E1.2
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
The 1SDA073908R1 ABB E1.2 W FP Iu 1600 4p HR HR functions as a withdrawable fixed part designed to support circuit breakers in industrial switchgear assemblies. This mounting base enables safe isolation and extraction of protective devices during servicing routines while maintaining structural integrity across multi-pole power distribution lines. Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- REACH Declaration: 9AKK108466A1425
- RoHS Declaration: 9AKK108466A1424
- RoHS Information: Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
- Conflict Minerals Reporting Template (CMRT): 9AKK108467A5658
- Toxic Substances Control Act - TSCA: 9AKK108467A8326
- Environmental Information: 9AKK108467A6707
- Order Code US and Canada: ZAC16A0XX
- EAN: 8015644778415
- Minimum Order Quantity: 1 piece
- Customs Tariff Number: 85389099
- Product Net Width: 348 mm
- Product Net Height: 363.5 mm
- Product Net Depth / Length: 271 mm
- Product Net Weight: 23 kg
- Package Level 1 Units: box 1 piece
- Package Level 1 Width: 375 mm
More info
▲| ABB EcoSolutions | |
|---|---|
| Material Compliance | |
| REACH Declaration | 9AKK108466A1425 |
| RoHS Declaration | 9AKK108466A1424 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108467A5658 |
| Toxic Substances Control Act - TSCA | 9AKK108467A8326 |
| Environmental | |
| Environmental Information | 9AKK108467A6707 |
| Ordering | |
| Order Code US and Canada | ZAC16A0XX |
| EAN | 8015644778415 |
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85389099 |
| Dimensions | |
| Product Net Width | 348 mm |
| Product Net Height | 363.5 mm |
| Product Net Depth / Length | 271 mm |
| Product Net Weight | 23 kg |
| Container Information | |
| Package Level 1 Units | box 1 piece |
| Package Level 1 Width | 375 mm |
| Package Level 1 Height | 330 mm |
| Package Level 1 Depth / Length | 388 mm |
| Package Level 1 Gross Weight | 26 kg |
| Package Level 1 EAN | 8015644778415 |
| Additional Information | |
| Product Main Type | SACE Emax 2 |
| Product Name | Fixed Part |
| Product Type | Fixed Part |
| Version | W FP |
| Technical | |
| Current Type | AC |
| Neutral Pole Current ([%Iu]) | 100 % |
| Number of Poles | 4P |
| Rated Current (In) | 1600 A |
| Rated Impulse Withstand Voltage (Uimp) | acc. to IEC 60947-2 12 kV |
| Rated Insulation Voltage (Ui) | AC 1000 V |
| Rated Operational Voltage | 690 V AC |
| 800 V AC | |
| Rated Uninterrupted Current (Iu) | 1600 A |
| Rated Voltage (Ur) | 800 V |
| Recommended Screw Driver | Main Circuit M10 |
| Standards | IEC |
| Sub-type | E1.2 |
| Terminal Connection Type | Rear flat Horizontal |
| Terminal Type | Bolt |
| Tightening Torque | 45 N·m |
| Certificates and Declarations | |
| ATEX Certificate | No certification needed |
| CSA Certificate | No certification needed |
| CSA Certificate (Intrinsic Safe) | No certification needed |
| Data Sheet, Technical Information | 1SDC200023D0209 |
| Declaration of Conformity - CE | 9AKK106713A5546 |
| UL Certificate | No certification needed |
| VDE Certificate | No certification needed |
| Instructions and Manuals | 1SDH000999R0820 |
| External Classifications and Standards | |
| ETIM 9 | EC002043 - Chassis part power circuit breaker |
| ETIM 10 | EC002043 - Chassis part power circuit breaker |
| IDEA Granular Category Code (IGCC) | 4932 >> 3 Pole Non-Interchangeable Trip Electronic Circuit Breakers |
| Object Classification Code | Q |
| UNSPSC | 39121616 |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| eClass | V11.1 : 27370422 |
