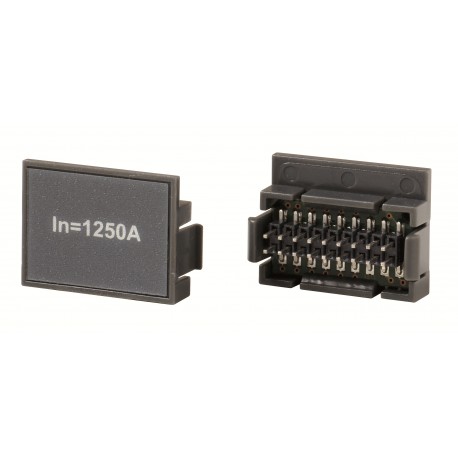

1SDA063898R1 ABB RATING PLUG EXTRACODIGO RC 1250A E1/3
1SDA063898R1
063898
ABB
1 Pcs.
Automation > Accessories/spare parts for low-voltage switch technology
Service Breakers
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
Configured for precise trip unit calibration, the 1SDA063898R1 ABB RATING PLUG EXTRACODIGO RC 1250A E1/3 determines the continuous current rating threshold for electronic trip units in air circuit breakers. Rating plugs are essential components in electrical distribution management, allowing engineers to adapt high-capacity circuit breakers to specific load requirements without replacing the entire trip mechanism. Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- REACH Declaration: 9AKK108466A1425
- RoHS Declaration: 9AKK108466A1424
- RoHS Information: Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
- Conflict Minerals Reporting Template (CMRT): Document availability on demand
- EAN: 8015644667559
- Minimum Order Quantity: 1 piece
- Customs Tariff Number: 85389099
- Product Net Weight: 1 kg
- Package Level 1 Units: 1 piece
- Product Main Type: Accessories for Emax
- Product Name: Accessory
- Product Type: Accessory
- Suitable For: E1, E2, E3
- Suitable for Product Class: SACE Emax
- Configuration Type: Mounted only
- Standards: IEC
More info
▲| Material Compliance | |
|---|---|
| REACH Declaration | 9AKK108466A1425 |
| RoHS Declaration | 9AKK108466A1424 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| Conflict Minerals Reporting Template (CMRT) | Document availability on demand |
| Ordering | |
| EAN | 8015644667559 |
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85389099 |
| Dimensions | |
| Product Net Weight | 1 kg |
| Container Information | |
| Package Level 1 Units | 1 piece |
| Additional Information | |
| Product Main Type | Accessories for Emax |
| Product Name | Accessory |
| Product Type | Accessory |
| Suitable For | E1, E2, E3 |
| Suitable for Product Class | SACE Emax |
| Technical | |
| Configuration Type | Mounted only |
| Standards | IEC |
| Certificates and Declarations | |
| Data Sheet, Technical Information | 1SDC200006D0209 |
| Declaration of Conformity - CE | 1SDL000165R0013 |
| 1SDL000165R0014 | |
| 1SDL000165R0015 | |
| Instructions and Manuals | 1SDC200006D0209 |
| External Classifications and Standards | |
| Object Classification Code | Q |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
