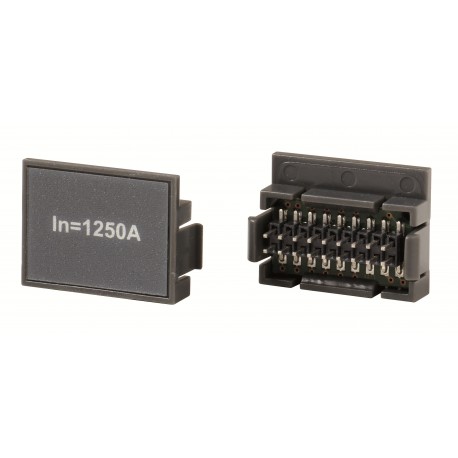

1SDA063892R1 ABB RATING PLUG REPLACEMENT In1250A RC E1/3
1SDA063892R1
063892
ABB
1 Pcs.
Automation > Accessories/spare parts for low-voltage switch technology
Service Breakers
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
Serving to calibrate electronic trip units, the ABB RATING PLUG REPLACEMENT In1250A RC E1/3 (1SDA063892R1) defines the continuous current rating threshold for compatible air circuit breakers. Rating plugs allow field adjustment of protection parameters without replacing the entire trip unit assembly.
Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- REACH Declaration: 9AKK108466A1425
- RoHS Declaration: 9AKK108466A1424
- RoHS Information: Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
- Conflict Minerals Reporting Template (CMRT): Document availability on demand
- EAN: 8015644667399
- Minimum Order Quantity: 1 piece
- Customs Tariff Number: 85389099
- Product Net Weight: 1 kg
- Package Level 1 Units: 1 piece
- Product Main Type: Accessories for Emax
- Product Name: Accessory
- Product Type: Accessory
- Suitable For: E1, E2, E3 Suitable for Product Class: SACE Emax
- Configuration Type: Loose or configurable
- Rated Current (I n ): 1250 A
More info
▲| Material Compliance | |
|---|---|
| REACH Declaration | 9AKK108466A1425 |
| RoHS Declaration | 9AKK108466A1424 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| Conflict Minerals Reporting Template (CMRT) | Document availability on demand |
| Ordering | |
| EAN | 8015644667399 |
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85389099 |
| Dimensions | |
| Product Net Weight | 1 kg |
| Container Information | |
| Package Level 1 Units | 1 piece |
| Additional Information | |
| Product Main Type | Accessories for Emax |
| Product Name | Accessory |
| Product Type | Accessory |
| Suitable For | E1, E2, E3 |
| Suitable for Product Class | SACE Emax |
| Technical | |
| Configuration Type | Loose or configurable |
| Rated Current (In) | 1250 A |
| Standards | IEC |
| Certificates and Declarations | |
| Data Sheet, Technical Information | 1SDC200006D0209 |
| Declaration of Conformity - CE | 1SDL000165R0013 |
| 1SDL000165R0014 | |
| 1SDL000165R0015 | |
| Instructions and Manuals | 1SDH000460R0502 |
| 1SDH000520R0001 | |
| 1SDC001007D0203 | |
| External Classifications and Standards | |
| Object Classification Code | Q |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
