View larger
Images are for illustrative purposes only. Please refer to data sheet for details

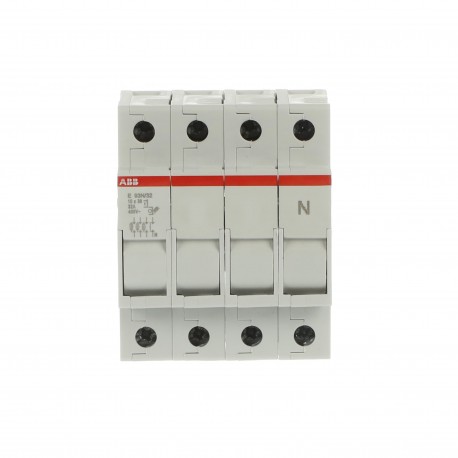

2CSM204733R1801 ABB E 93N/32 Fuse holder
2CSM204733R1801
204733
ABB
1 Pcs.
E 93N/32 Fuse holder
Fuse holder base E93N/32 32A 3p+N
E 93N/32 Fuse switch disconnector
Automation > Holder for cylindrical fuse
E90 E930 E9F
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲| Technical | |
|---|---|
| Number of Protected Poles | 3 |
| Number of Poles | 4P |
| Position of Neutral Terminals | Right |
| Tightening Torque | 2...2.5 N·m |
| Utilization Category | Connecting and disconnecting under no-load conditions - occasional actuation (AC-20B) |
| Switching of mixed resistive and inductive loads, including moderate overloads - occasional actuation (AC-22B) | |
| Lock Type | Padlockable When Open |
| Sealing Type | Sealing Wire |
| Material of Conductor | Copper |
| Options Provided | No |
| Recommended Screw Driver | Pozidriv 2 |
| Shock and Vibration Withstand acc. to IEC 61373 | Category 1, Class B |
| Connecting Capacity | Rigid 2x5 mm² |
| Stranded 2x2-5 mm² | |
| Fuse Size | 10x38 mm |
| Operating Humidity (RHamb) | max. 90% with temp. +20 °C |
| 50% with max. temp. +40 °C | |
| Rated Operational Current AC (Ie) | 32 A |
| Electrical | |
| Rated Voltage (Ur) | acc. To IEC 400 V |
| acc. To UL 690 V | |
| Rated Operational Voltage | AC-20B 690 V |
| AC-22B 400 V | |
| Rated Insulation Voltage (Ui) | 1 kV |
| Rated Frequency (f) | 50/60 Hz |
| Power Loss | Total 12 W |
| at Rated Operating Conditions per Pole 3 W | |
| Technical UL/CSA | |
| Connecting Capacity UL/CSA | Rigid 2x10 AWG |
| Stranded 2x14-10 AWG | |
| Material Compliance | |
| RoHS Declaration | 9AKK106713A5623 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| RoHS Date | 20140101 |
| REACH Declaration | 9AKK108467A9482 |
| REACH Information | True - contains substances > 0.1 mass percentage |
| REACH Date | 20240429 |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108468A3363 |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| WEEE B2C / B2B | Business To Consumer |
| Environmental | |
| Ambient Air Temperature | Operation -5...+40 °C |
| Storage -25...+70 °C | |
| Degree of Protection | IP20 |
| Maximum Operating Altitude Permissible | 2000 m |
| Resistance to Vibrations | 1 mm 2 … 13 Hz |
| Resistance to Shock acc. to IEC 60068-2-27 | 15g 18 shocks 13 ms |
| Environmental Information | See RoHS Information |
| Dimensions | |
| Width in Number of Modular Spacings | 4 |
| Product Net Width | 70 mm |
| Product Net Height | 85 mm |
| Product Net Depth / Length | 64 mm |
| Product Net Weight | 252 g |
| Built-In Depth (t2) | 64 mm |
| Ordering | |
| Package Level 1 Units | box 1 piece |
| Package Level 1 Gross Weight | 0.255 kg |
| E-Number (Norway) | 1425443 |
| Certificates and Declarations | |
| BV Certificate | 9AKK108467A0330 |
| CCC Certificate | 9AKK108467A0340 |
| Declaration of Conformity - CE | 9AKK106713A5623 |
| IMQ Certificate | 9AKK108467A0324 |
| KRS Certificate | 9AKK108467A0337 |
| LR Certificate | 9AKK107991A7313 |
| UL Certificate | 9AKK107992A1039 |
| Installation | |
| Mounting Type | DIN-Rail |
| Popular Downloads | |
| Data Sheet, Technical Information | 2CSC444002B0204 |
| External Classifications and Standards | |
| ETIM 9 | EC002705 - Holder for cylindrical fuse |
| ETIM 10 | EC002705 - Holder for cylindrical fuse |
| UNSPSC | 39122233 |
| eClass | V11.0 : 27142121 |
| IDEA Granular Category Code (IGCC) | 5291 >> Fuse switch disconnector |
| Object Classification Code | F |
| Standards | IEC 60947-3 |
| Certification Agency | IMQ |
| BV | |
| Korean register | |
| CCC | |
| EAC | |
| Standardization Body | UL |
| Feature Name | Feature Value |
|---|---|
| Mounting method (EF000003) | DIN rail |
| For fuse size (EF008316) | 10x38 mm |
| Number of poles (EF001391) | 4 |
| Concurrently switching neutral conductor (EF005997) | Yes |
| Lockable (EF000113) | Yes |
| With optical defect indication (EF008181) | No |
| Width in number of modular spacings (EF002950) | 4 |
| Built-in depth (EF000218) | 64 mm |
| Degree of protection (IP) (EF005474) | IP20 |
