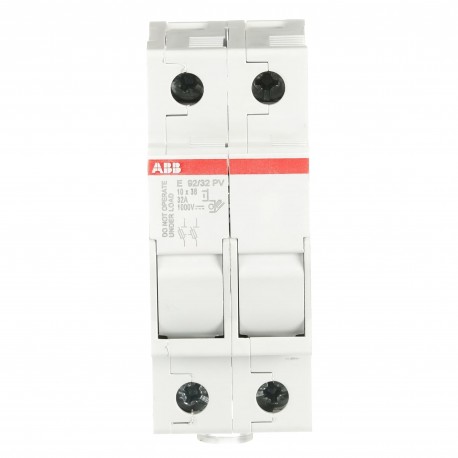

2CSM204703R1801 ABB E 92/32 PV Fuse holder
2CSM204703R1801
204703
ABB
1 Pcs.
E 92/32 PV Fuse holder
Fuse holder base E92/32PV 32A 2p
E 92/32 PV Fuse disconnector
Automation > Holder for cylindrical fuse
E90 E930 E9F
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲| Technical | |
|---|---|
| Number of Protected Poles | 2 |
| Number of Poles | 2P |
| Tightening Torque | 2-2.5 N·m |
| Utilization Category | Connecting and disconnecting under no-load conditions - occasional actuation (DC-20B) |
| Fuse Type | gPV |
| Lock Type | Padlockable |
| Sealing Type | Sealing Wire |
| Material of Conductor | Copper |
| Options Provided | No |
| Recommended Screw Driver | Pozidriv 2 |
| Remarks | For use with CU only 60°C, 75°C or 90°C wire |
| Shock and Vibration Withstand acc. to IEC 61373 | Category 1, Class B |
| Connecting Capacity | Stranded 1.5…16 mm² |
| Rigid 1.5…25 mm² | |
| Fuse Size | 10x38 mm |
| Operating Humidity (RHamb) | max. 90% at +20 °C |
| 50% at max. +40 °C | |
| Electrical | |
| Rated Voltage (Ur) | 1000 V |
| Rated Operational Voltage | DC-20B 1000 V DC |
| Rated Insulation Voltage (Ui) | 1 kV |
| Rated Current (In) | 32 A |
| Power Loss | Total 6 W |
| at Rated Operating Conditions per Pole 3 W | |
| Technical UL/CSA | |
| Connecting Capacity UL/CSA | Stranded 16…3 AWG |
| Rigid 16...10 AWG | |
| Tightening Torque UL/CSA | 18-22 in·lb |
| Material Compliance | |
| RoHS Declaration | 2CSC444003D2701 |
| RoHS Information | Following EU Directive 2011/65/EU |
| RoHS Date | 20140101 |
| REACH Declaration | 9AKK108467A9482 |
| REACH Information | True - contains substances > 0.1 mass percentage |
| REACH Date | 20240429 |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108468A3363 |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| WEEE B2C / B2B | Business To Consumer |
| Environmental | |
| Ambient Air Temperature | Operation -5...+40 °C |
| Storage -25...+70 °C | |
| Degree of Protection | IP20 |
| Maximum Operating Altitude Permissible | 2000 m |
| Resistance to Vibrations | 1 mm 2 … 13 Hz |
| Resistance to Shock acc. to IEC 60068-2-27 | 15g 18 shocks 11 ms |
| Environmental Information | See RoHS Information |
| Dimensions | |
| Width in Number of Modular Spacings | 2 |
| Product Net Width | 35 mm |
| Product Net Height | 85 mm |
| Product Net Depth / Length | 64 mm |
| Product Net Weight | 122 g |
| Built-In Depth (t2) | 64 mm |
| Ordering | |
| Package Level 1 Units | box 3 piece |
| Package Level 1 Gross Weight | 0.369 kg |
| E-Number (Sweden) | 2318054 |
| Certificates and Declarations | |
| Declaration of Conformity - CE | 2CSC444003D2701 |
| UL Certificate | 9AKK107992A1036 |
| Installation | |
| Mounting Type | DIN-Rail |
| Popular Downloads | |
| Data Sheet, Technical Information | 2CSC444002B0204 |
| External Classifications and Standards | |
| ETIM 9 | EC002705 - Holder for cylindrical fuse |
| ETIM 10 | EC002705 - Holder for cylindrical fuse |
| UNSPSC | 39122233 |
| eClass | V11.0 : 27142121 |
| IDEA Granular Category Code (IGCC) | 5291 >> Fuse switch disconnector |
| Object Classification Code | F |
| Standards | IEC 60947-3 |
| UL 4248-19 | |
| Certification Agency | CCC |
| EAC | |
| Standardization Body | UL |
| Feature Name | Feature Value |
|---|---|
| Nominal voltage (EF000002) | 1000 V |
| Mounting method (EF000003) | DIN rail |
| For fuse size (EF008316) | 10x38 mm |
| Number of poles (EF001391) | 2 |
| Concurrently switching neutral conductor (EF005997) | Yes |
| Lockable (EF000113) | Yes |
| With optical defect indication (EF008181) | No |
| Width in number of modular spacings (EF002950) | 2 |
| Built-in depth (EF000218) | 64 mm |
| Degree of protection (IP) (EF005474) | IP20 |
