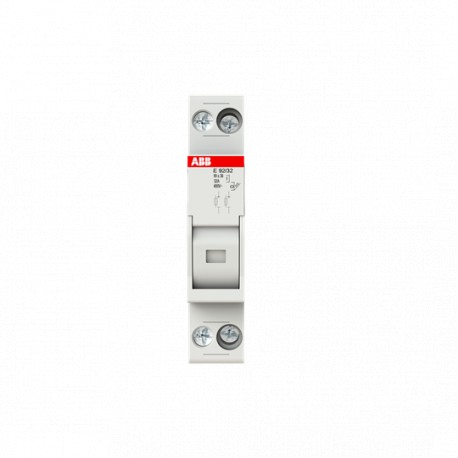

2CSM200883R1801 ABB E 92/32 Fuse holder
2CSM200883R1801
200883
ABB
1 Pcs.
Automation > Holder for cylindrical fuse
E90 E930 E9F
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
The ABB 2CSM200883R1801 E 92/32 fuse holder is designed for safe manual switching and overcurrent protection using standard cylindrical fuses. Panel builders integrate these modular units into electrical distribution systems to ensure reliable circuit isolation under no-load conditions. Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Number of Protected Poles: 2
- Number of Poles: 2P
- Tightening Torque: 2...2.5 N·m
- Utilization Category: Connecting and disconnecting under no-load conditions - occasional actuation (AC-20B)
- Lock Type: Padlockable When Open
- Sealing Type: Sealing Wire
- Material of Conductor: Copper
- Options Provided: No
- Recommended Screw Driver: Pozidriv 2
- Shock and Vibration Withstand acc. to IEC 61373: Category 1, Class B
- Connecting Capacity: Rigid 2x5 mm²
- Fuse Size: 10x38 mm
- Operating Humidity (RH amb ): max. 90% with temp. +20 °C
- Rated Operational Current AC (I e ): 32 A
- Rated Voltage (U r ): acc. To IEC 400 V
- Rated Operational Voltage: AC-20B 690 V
More info
▲| Technical | |
|---|---|
| Number of Protected Poles | 2 |
| Number of Poles | 2P |
| Tightening Torque | 2...2.5 N·m |
| Utilization Category | Connecting and disconnecting under no-load conditions - occasional actuation (AC-20B) |
| Switching of mixed resistive and inductive loads, including moderate overloads - occasional actuation (AC-22B) | |
| Lock Type | Padlockable When Open |
| Sealing Type | Sealing Wire |
| Material of Conductor | Copper |
| Options Provided | No |
| Recommended Screw Driver | Pozidriv 2 |
| Shock and Vibration Withstand acc. to IEC 61373 | Category 1, Class B |
| Connecting Capacity | Rigid 2x5 mm² |
| Stranded 2x2-5 mm² | |
| Fuse Size | 10x38 mm |
| Operating Humidity (RHamb) | max. 90% with temp. +20 °C |
| 50% with max. temp. +40 °C | |
| Rated Operational Current AC (Ie) | 32 A |
| Electrical | |
| Rated Voltage (Ur) | acc. To IEC 400 V |
| acc. To UL 690 V | |
| Rated Operational Voltage | AC-20B 690 V |
| AC-22B 400 V | |
| Rated Insulation Voltage (Ui) | 1 kV |
| Rated Frequency (f) | 50/60 Hz |
| Power Loss | at Rated Operating Conditions per Pole 3 W |
| Technical UL/CSA | |
| Connecting Capacity UL/CSA | Rigid 2x10 AWG |
| Stranded 2x14-10 AWG | |
| Material Compliance | |
| RoHS Declaration | 9AKK106713A5623 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| RoHS Date | 41640 |
| REACH Declaration | 9AKK108467A9482 |
| REACH Information | True - contains substances > 0.1 mass percentage |
| REACH Date | 20240429 |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108468A3363 |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| WEEE B2C / B2B | Business To Consumer |
| Environmental | |
| Ambient Air Temperature | Operation -5...+40 °C |
| Storage -25...+70 °C | |
| Degree of Protection | IP20 |
| Maximum Operating Altitude Permissible | 2000 m |
| Resistance to Vibrations | 1 mm 2 … 13 Hz |
| Resistance to Shock acc. to IEC 60068-2-27 | 15g 18 shocks 13 ms |
| Environmental Information | See RoHS Information |
| Dimensions | |
| Width in Number of Modular Spacings | 2 |
| Product Net Width | 35 mm |
| Product Net Height | 85 mm |
| Product Net Depth / Length | 64 mm |
| Product Net Weight | 247 g |
| Built-In Depth (t2) | 64 mm |
| Ordering | |
| Package Level 1 Units | box 3 piece |
| Package Level 1 Gross Weight | 0.267 kg |
| E-Number (Finland) | 3017005 |
| E-Number (Norway) | 1425441 |
| E-Number (Sweden) | 2318051 |
| Certificates and Declarations | |
| BV Certificate | 9AKK108467A0330 |
| CCC Certificate | 9AKK108467A0340 |
| Declaration of Conformity - CE | 9AKK106713A5623 |
| IMQ Certificate | 9AKK108467A0324 |
| KRS Certificate | 9AKK108467A0337 |
| LR Certificate | 9AKK107991A7313 |
| UL Certificate | 9AKK107992A1039 |
| Installation | |
| Mounting Type | DIN-Rail |
| Popular Downloads | |
| Data Sheet, Technical Information | 2CSC444002B0204 |
| External Classifications and Standards | |
| ETIM 9 | EC002705 - Holder for cylindrical fuse |
| ETIM 10 | EC002705 - Holder for cylindrical fuse |
| UNSPSC | 39122233 |
| eClass | V11.0 : 27142121 |
| IDEA Granular Category Code (IGCC) | 5291 >> Fuse switch disconnector |
| Object Classification Code | F |
| Standards | IEC 60947-3 |
| Certification Agency | IMQ, BV, Korean register, CCC, EAC |
