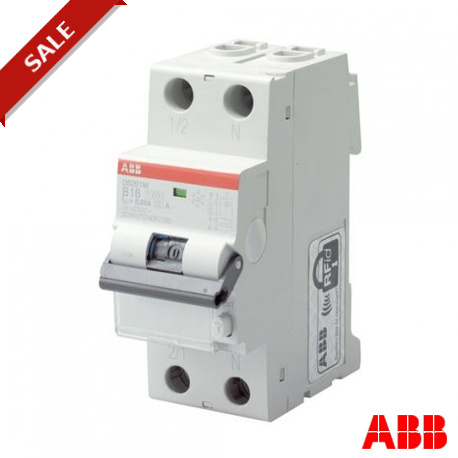

DS201 M C16 AC30 - RCBO

Automation > Earth leakage circuit breaker
DS200

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Designed to maintain electrical system integrity, the Abb DS201MC16AC30 residual current circuit breaker with overcurrent protection offers dependable isolation against overloads and earth leakage faults. These dual-purpose components protect sensitive circuitry in industrial panels by combining thermal-magnetic and differential current tripping mechanisms. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Standards: IEC 61009-1 IEC 61009-2-1 EN 61009-1 EN 61009-2-1
  • Type of Residual Current: AC type
  • Rated Residual Current: 30 mA
  • Tripping Characteristic: C
  • Rated Current (I n ): 16 A
  • Number of Poles: 2
  • Number of Protected Poles: 1
  • Rated Short-Circuit Capacity (I cn ): (230 / 400 V AC) 10 kA
  • Position of Neutral Terminals: Right
  • Power Loss: 3.4 W
  • RoHS Status: Following EU Directive 2002/95/EC August 18, 2005 and amendment
  • RoHS Information: 2CSC422002K0201
  • Product Net Width: 0.035 m
  • Product Net Height: 0.085 m
  • Product Net Depth: 0.069 m
  • Product Net Weight: 0.239 kg

More info

▲

The DS201 series RCBO is a 1P+N in two-modules device for the protection of end user single-phase circuits against overload and short-circuit currents; protection against the effects of sinusoidal alternating earth fault currents; protection against indirect contacts and additional protection against direct contacts (with sensitivity = 30 mA).

Ordering

  • EAN:
    8012542105657
  • Minimum Order Quantity:
    1 piece
  • Customs Tariff Number:
    85363030

Dimensions

  • Product Net Width:
    0.035m
  • Product Net Height:
    0.085m
  • Product Net Depth:
    0.069m
  • Product Net Weight:
    0.239kg

Container Information

  • Package Level 1 Units:
    5 piece
  • Package Level 1 Width:
    0.253 m
  • Package Level 1 Height:
    0.088 m
  • Package Level 1 Length:
    0.108 m
  • Package Level 1 Gross Weight:
    1.446 kg
  • Package Level 1 EAN:
    8012542105664

Technical

  • Standards:
    IEC 61009-1
    IEC 61009-2-1
    EN 61009-1
    EN 61009-2-1
  • Type of Residual Current:
    AC type
  • Rated Residual Current:
    30 mA
  • Tripping Characteristic:
    C
  • Rated Current (In):
    16 A
  • Number of Poles:
    2
  • Number of Protected Poles:
    1
  • Rated Short-Circuit Capacity (Icn):
    (230 / 400 V AC) 10 kA
  • Position of Neutral Terminals:
    Right
  • Power Loss:
    3.4 W

Environmental

  • RoHS Status:
    Following EU Directive 2002/95/EC August 18, 2005 and amendment

Certificates and Declarations (Document Number)

Classifications

  • Object Classification Code:
    Q
  • ETIM 4:
    EC000905 - Earth leakage circuit breaker
  • ETIM 5:
    EC000905 - Earth leakage circuit breaker

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
