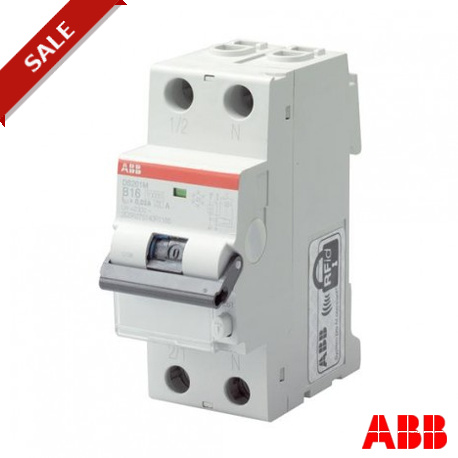

ABB DS201LC16AC30 DS201LC16AC30 2CSR245040R1164 ABB DS201 L C16 AC30 RCBO View larger
Images are for illustrative purposes only. Please refer to data sheet for details

DS201LC16AC30 2CSR245040R1164 ABB DS201 L C16 AC30 RCBO

DS201LC16AC30

2CSR245040R1164

ABB

5 Pcs.

DS201 L C16 AC30 - RCBO

Automation > Earth leakage circuit breaker
DS200

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

An Abb DS201LC16AC30 RCBO functions as a combined circuit breaker and residual current device, engineered to protect electrical wiring from overloads and earth leakage. These modular units are standard in residential and commercial distribution panels for maintaining electrical safety. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Standards: IEC 61009-1 IEC 61009-2-1 EN 61009-1 EN 61009-2-1
  • Type of Residual Current: AC type
  • Rated Residual Current: 30 mA
  • Tripping Characteristic: C
  • Rated Current (I n ): 16 A
  • Number of Poles: 2
  • Number of Protected Poles: 1
  • Rated Short-Circuit Capacity (I cn ): (230 / 400 V AC) 4.5 kA
  • Position of Neutral Terminals: Right
  • Power Loss: 3.4 W
  • RoHS Status: Following EU Directive 2002/95/EC August 18, 2005 and amendment
  • RoHS Information: 2CSC422002K0201
  • Product Net Width: 0.035 m
  • Product Net Height: 0.085 m
  • Product Net Depth: 0.069 m
  • Product Net Weight: 0.239 kg

More info

▲

The DS201 series RCBO is a 1P+N in two-modules device for the protection of end user single-phase circuits against overload and short-circuit currents; protection against the effects of sinusoidal alternating earth fault currents; protection against indirect contacts and additional protection against direct contacts (with sensitivity = 30 mA).
