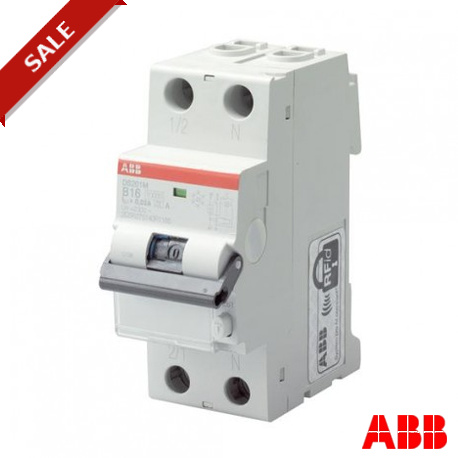

DS201 L C16 A30 - RCBO

Automation > Earth leakage circuit breaker
DS200

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

A residual current circuit breaker with overcurrent protection, recognized by part number DS201LC16A30, provides dual-action defense against earth faults and circuit overloads in power distribution systems. These components are commonly deployed within distribution boards to protect personnel from electric shock and to prevent equipment damage from excessive currents. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Standards: IEC 61009-1 IEC 61009-2-1 EN 61009-1 EN 61009-2-1
  • Type of Residual Current: A type
  • Rated Residual Current: 30 mA
  • Tripping Characteristic: C
  • Rated Current (I n ): 16 A
  • Number of Poles: 2
  • Number of Protected Poles: 1
  • Rated Short-Circuit Capacity (I cn ): (230 / 400 V AC) 4.5 kA
  • Position of Neutral Terminals: Right
  • Power Loss: 3.4 W
  • RoHS Status: Following EU Directive 2002/95/EC August 18, 2005 and amendment
  • RoHS Information: 2CSC422002K0201
  • Product Net Width: 0.035 m
  • Product Net Height: 0.085 m
  • Product Net Depth: 0.069 m
  • Product Net Weight: 0.239 kg

More info

▲

The DS201 series RCBO is a 1P+N in two-modules device for the protection of end user single-phase circuits against overload and short-circuit currents; protection against the effects of sinusoidal alternating and direct pulsating earth fault currents; protection against indirect contacts and additional protection against direct contacts (with sensitivity = 30 mA).
