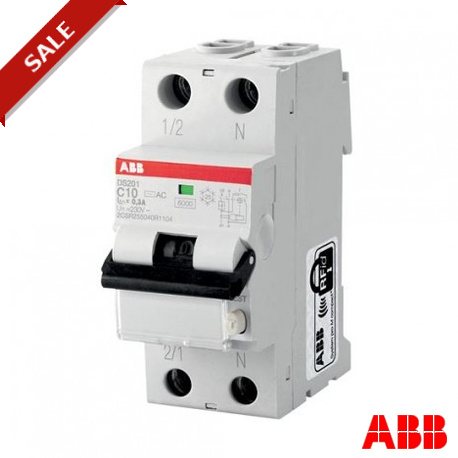

DS201C4A300 2CSR255140R3044 ABB DS201 C4 A300 RCBO
DS201C4A300
2CSR255140R3044
ABB
1 Pcs.
Automation > Earth leakage circuit breaker
DS200
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
Main electrical distribution systems utilize protective devices like the Abb DS201C4A300 residual current circuit breaker to manage low-current branch circuits against overloads and ground faults. This ensures continuous safety across commercial and light industrial setups. Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Standards: IEC 61009-1 IEC 61009-2-1 EN 61009-1 EN 61009-2-1
- Type of Residual Current: A type
- Rated Residual Current: 300 mA
- Tripping Characteristic: C
- Rated Current (I n ): 4 A
- Number of Poles: 2
- Number of Protected Poles: 1
- Rated Short-Circuit Capacity (I cn ): (230 / 400 V AC) 6 kA
- Position of Neutral Terminals: Right
- Power Loss: 2.5 W
- RoHSStatus: Following EU Directive 2002/95/EC August 18, 2005 and amendment
- RoHS Information: 2CSC422002K0201
- Product Net Width: 0.035 m
- Product Net Height: 0.085 m
- Product Net Depth: 0.069 m
- Product Net Weight: 0.239 kg
More info
▲The DS201 series RCBO is a 1P+N in two-modules device for the protection of end user single-phase circuits against overload and short-circuit currents; protection against the effects of sinusoidal alternating and direct pulsating earth fault currents; protection against indirect contacts and additional protection against direct contacts (with sensitivity = 30 mA).
Ordering
- EAN:
- 8012542124252
- Minimum Order Quantity:
- 1 piece
- Customs Tariff Number:
- 85363010
Dimensions
- Product Net Width:
- 0.035m
- Product Net Height:
- 0.085m
- Product Net Depth:
- 0.069m
- Product Net Weight:
- 0.239kg
Container Information
- Package Level 1 Units:
- 5 piece
- Package Level 1 Width:
- 0.253 m
- Package Level 1 Height:
- 0.088 m
- Package Level 1 Length:
- 0.108 m
- Package Level 1 Gross Weight:
- 1.446 kg
- Package Level 1 EAN:
- 8012542124269
Technical
- Standards:
- IEC 61009-1
IEC 61009-2-1
EN 61009-1
EN 61009-2-1
- Type of Residual Current:
- A type
- Rated Residual Current:
- 300 mA
- Tripping Characteristic:
- C
- Rated Current (In):
- 4 A
- Number of Poles:
- 2
- Number of Protected Poles:
- 1
- Rated Short-Circuit Capacity (Icn):
- (230 / 400 V AC) 6 kA
- Position of Neutral Terminals:
- Right
- Power Loss:
- 2.5 W
Environmental
- RoHS Status:
- Following EU Directive 2002/95/EC August 18, 2005 and amendment
Certificates and Declarations (Document Number)
- Declaration of Conformity - CE:
- 2CSC421001D2702
- RoHS Information:
- 2CSC422002K0201
Classifications
- Object Classification Code:
- Q
- ETIM 4:
- EC000905 - Earth leakage circuit breaker
- ETIM 5:
- EC000905 - Earth leakage circuit breaker
