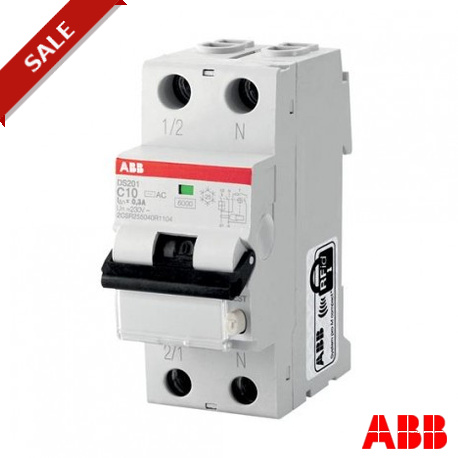

ABB DS201C2A300 DS201C2A300 2CSR255140R3024 ABB DS201 C2 A300 RCBO View larger
Images are for illustrative purposes only. Please refer to data sheet for details

DS201C2A300 2CSR255140R3024 ABB DS201 C2 A300 RCBO

DS201C2A300

2CSR255140R3024

ABB

1 Pcs.

DS201 C2 A300 - RCBO

Automation > Earth leakage circuit breaker
DS200

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

The DS201 series RCBO is a 1P+N in two-modules device for the protection of end user single-phase circuits against overload and short-circuit currents; protection against the effects of sinusoidal alternating and direct pulsating earth fault currents; protection against indirect contacts and additional protection against direct contacts (with sensitivity = 30 mA).

Ordering

  • EAN:
    8012542124153
  • Minimum Order Quantity:
    1 piece
  • Customs Tariff Number:
    85363010

Dimensions

  • Product Net Width:
    0.035m
  • Product Net Height:
    0.085m
  • Product Net Depth:
    0.069m
  • Product Net Weight:
    0.239kg

Container Information

  • Package Level 1 Units:
    5 piece
  • Package Level 1 Width:
    0.253 m
  • Package Level 1 Height:
    0.088 m
  • Package Level 1 Length:
    0.108 m
  • Package Level 1 Gross Weight:
    1.446 kg
  • Package Level 1 EAN:
    8012542124160

Technical

  • Standards:
    IEC 61009-1
    IEC 61009-2-1
    EN 61009-1
    EN 61009-2-1
  • Type of Residual Current:
    A type
  • Rated Residual Current:
    300 mA
  • Tripping Characteristic:
    C
  • Rated Current (In):
    2 A
  • Number of Poles:
    2
  • Number of Protected Poles:
    1
  • Rated Short-Circuit Capacity (Icn):
    (230 / 400 V AC) 6 kA
  • Position of Neutral Terminals:
    Right
  • Power Loss:
    1.6 W

Environmental

  • RoHS Status:
    Following EU Directive 2002/95/EC August 18, 2005 and amendment

Certificates and Declarations (Document Number)

Classifications

  • Object Classification Code:
    Q
  • ETIM 4:
    EC000905 - Earth leakage circuit breaker
  • ETIM 5:
    EC000905 - Earth leakage circuit breaker
