View larger
Images are for illustrative purposes only. Please refer to data sheet for details

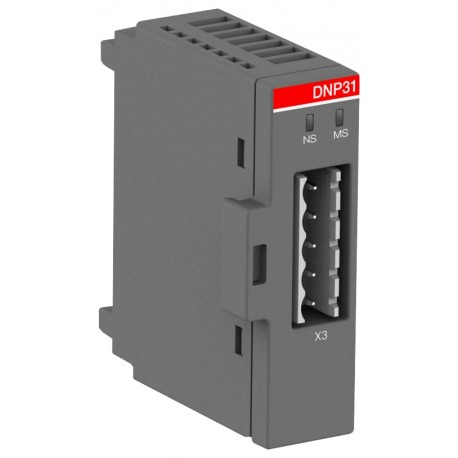

1SAJ231000R0001 ABB DNP31.0 DeviceNet Interface
1SAJ231000R0001
231000
ABB
1 Pcs.
DNP31.0 DeviceNet Interface
DNP31 MOD. COMMUNICATES. PROFINET UMC100.3
Automation > Fieldbus, decentr. periphery - communication module
UMC and accessories
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲| Ordering | |
|---|---|
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85176200 |
| Product Main Type | DNP31.0 |
| Popular Downloads | |
| Data Sheet, Technical Information | 2CDC193005D0201 |
| Instructions and Manuals | 1SAC200305M0001 |
| CAD Dimensional Drawing | 2CDC001079B0201 |
| EPLAN Data | 9AAC181492_EPLAN |
| Dimensions | |
| Product Net Width | 22.5 mm |
| Product Net Depth / Length | 54 mm |
| Product Net Height | 64 mm |
| Product Net Weight | 39 g |
| Technical | |
| Connecting Capacity | 1x 0.2-2.5 mm² |
| Mounting Type | UMC100.3/Single Mounting |
| Mounting on DIN Rail | With Single Mounting KIt |
| Power Loss | Approximately 1 W |
| Rated Control Supply Voltage (Us) | 24 V DC |
| Recommended Screw Driver | Pozidriv 1 |
| Standards | CAN/CSA C22.2 No.142 |
| IEC/EN 61131-2 | |
| UL 508 | |
| Suitable For | SMK3.0 |
| UMC100.3 | |
| Suitable for Product Class | Universal Motor Controllers |
| Universal Motor Controllers Accessories | |
| Terminal Type | Screw Terminals |
| Tightening Torque | Auxiliary Circuit 0.5 N·m |
| Control Circuit 0.5 N·m | |
| Wire Stripping Length | 7 mm |
| Technical UL/CSA | |
| Connecting Capacity UL/CSA | Flexible with Ferrule 1x 28-12 AWG |
| Rigid 1x 28-12 AWG | |
| Environmental | |
| Degree of Protection | IP20 |
| Material Compliance | |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108467A5658 |
| RoHS Declaration | 1SVD981004 |
| RoHS Information | Following EU Directive 2011/65/EU |
| WEEE B2C / B2B | Business To Business |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| Certificates and Declarations | |
| ABS Certificate | 9AKK106930A7739 |
| ATEX Certificate | Not available |
| cULus Certificate | cULus61010_20150911-E179811 |
| Declaration of Conformity - CE | 1SVD981004 |
| Container Information | |
| Package Level 1 Units | box 1 piece |
| Package Level 1 Width | 112 mm |
| Package Level 1 Depth / Length | 26 mm |
| Package Level 1 Height | 67 mm |
| Package Level 1 Gross Weight | 45 g |
| Package Level 1 EAN | 4013614496974 |
| External Classifications and Standards | |
| eClass | V11.0 : 27242608 |
| ETIM 6 | EC001604 - Fieldbus, decentr. periphery - communication module |
| ETIM 7 | EC001604 - Fieldbus, decentr. periphery - communication module |
| ETIM 8 | EC001604 - Fieldbus, decentr. periphery - communication module |
| ETIM 9 | EC001604 - Fieldbus, decentr. periphery - communication module |
| IDEA Granular Category Code (IGCC) | 3587 >> Fieldbus, decentr. periphery - communication module |
| Object Classification Code | K |
| UNSPSC | 32151802 |
