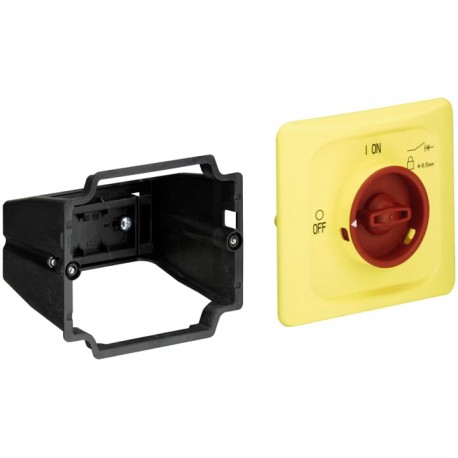

1SAM201912R1011 ABB DMS132-Y Door Mounting Kit
1SAM201912R1011
201912
ABB
1 Pcs.
Automation > Accessories/spare parts for low-voltage switch technology
Mx116 and Mx132
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
Engineered for external enclosure operation, this Abb 1SAM201912R1011 ABB DMS132-Y Door Mounting Kit extends rotary handle mechanisms through cabinet panels while preserving environmental sealing. Door-coupling kits allow operators to safely actuate internal motor protection switches and disconnects without opening protective enclosures.
Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Minimum Order Quantity: 1 piece
- Customs Tariff Number: 85389099
- Data Sheet, Technical Information: 1SBC100214C0202
- Instructions and Manuals: 2CDC131029M6804
- CAD Dimensional Drawing: 2CDC001079B0201
- Dimension Diagram: 1SAM200440F0001
- Product Net Width: 137 mm
- Product Net Height: 121 mm
- Product Net Depth / Length: 120 mm
- Product Net Weight: 0.17 kg
- Degree of Protection: IP65
- Actuator Type: Rotary Handle
- Contact Position Indication: ON / OFF / TRIP
- Standards: CSA 22.2 No. 14
- Remarks: For detailed specification see installation instruction
- Ambient Air Temperature: Operation -25 ... +70 °C
More info
