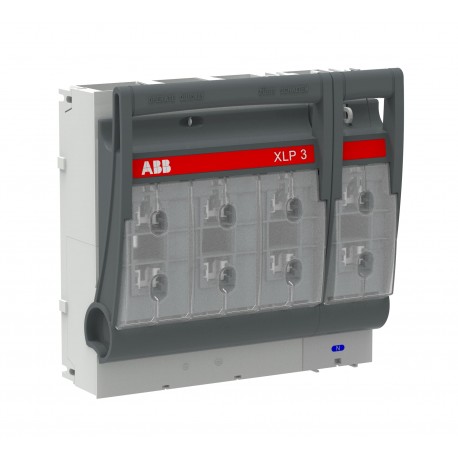

ABB 1SEP600128R0002 1SEP600128R0002 ABB Desconectador fusible XLP3 630A 4P View larger
Images are for illustrative purposes only. Please refer to data sheet for details

1SEP600128R0002 ABB Desconectador fusible XLP3 630A 4P

1SEP600128R0002

600128

ABB

1 Pcs.

Desconectador fusible XLP3 630A 4P XLP3 630A 4P fuse disconnect XLP3-4P-8BC Fuse Switch Disconnector

Connectors > Fuse switch disconnector
XLP, SLP

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

An Abb Desconectador fusible XLP3 630A 4P functions as a four-pole fuse switch disconnector engineered for secure power distribution and comprehensive circuit isolation. Industrial switchgear setups utilize these robust units to protect against high overcurrents across complex electrical grids.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Conflict Minerals Reporting Template (CMRT): 9AKK108467A5658
  • REACH Declaration: 1SCC011021D0201
  • RoHS Declaration: 1SCC011020D0201
  • RoHS Information: Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
  • Data Sheet, Technical Information: 1SEC312012D0201
  • Instructions and Manuals: No Instructions and Manuals needed
  • Degree of Protection: IP30
  • Minimum Order Quantity: 1 piece
  • Customs Tariff Number: 85389099
  • Country or Territory of Origin: China
  • Product Net Width: 339 mm
  • Product Net Height: 142 mm
  • Product Net Depth / Length: 330 mm
  • Product Net Weight: 7.43 kg
  • Package Level 1 Units: shrink-wrap 1 piece
  • Package Level 1 Width: 339 mm

More info

▲
Material Compliance
Conflict Minerals Reporting Template (CMRT)9AKK108467A5658
REACH Declaration1SCC011021D0201
RoHS Declaration1SCC011020D0201
RoHS InformationFollowing EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Popular Downloads
Data Sheet, Technical Information1SEC312012D0201
Instructions and ManualsNo Instructions and Manuals needed
Environmental
Degree of ProtectionIP30
Ordering
Minimum Order Quantity1 piece
Customs Tariff Number85389099
Country or Territory of OriginChina
Dimensions
Product Net Width339 mm
Product Net Height142 mm
Product Net Depth / Length330 mm
Product Net Weight7.43 kg
Container Information
Package Level 1 Unitsshrink-wrap 1 piece
Package Level 1 Width339 mm
Package Level 1 Depth / Length330 mm
Package Level 1 Height142 mm
Package Level 1 Gross Weight7.43 kg
Package Level 1 EAN7025840086772
Package Level 2 EANdetach
Technical
Degree of ProtectionIP30
Device Type Manager (DTM)Fuseswitchdisconnector
Electronic Fuse MonitoringNo
Fuse SizeNH3
Fuse SystemDIN
Handle TypeFront cover 4P
Mounting TypeBaseplate
Number of Poles4P
Power Lossat Rated Load 24 W
Rated Conditional Short-Circuit Current (Inc)(690 V) 50 kiloampere rms
Rated Current (In)630 A
Rated Frequency (f)Main Circuit 50/60 Hz
Rated Impulse Withstand Voltage (Uimp)Main Circuit 8 kV
Rated Operational Current AC-22B (Ie)(500 V) 630 A
Rated Operational Voltage500 V AC
Rated Voltage (Ur)500 V AC
Special FunctionsNot Included
StandardsIEC60947-3
GB/T14048.3
Terminal TypeCable Clamp
Certificates and Declarations
Declaration of Conformity - CE1SEP500050P0001
External Classifications and Standards
Object Classification CodeS
ETIM 9EC001040 - Fuse switch disconnector
ETIM 10EC001040 - Fuse switch disconnector
eClassV11.1 : 27371401
WEEE Category5. Small Equipment (No External Dimension More Than 50 cm)
E-Number (Norway)1687829
E-Number (Sweden)3171974
