View larger
Images are for illustrative purposes only. Please refer to data sheet for details

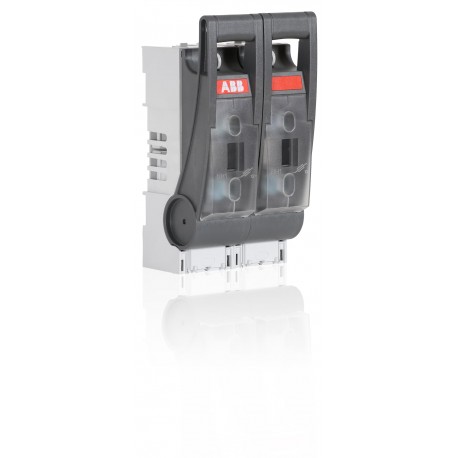

1SEP600123R0002 ABB Desconectador fusible XLP2 400A 2P
1SEP600123R0002
600123
ABB
1 Pcs.
Desconectador fusible XLP2 400A 2P
XLP2 400A 2P fuse disconnect
XLP2-2P-4BC Fuse Switch Disconnector
Connectors > Fuse switch disconnector
XLP, SLP
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲| Material Compliance | |
|---|---|
| Conflict Minerals Reporting Template (CMRT) | 9AKK108467A5658 |
| REACH Declaration | 1SCC011021D0201 |
| RoHS Declaration | 1SCC011020D0201 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| Popular Downloads | |
| Data Sheet, Technical Information | 1SEC312012D0201 |
| Instructions and Manuals | No Instructions and Manuals needed |
| Environmental | |
| Degree of Protection | IP30 |
| Ordering | |
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85389099 |
| Country or Territory of Origin | China |
| Dimensions | |
| Product Net Width | 160 mm |
| Product Net Height | 129 mm |
| Product Net Depth / Length | 289 mm |
| Product Net Weight | 2.49 kg |
| Container Information | |
| Package Level 1 Units | shrink-wrap 1 piece |
| Package Level 1 Width | 160 mm |
| Package Level 1 Depth / Length | 289 mm |
| Package Level 1 Height | 129 mm |
| Package Level 1 Gross Weight | 2.49 kg |
| Package Level 1 EAN | 7025840086697 |
| Package Level 2 EAN | detach |
| Technical | |
| Degree of Protection | IP30 |
| Device Type Manager (DTM) | Fuseswitchdisconnector |
| Electronic Fuse Monitoring | No |
| Fuse Size | NH2 |
| Fuse System | DIN |
| Handle Type | Front cover 2P |
| Mounting Type | Baseplate |
| Number of Poles | 2P |
| Power Loss | at Rated Load 13 W |
| Rated Conditional Short-Circuit Current (Inc) | (690 V) 50 kiloampere rms |
| Rated Current (In) | 400 A |
| Rated Frequency (f) | Main Circuit 50/60 Hz |
| Rated Impulse Withstand Voltage (Uimp) | Main Circuit 8 kV |
| Rated Operational Current AC-21B (Ie) | (690 V) 315 A |
| Rated Operational Current AC-22B (Ie) | (500 V) 400 A |
| Rated Operational Current DC-22B | (440 V) 400 A |
| Rated Operational Voltage | 440 V DC |
| 500 V AC | |
| 690 V AC | |
| Rated Voltage (Ur) | 440 V DC |
| 500 V AC | |
| 690 V AC | |
| Special Functions | Not Included |
| Standards | IEC60947-3 |
| GB/T14048.3 | |
| Terminal Type | Cable Clamp |
| Certificates and Declarations | |
| Declaration of Conformity - CE | 1SEP500050P0001 |
| External Classifications and Standards | |
| Object Classification Code | S |
| ETIM 9 | EC001040 - Fuse switch disconnector |
| ETIM 10 | EC001040 - Fuse switch disconnector |
| eClass | V11.1 : 27371401 |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| E-Number (Norway) | 1687821 |
| E-Number (Sweden) | 3171967 |
