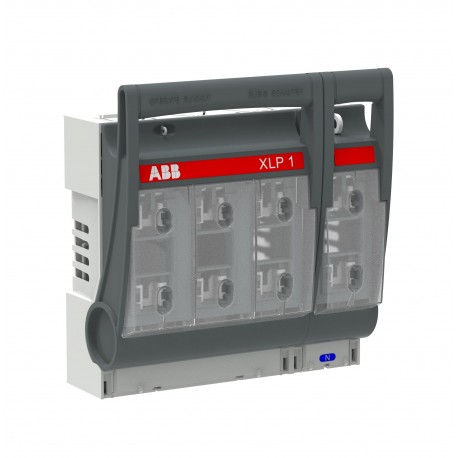

ABB 1SEP600119R0002 1SEP600119R0002 ABB Desconectador fusible XLP1 250A 4P View larger
Images are for illustrative purposes only. Please refer to data sheet for details

1SEP600119R0002 ABB Desconectador fusible XLP1 250A 4P

1SEP600119R0002

600119

ABB

1 Pcs.

Desconectador fusible XLP1 250A 4P XLP1 250A 4P fuse disconnect XLP1-4P-8BC Fuse Switch Disconnector

Connectors > Fuse switch disconnector
XLP, SLP

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

An ABB 1SEP600119R0002 Desconectador fusible XLP1 is an industrial fuse switch disconnector designed to protect electrical networks from high fault currents while providing safe manual isolation for equipment maintenance. These units are commonly mounted in distribution cabinets and feeder pillars.

Pricing, availability, and lead time are confirmed per enquiry through an RFQ.

  • Conflict Minerals Reporting Template (CMRT): 9AKK108467A5658
  • REACH Declaration: 1SCC011021D0201
  • RoHS Declaration: 1SCC011020D0201
  • RoHS Information: Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
  • Data Sheet, Technical Information: 1SEC312012D0201
  • Instructions and Manuals: No Instructions and Manuals needed
  • Degree of Protection: IP30
  • Minimum Order Quantity: 1 piece
  • Customs Tariff Number: 85389099
  • Country or Territory of Origin: China
  • Product Net Width: 254 mm
  • Product Net Height: 117 mm
  • Product Net Depth / Length: 269 mm
  • Product Net Weight: 2.98 kg
  • Package Level 1 Units: shrink-wrap 1 piece
  • Package Level 1 Width: 254 mm

More info

▲
Material Compliance
Conflict Minerals Reporting Template (CMRT)9AKK108467A5658
REACH Declaration1SCC011021D0201
RoHS Declaration1SCC011020D0201
RoHS InformationFollowing EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Popular Downloads
Data Sheet, Technical Information1SEC312012D0201
Instructions and ManualsNo Instructions and Manuals needed
Environmental
Degree of ProtectionIP30
Ordering
Minimum Order Quantity1 piece
Customs Tariff Number85389099
Country or Territory of OriginChina
Dimensions
Product Net Width254 mm
Product Net Height117 mm
Product Net Depth / Length269 mm
Product Net Weight2.98 kg
Container Information
Package Level 1 Unitsshrink-wrap 1 piece
Package Level 1 Width254 mm
Package Level 1 Depth / Length269 mm
Package Level 1 Height117 mm
Package Level 1 Gross Weight2.98 kg
Package Level 1 EAN7025840086642
Package Level 2 EANdetach
Technical
Degree of ProtectionIP30
Device Type Manager (DTM)Fuseswitchdisconnector
Electronic Fuse MonitoringNo
Fuse SizeNH1
Fuse SystemDIN
Handle TypeFront cover 4P
Mounting TypeBaseplate
Number of Poles4P
Power Lossat Rated Load 7.5 W
Rated Conditional Short-Circuit Current (Inc)(690 V) 50 kiloampere rms
Rated Current (In)250 A
Rated Frequency (f)Main Circuit 50/60 Hz
Rated Impulse Withstand Voltage (Uimp)Main Circuit 8 kV
Rated Operational Current AC-22B (Ie)(500 V) 250 A
Rated Operational Voltage500 V AC
Rated Voltage (Ur)500 V AC
Special FunctionsNot Included
StandardsIEC60947-3
GB/T14048.3
Terminal TypeCable Clamp
Certificates and Declarations
Declaration of Conformity - CE1SEP500050P0001
External Classifications and Standards
Object Classification CodeS
ETIM 9EC001040 - Fuse switch disconnector
ETIM 10EC001040 - Fuse switch disconnector
eClassV11.1 : 27371401
WEEE Category5. Small Equipment (No External Dimension More Than 50 cm)
E-Number (Norway)1687816
E-Number (Sweden)3171971
