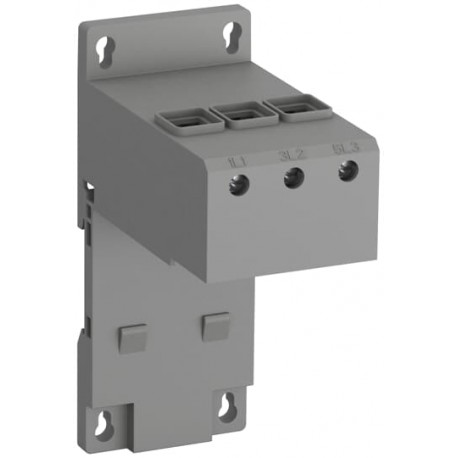

1SAZ801901R1001 ABB DB65 Single Mounting Kit
1SAZ801901R1001
801901
ABB
1 Pcs.
Automation > Accessories/spare parts for low-voltage switch technology
Thermal Relays
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
Abb 1SAZ801901R1001 DB65 Single Mounting Kit provides mechanical support and alignment for motor protection equipment, securing devices directly inside electrical control enclosures. Such mounting kits ensure robust physical anchoring and organized spatial layout for heavy-duty industrial switching assemblies. Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Minimum Order Quantity: 1 piece
- Customs Tariff Number: 85389099
- Data Sheet, Technical Information: 1SBC100214C0202
- Instructions and Manuals: 2CDC106087M6802
- Instructions and Manuals (Part 2): 1SAC200017M0002
- CAD Dimensional Drawing: 2CDC001079B0201
- Product Net Width: 55 mm
- Product Net Height: 95 mm
- Product Net Depth / Length: 138 mm
- Product Net Weight: 0.132 kg
- Rated Operational Voltage: Main Circuit 690 V AC
- Rated Operational Current (I e ): 67 A
- Rated Operational Current AC-3 (I e ): 67 A
- Rated Frequency (f): Main Circuit 60 Hz
- Rated Impulse Withstand Voltage (U imp ): Main Circuit 8 kV
- Rated Insulation Voltage (U i ): 390 V
More info
▲| Ordering | |
|---|---|
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85389099 |
| Popular Downloads | |
| Data Sheet, Technical Information | 1SBC100214C0202 |
| Instructions and Manuals | 2CDC106087M6802 |
| Instructions and Manuals (Part 2) | 1SAC200017M0002 |
| CAD Dimensional Drawing | 2CDC001079B0201 |
| Dimensions | |
| Product Net Width | 55 mm |
| Product Net Height | 95 mm |
| Product Net Depth / Length | 138 mm |
| Product Net Weight | 0.132 kg |
| Technical | |
| Rated Operational Voltage | Main Circuit 690 V AC |
| Rated Operational Current (Ie) | 67 A |
| Rated Operational Current AC-3 (Ie) | 67 A |
| Rated Frequency (f) | Main Circuit 60 Hz |
| Main Circuit 50 Hz | |
| Rated Impulse Withstand Voltage (Uimp) | Main Circuit 8 kV |
| Rated Insulation Voltage (Ui) | 390 V |
| Number of Poles | 3P |
| Degree of Protection | IP20 |
| Pollution Degree | 3 |
| Connecting Capacity Main Circuit | Flexible with Ferrule 1x 2.5 ... 35 mm² |
| Flexible with Ferrule 2x 2.5 ... 10 mm² | |
| Flexible with Insulated Ferrule 1x 2.5 ... 35 mm² | |
| Flexible with Insulated Ferrule 1x 2.5 ... 10 mm² | |
| Flexible 1x 2.5 ... 35 mm² | |
| Flexible 2x 2.5 ... 16 mm² | |
| Rigid 1x 2.5 ... 35 mm² | |
| Rigid 2x 2.5 ... 16 mm² | |
| Tightening Torque | Main Circuit 4.0 ... 4.5 N·m |
| Wire Stripping Length | Main Circuit 17 mm |
| Recommended Screw Driver | M6 |
| Pozidriv 2 | |
| Mounting Position | 1 ... 6 |
| Suitable For | TF65 |
| Technical UL/CSA | |
| Maximum Operating Voltage UL/CSA | Main Circuit 600 V AC |
| Connecting Capacity Main Circuit UL/CSA | Flexible 1x 12-2 AWG |
| Flexible 2x 12-6 AWG | |
| Stranded 1x 12-2 AWG | |
| Stranded 2x 12-6 AWG | |
| Tightening Torque UL/CSA | Main Circuit 35 ... 40 in·lb |
| Environmental | |
| Resistance to Shock acc. to IEC 60068-2-27 | 11 ms Pulse 25g |
| Resistance to Vibrations | 5g 3 ... 150 Hz |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| Toxic Substances Control Act - TSCA | 2CMT2023-006525 |
| Material Compliance | |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108467A5658 |
| REACH Declaration | 2CMT2021-006202 |
| RoHS Declaration | 2CMT2021-006277 |
| WEEE B2C / B2B | Business To Business |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| Certificates and Declarations | |
| Declaration of Conformity - CE | 1SAD101100-3504 |
| Declaration of Conformity - UKCA | 1SAD201100-3504 |
| UL Certificate | E48139-20130329 |
| Container Information | |
| Package Level 1 Units | box 1 piece |
| Package Level 1 Width | 60 mm |
| Package Level 1 Height | 106 mm |
| Package Level 1 Depth / Length | 142 mm |
| Package Level 1 Gross Weight | 0.174 kg |
| Package Level 1 EAN | 4013614501722 |
| External Classifications and Standards | |
| Object Classification Code | Q |
| ETIM 9 | EC002498 - Accessories/spare parts for low-voltage switch technology |
| ETIM 10 | EC002498 - Accessories/spare parts for low-voltage switch technology |
| eClass | V11.0 : 27371392 |
| UNSPSC | 31162313 |
| IDEA Granular Category Code (IGCC) | 2988 >> Mounting kits |
| E-Number (Norway) | 4116779 |
| E-Number (Sweden) | 3210250 |
