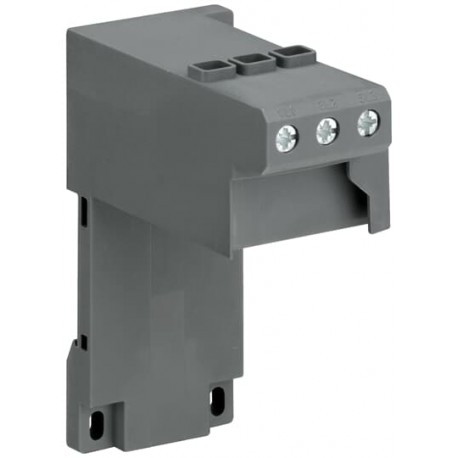

1SAZ701902R0001 ABB DB42 Single Mounting Kit
1SAZ701902R0001
701902
ABB
1 Pcs.
DB42 Single Mounting Kit
DB42 INDEPENDENT ASSEMBLY KIT RELe TF42
Automation > Accessories/spare parts for low-voltage switch technology
Thermal Relays
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
An Abb single mounting kit facilitates the proper mechanical installation and spacing of industrial control devices and overload relays within electrical panels.
Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Minimum Order Quantity: 1 piece
- Customs Tariff Number: 85389099
- Data Sheet, Technical Information: 1SBC100214C0202
- Instructions and Manuals: 2CDC106025M6802
- Instructions and Manuals (Part 2): 1SAC200017M0002
- CAD Dimensional Drawing: 2CDC001079B0201
- Dimension Diagram: 1SAZ700410F0001
- Product Net Width: 50 mm
- Product Net Height: 102 mm
- Product Net Depth / Length: 108 mm
- Product Net Weight: 0.087 kg
- Rated Operational Voltage: Main Circuit 690 V AC
- Rated Operational Current (I e ): 40 A
- Rated Operational Current AC-3 (I e ): 40 A
- Rated Frequency (f): Main Circuit 50 Hz
- Rated Impulse Withstand Voltage (U imp ): Auxiliary Circuit 6 kV
More info
▲| Ordering | |
|---|---|
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85389099 |
| Popular Downloads | |
| Data Sheet, Technical Information | 1SBC100214C0202 |
| Instructions and Manuals | 2CDC106025M6802 |
| Instructions and Manuals (Part 2) | 1SAC200017M0002 |
| CAD Dimensional Drawing | 2CDC001079B0201 |
| Dimension Diagram | 1SAZ700410F0001 |
| Dimensions | |
| Product Net Width | 50 mm |
| Product Net Height | 102 mm |
| Product Net Depth / Length | 108 mm |
| Product Net Weight | 0.087 kg |
| Technical | |
| Rated Operational Voltage | Main Circuit 690 V AC |
| Rated Operational Current (Ie) | 40 A |
| Rated Operational Current AC-3 (Ie) | 40 A |
| Rated Frequency (f) | Main Circuit 50 Hz |
| Main Circuit 60 Hz | |
| Rated Impulse Withstand Voltage (Uimp) | Auxiliary Circuit 6 kV |
| Main Circuit 6 kV | |
| Rated Insulation Voltage (Ui) | 690 V |
| Number of Poles | 3P |
| Degree of Protection | IP20 |
| Pollution Degree | 3 |
| Connecting Capacity Main Circuit | Flexible with Ferrule 1x 0.75 ... 10 mm² |
| Flexible with Insulated Ferrule 1x 0.75 ... 10 mm² | |
| Flexible 1x 0.75 ... 10 mm² | |
| Rigid 1x 0.75 ... 2.5 mm² | |
| Tightening Torque | Main Circuit 1.5 ... 2.7 N·m |
| Wire Stripping Length | Main Circuit 12 mm |
| Recommended Screw Driver | Pozidriv 2 |
| Mounting Position | 1 ... 5 |
| Suitable For | TF42 |
| Standards | CSA 22.2 No. 14 |
| IEC/EN 60947-1 | |
| IEC/EN 60947-4-1 | |
| UL 508 | |
| Technical UL/CSA | |
| Maximum Operating Voltage UL/CSA | Main Circuit 600 V AC |
| Connecting Capacity Main Circuit UL/CSA | Flexible 1x 18-6 AWG |
| Stranded 1x 18-6 AWG | |
| Tightening Torque UL/CSA | Main Circuit 13 ... 22 in·lb |
| Environmental | |
| Resistance to Shock acc. to IEC 60068-2-27 | 11 ms Pulse 25g |
| Resistance to Vibrations | 5g 3 ... 150 Hz |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| Toxic Substances Control Act - TSCA | 2CMT2023-006525 |
| Material Compliance | |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108467A5658 |
| REACH Declaration | 2CMT2021-006202 |
| RoHS Declaration | 2CMT2021-006277 |
| WEEE B2C / B2B | Business To Business |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| Certificates and Declarations | |
| ABS Certificate | No Certificate Needed |
| Declaration of Conformity - CE | 1SAD101100-3504 |
| Declaration of Conformity - UKCA | 1SAD201100-3504 |
| DNV Certificate | No Certificate Needed |
| GL Certificate | No Certificate Needed |
| LR Certificate | No Certificate Needed |
| RINA Certificate | No Certificate Needed |
| RMRS Certificate | No Certificate Needed |
| UL Certificate | E48139-20090126 |
| Container Information | |
| Package Level 1 Units | box 1 piece |
| Package Level 1 Width | 108 mm |
| Package Level 1 Height | 50 mm |
| Package Level 1 Depth / Length | 102 mm |
| Package Level 1 Gross Weight | 0.12 kg |
| Package Level 1 EAN | 4013614407826 |
| Package Level 2 Units | 84 piece |
| Package Level 2 Width | 405 mm |
| Package Level 2 Height | 360 mm |
| Package Level 2 Depth / Length | 380 mm |
| Package Level 2 Gross Weight | 10.5 kg |
| Package Level 2 EAN | 4013614480010 |
| External Classifications and Standards | |
| Object Classification Code | Q |
| ETIM 9 | EC002498 - Accessories/spare parts for low-voltage switch technology |
| ETIM 10 | EC002498 - Accessories/spare parts for low-voltage switch technology |
| eClass | V11.0 : 27371392 |
| UNSPSC | 31162313 |
| IDEA Granular Category Code (IGCC) | 2988 >> Mounting kits |
| E-Number (Finland) | 3707472 |
| E-Number (Norway) | 4116785 |
| E-Number (Sweden) | 3210002 |
