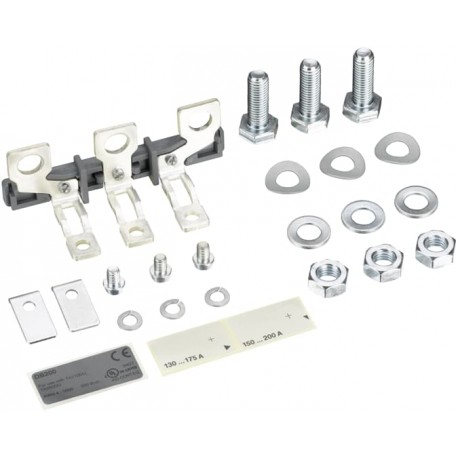

1SAZ401110R0001 ABB DB200 Single Mounting Kit
1SAZ401110R0001
401110
ABB
1 Pcs.
Automation > Accessories/spare parts for low-voltage switch technology
Thermal Relays
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
Abb 1SAZ401110R0001 DB200 single mounting kit provides a dedicated mechanical bracket assembly designed to securely mount electronic overload relays in industrial control panels. Mounting kits of this classification ensure stable positioning and correct alignment relative to associated contactors. Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Minimum Order Quantity: 1 piece
- Customs Tariff Number: 85389099
- Data Sheet, Technical Information: 1SBC100214C0202
- Instructions and Manuals: 2CDC106089M6801
- CAD Dimensional Drawing: 2CDC001079B0201
- Dimension Diagram: 1SAZ400402F0001
- Product Net Width: 105 mm
- Product Net Height: 43 mm
- Product Net Depth / Length: 40 mm
- Product Net Weight: 0.225 kg
- Rated Operational Voltage: Main Circuit 690 V AC
- Rated Frequency (f): Main Circuit 50 Hz
- Rated Impulse Withstand Voltage (U imp ): Main Circuit 6 kV
- Rated Insulation Voltage (U i ): 690 V
- Number of Poles: 3P
- Pollution Degree: 3
More info
