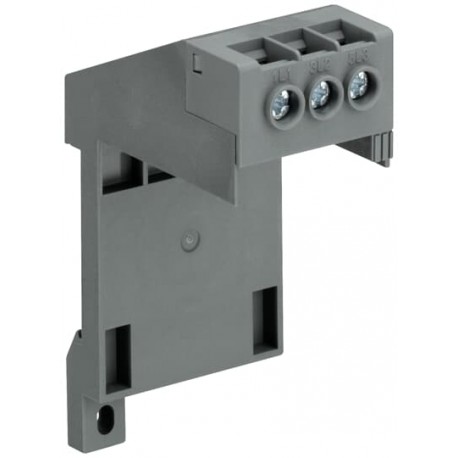

1SAZ701901R0001 ABB DB16 Single Mounting Kit
1SAZ701901R0001
701901
ABB
1 Pcs.
Automation > Accessories/spare parts for low-voltage switch technology
Thermal Relays
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
The 1SAZ701901R0001 ABB DB16 Single Mounting Kit allows direct mechanical installation and alignment of modular motor protection equipment within electrical panels. Single mounting brackets simplify control gear assembly by providing a secure, dedicated anchoring point for individual protective devices.
Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Minimum Order Quantity: 1 piece
- Customs Tariff Number: 85389099
- Data Sheet, Technical Information: 1SBC100214C0202
- Instructions and Manuals: 2CDC106024M6802
- Instructions and Manuals (Part 2): 1SAC200017M0002
- CAD Dimensional Drawing: 2CDC001079B0201
- Dimension Diagram: 1SAZ700411F0001
- Product Net Width: 92 mm
- Product Net Height: 50 mm
- Product Net Depth / Length: 73 mm
- Product Net Weight: 0.032 kg
- Rated Operational Voltage: Main Circuit 690 V AC
- Rated Operational Current (I e ): 16 A
- Rated Operational Current AC-3 (I e ): 16 A
- Rated Frequency (f): Main Circuit 50 Hz
- Rated Impulse Withstand Voltage (U imp ): Auxiliary Circuit 6 kV
