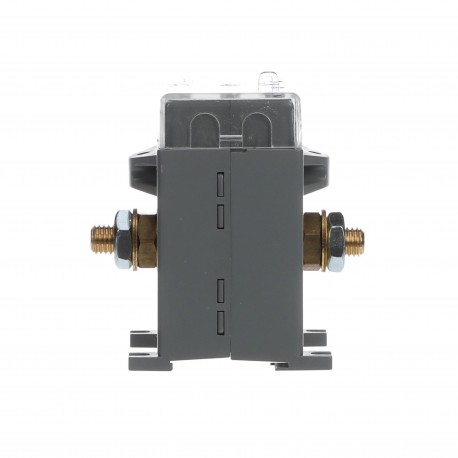

2CSG111120R1141 ABB Current transformer CTA/100
2CSG111120R1141
111120
ABB
1 Pcs.
Automation > Current transformer
AER and Transformers
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
An Abb current transformer scales high primary electrical currents down to safe, standardized secondary levels for metering, protection, and monitoring devices. These components are essential across electrical distribution networks for accurate system measurements.
Pricing, availability, and lead time are confirmed per enquiry through an RFQ.
- Cable Use: Cable
- Current Rating: 100 A
- Rated Primary Current (I pn ): 100 A
- Rated Secondary Current (I sn ): 5 A
- Current Limit Function: FS 5
- Apparent Power Output: 2 V·A
- Secondary Output Connection: Screw connection
- Accuracy: ±0,5%
- Model Number: Through-feed current converter
- Number of Inputs: Primary 1
- Frequency ( f ): 50 ... 60 Hz
- RoHS Declaration: 2CSC445013K0201
- RoHS Information: Following EU Directive 2002/95/EC August 18, 2005 and amendment
- REACH Declaration: 9AKK108467A9482
- REACH Information: True - contains substances > 0.1 mass percentage
- REACH Date: 20240429
More info
▲| Technical | |
|---|---|
| Cable Use | Cable |
| Current Rating | 100 A |
| Rated Primary Current (Ipn) | 100 A |
| Rated Secondary Current (Isn) | 5 A |
| Current Limit Function | FS 5 |
| Apparent Power Output | 2 V·A |
| Secondary Output Connection | Screw connection |
| Accuracy | ±0,5% |
| Model Number | Through-feed current converter |
| Number of Inputs | Primary 1 |
| Electrical | |
| Frequency (f) | 50 ... 60 Hz |
| Material Compliance | |
| RoHS Declaration | 2CSC445013K0201 |
| RoHS Information | Following EU Directive 2002/95/EC August 18, 2005 and amendment |
| REACH Declaration | 9AKK108467A9482 |
| REACH Information | True - contains substances > 0.1 mass percentage |
| REACH Date | 20240429 |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108468A3363 |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| WEEE B2C / B2B | Business To Consumer |
| Environmental | |
| Ambient Air Temperature | Operation -5 ... 50 °C |
| Environmental Information | See RoHS Information |
| Dimensions | |
| Product Net Width | 56 mm |
| Product Net Height | 26.5 mm |
| Product Net Depth / Length | 63 mm |
| Product Net Weight | 0.460 kg |
| Bore Diameter | 29 mm |
| Ordering | |
| Package Level 1 Units | box 1 piece |
| Package Level 1 Gross Weight | 0.482 kg |
| Certificates and Declarations | |
| Declaration of Conformity - CE | 9AKK106713A5700 |
| EU Data Act Compliance Declaration | Not applicable |
| Installation | |
| Instructions and Manuals | 2CSC446012B0201 |
| Mounting Type | DIN-Rail |
| Popular Downloads | |
| Data Sheet, Technical Information | 9AKK107046A0430 |
| External Classifications and Standards | |
| ETIM 9 | EC002048 - Current transformer |
| ETIM 10 | EC002048 - Current transformer |
| eClass | V11.0 : 27210902 |
| Object Classification Code | T |
