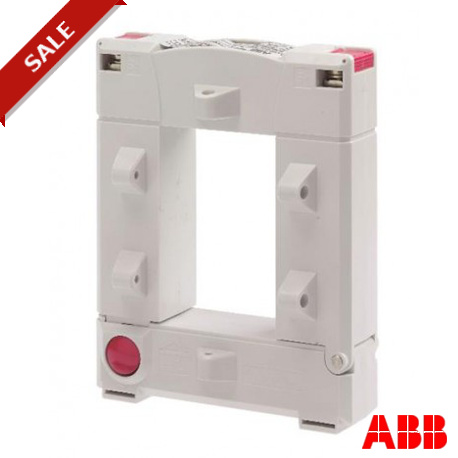

2CSG201160R1101 ABB CT80/500 Split core current transformer

2CSG201160R1101

201160

ABB

1 Pcs.

CT80/500 Split core current transformer Trans. intens. Split Core 500/5

Automation > Current transformer
AER and Transformers

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Retrofit power monitoring equipment onto existing installations without major rewiring by using the Abb CT80/500 split core current transformer. Split-core designs make it easy to clamp around primary conductors, converting line currents securely for measurement devices.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Data Sheet, Technical Information: 2CSC400002D0209
  • Mounting Type: Split core through primary
  • Rated Cross-Section: 3 x 80 x 10 mm
  • Rated Primary Current (I pn ): 500 A
  • RoHS Status: Following EU Directive 2002/95/EC August 18, 2005 and amendment
  • Environmental Information: See RoHS Information
  • Instructions and Manuals: Not applicable
  • RoHS Information: 2CSC445004K0901
  • Product Net Width: 0.125 m
  • Product Net Height: 0.152 m
  • Product Net Depth: 0.034 m
  • Product Net Weight: 1.100 kg
  • Minimum Order Quantity: 1 piece
  • Customs Tariff Number: 85043121
  • Declaration of Conformity - CE: ITSCE115CT
  • Package Level 1 Units: 1 piece

More info

▲

CT80/500 is a split core current transformer used to transform primary currents to../5A secondary currents for c.a. measurement instruments

Ordering

  • Minimum Order Quantity:
    1 piece
  • Customs Tariff Number:
    85043121

Popular Downloads

  • Data Sheet, Technical Information:
    2CSC400002D0209

Dimensions

  • Product Net Width:
    0.125m
  • Product Net Height:
    0.152m
  • Product Net Depth:
    0.034m
  • Product Net Weight:
    1.100kg

Technical

  • Mounting Type:
    Split core through primary
  • Rated Cross-Section:
    3 x 80 x 10 mm
  • Rated Primary Current (Ipn):
    500 A

Environmental

  • RoHS Status:
    Following EU Directive 2002/95/EC August 18, 2005 and amendment

Certificates and Declarations (Document Number)

  • Declaration of Conformity - CE:
    ITSCE115CT
  • Environmental Information:
    See RoHS Information
  • Instructions and Manuals:
    Not applicable
  • RoHS Information:
    2CSC445004K0901

Container Information

  • Package Level 1 Units:
    1 piece
  • Package Level 1 Width:
    0.23 m
  • Package Level 1 Height:
    0.12 m
  • Package Level 1 Length:
    0.3 m
  • Package Level 1 Gross Weight:
    1.1 kg
  • Package Level 1 EAN:
    8012542888406

Classifications

  • Object Classification Code:
    T
  • ETIM 4:
    EC002048 - Current transformer
  • ETIM 5:
    EC002048 - Current transformer
  • ETIM 6:
    EC002048 - Current transformer

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
