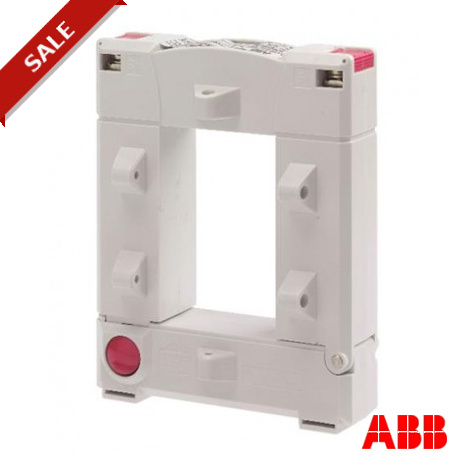

ABB 2CSG201150R1101 2CSG201150R1101 ABB CT80/400 Split core current transformer View larger
Images are for illustrative purposes only. Please refer to data sheet for details

2CSG201150R1101 ABB CT80/400 Split core current transformer

2CSG201150R1101

201150

ABB

1 Pcs.

CT80/400 Split core current transformer Trans. intens. Split Core 400/5

Automation > Current transformer
AER and Transformers

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Clamp around busbars or cables to monitor energy consumption effortlessly with the Abb CT80/400 split core current transformer. These split-core instruments provide a practical way to acquire secondary measurement signals in operational facilities.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Data Sheet, Technical Information: 2CSC400002D0209
  • Mounting Type: Split core through primary
  • Rated Cross-Section: 3 x 80 x 10 mm
  • Rated Primary Current (I pn ): 400 A
  • RoHS Status: Following EU Directive 2002/95/EC August 18, 2005 and amendment
  • Environmental Information: See RoHS Information
  • Instructions and Manuals: Not applicable
  • RoHS Information: 2CSC445004K0901
  • Product Net Width: 0.125 m
  • Product Net Height: 0.152 m
  • Product Net Depth: 0.034 m
  • Product Net Weight: 1.100 kg
  • Minimum Order Quantity: 1 piece
  • Customs Tariff Number: 85043121
  • Declaration of Conformity - CE: ITSCE115CT
  • Package Level 1 Units: 1 piece

More info

▲

CT80/400 is a split core current transformer used to transform primary currents to../5A secondary currents for c.a. measurement instruments

Ordering

  • Minimum Order Quantity:
    1 piece
  • Customs Tariff Number:
    85043121

Popular Downloads

  • Data Sheet, Technical Information:
    2CSC400002D0209

Dimensions

  • Product Net Width:
    0.125m
  • Product Net Height:
    0.152m
  • Product Net Depth:
    0.034m
  • Product Net Weight:
    1.100kg

Technical

  • Mounting Type:
    Split core through primary
  • Rated Cross-Section:
    3 x 80 x 10 mm
  • Rated Primary Current (Ipn):
    400 A

Environmental

  • RoHS Status:
    Following EU Directive 2002/95/EC August 18, 2005 and amendment

Certificates and Declarations (Document Number)

  • Declaration of Conformity - CE:
    ITSCE115CT
  • Environmental Information:
    See RoHS Information
  • Instructions and Manuals:
    Not applicable
  • RoHS Information:
    2CSC445004K0901

Container Information

  • Package Level 1 Units:
    1 piece
  • Package Level 1 Width:
    0.23 m
  • Package Level 1 Height:
    0.12 m
  • Package Level 1 Length:
    0.3 m
  • Package Level 1 Gross Weight:
    1.1 kg
  • Package Level 1 EAN:
    8012542888307

Classifications

  • Object Classification Code:
    T
  • ETIM 4:
    EC002048 - Current transformer
  • ETIM 5:
    EC002048 - Current transformer
  • ETIM 6:
    EC002048 - Current transformer
