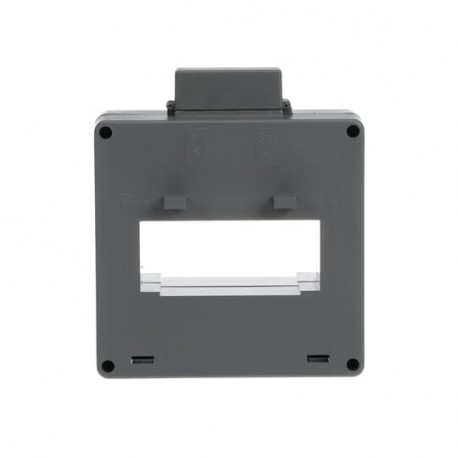

2CSG521180R1101 ABB CT8/800 Current transformer
2CSG521180R1101
521180
ABB
1 Pcs.
Automation > Current transformer
CT
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
Abb 2CSG521180R1101 CT8/800 current transformer provides proportional conversion of heavy primary currents to lower, standardized values for metering devices. These components are widely installed in switchgear and control panels to facilitate safe monitoring and protection of electrical infrastructure.
Pricing, availability, and lead time are confirmed per enquiry through an RFQ.
- Model (EF000010): Through-feed current converter
- Rated primary current (EF007405): 800 A
- Rated secondary current (EF007471): 5 A
- Accuracy class (EF008842): 0.5
- Overcurrent limiting factor (EF007511): FS 5
- Calibrated (EF008836): Yes
- With contact protection (EF008186): Yes
- Height opening (EF012757): 34.6 mm
- Width opening (EF012758): 82.5 mm
- Snap mounting (EF007462): Yes
- With copper rail (EF007380): Yes
- Secondary connection (EF021093): Plug-in connection
- Number of primary inputs (EF006947): 1
More info
▲CT8/800 is used to transform primary currents to../5A secondary currents for c.a. measurement instruments
Ordering
- EAN:
- 8012542607007
- Minimum Order Quantity:
- 1 piece
- Customs Tariff Number:
- 85043121
Dimensions
- Product Net Width:
- 0.090m
- Product Net Height:
- 0.135m
- Product Net Depth:
- 0.145m
- Product Net Weight:
- 0.500kg
Container Information
- Package Level 1 Units:
- 1 piece
- Package Level 1 Width:
- 0.142 m
- Package Level 1 Height:
- 0.063 m
- Package Level 1 Length:
- 0.125 m
- Package Level 1 Gross Weight:
- 1 kg
- Package Level 1 EAN:
- 8012542607007
- Package Level 2 Units:
- 1 piece
- Package Level 2 Gross Weight:
- 0.500 kg
Technical
- Mounting Type:
- Through primary
- Cable Use:
- Cable and Horizontal bar
- Cable Cross-Section:
- 2 x 30 mm
- Rated Cross-Section:
- 80 x 30 mm
- Rated Primary Current (Ipn):
- 800 A
Environmental
- RoHS Status:
- Following EU Directive 2002/95/EC August 18, 2005 and amendment
Certificates and Declarations (Document Number)
- Declaration of Conformity - CE:
- ITSCE115CT
- RoHS Information:
- 2CSC445004K0201
Classifications
- Object Classification Code:
- T
- ETIM 4:
- EC002048 - Current transformer
- ETIM 5:
- EC002048 - Current transformer
