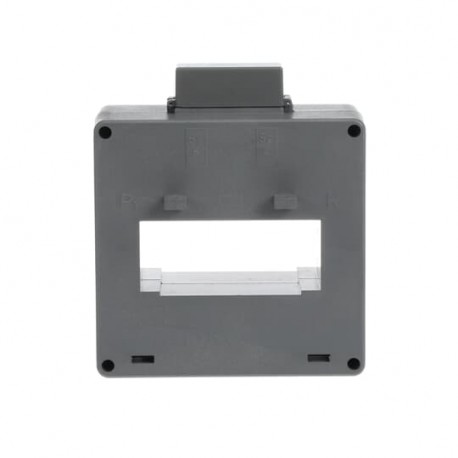

ABB 2CSG521170R1101 2CSG521170R1101 ABB CT8/600 Current transformer View larger
Images are for illustrative purposes only. Please refer to data sheet for details

2CSG521170R1101 ABB CT8/600 Current transformer

2CSG521170R1101

521170

ABB

1 Pcs.

CT8/600 Current transformer

Automation > Current transformer
CT

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Applied in industrial power distribution panels, the Abb 2CSG521170R1101 CT8/600 current transformer scales high primary currents down to safe levels for accurate measurement and system protection.

Pricing, availability, and lead time are confirmed per enquiry through an RFQ.

  • Model (EF000010): Through-feed current converter
  • Rated primary current (EF007405): 600 A
  • Accuracy class (EF008842): 0.5
  • Overcurrent limiting factor (EF007511): FS 5
  • Calibrated (EF008836): Yes
  • With contact protection (EF008186): Yes
  • Height opening (EF012757): 34.6 mm
  • Width opening (EF012758): 82.5 mm
  • Snap mounting (EF007462): Yes
  • With copper rail (EF007380): Yes
  • Secondary connection (EF021093): Plug-in connection
  • Number of primary inputs (EF006947): 1

More info

▲

CT8/600 is used to transform primary currents to../5A secondary currents for c.a. measurement instruments

Ordering

  • EAN:
    8012542606901
  • Minimum Order Quantity:
    1 piece
  • Customs Tariff Number:
    85043121

Dimensions

  • Product Net Width:
    0.090m
  • Product Net Height:
    0.135m
  • Product Net Depth:
    0.145m
  • Product Net Weight:
    0.500kg

Container Information

  • Package Level 1 Units:
    1 piece
  • Package Level 1 Width:
    0.142 m
  • Package Level 1 Height:
    0.063 m
  • Package Level 1 Length:
    0.125 m
  • Package Level 1 Gross Weight:
    1 kg
  • Package Level 1 EAN:
    8012542606901
  • Package Level 2 Units:
    1 piece
  • Package Level 2 Gross Weight:
    0.500 kg

Technical

  • Mounting Type:
    Through primary
  • Cable Use:
    Cable and Horizontal bar
  • Cable Cross-Section:
    2 x 30 mm
  • Rated Cross-Section:
    80 x 30 mm
  • Rated Primary Current (Ipn):
    600 A

Environmental

  • RoHS Status:
    Following EU Directive 2002/95/EC August 18, 2005 and amendment

Certificates and Declarations (Document Number)

Classifications

  • Object Classification Code:
    T
  • ETIM 4:
    EC002048 - Current transformer
  • ETIM 5:
    EC002048 - Current transformer
