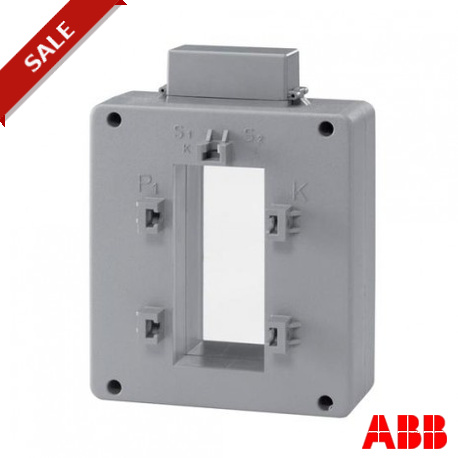

ABB CT8/400 CT8/400 2CSG521150R1101 ABB CT8/400 Current transformer View larger
Images are for illustrative purposes only. Please refer to data sheet for details

CT8/400 2CSG521150R1101 ABB CT8/400 Current transformer

CT8/400

2CSG521150R1101

ABB

1 Pcs.

CT8/400 Current transformer

Automation > Current transformer
CT

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Accurately step down high current feeds for meters and controllers using the Abb CT8/400 current transformer. Standard instrument transformers are essential in power distribution networks for scaling primary electrical loads into safe secondary values.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Mounting Type: Through primary
  • Cable Use: Cable and Horizontal bar
  • Cable Cross-Section: 2 x 30 mm
  • Rated Cross-Section: 80 x 30 mm
  • Rated Primary Current (I pn ): 400 A
  • RoHS Status: Following EU Directive 2002/95/EC August 18, 2005 and amendment
  • RoHS Information: 2CSC445004K0201
  • Product Net Width: 0.090 m
  • Product Net Height: 0.135 m
  • Product Net Depth: 0.145 m
  • Product Net Weight: 0.500 kg
  • EAN: 8012542606703
  • Minimum Order Quantity: 1 piece
  • Customs Tariff Number: 85043121
  • Package Level 1 Units: 1 piece
  • Package Level 1 Width: 0.142 m

More info

▲

CT8/400 is used to transform primary currents to../5A secondary currents for c.a. measurement instruments

Ordering

  • EAN:
    8012542606703
  • Minimum Order Quantity:
    1 piece
  • Customs Tariff Number:
    85043121

Dimensions

  • Product Net Width:
    0.090m
  • Product Net Height:
    0.135m
  • Product Net Depth:
    0.145m
  • Product Net Weight:
    0.500kg

Container Information

  • Package Level 1 Units:
    1 piece
  • Package Level 1 Width:
    0.142 m
  • Package Level 1 Height:
    0.063 m
  • Package Level 1 Length:
    0.125 m
  • Package Level 1 Gross Weight:
    1 kg
  • Package Level 1 EAN:
    8012542606703
  • Package Level 2 Units:
    1 piece
  • Package Level 2 Gross Weight:
    0.500 kg

Technical

  • Mounting Type:
    Through primary
  • Cable Use:
    Cable and Horizontal bar
  • Cable Cross-Section:
    2 x 30 mm
  • Rated Cross-Section:
    80 x 30 mm
  • Rated Primary Current (Ipn):
    400 A

Environmental

  • RoHS Status:
    Following EU Directive 2002/95/EC August 18, 2005 and amendment

Certificates and Declarations (Document Number)

Classifications

  • Object Classification Code:
    T
  • ETIM 4:
    EC002048 - Current transformer
  • ETIM 5:
    EC002048 - Current transformer

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
