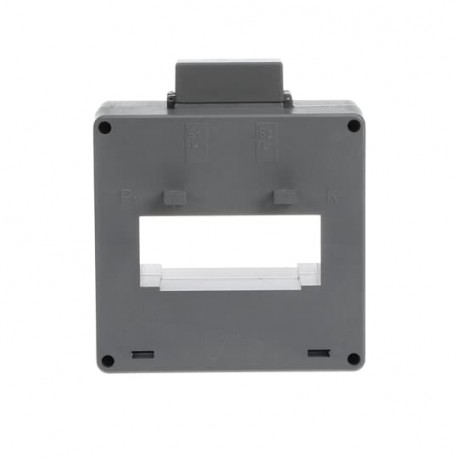

2CSG521220R1101 ABB CT8/1500 Current transformer
2CSG521220R1101
521220
ABB
1 Pcs.
Automation > Current transformer
CT
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
Abb 2CSG521220R1101 is an ABB CT8/1500 Current transformer built for heavy electrical installations to convert high primary amperages into safe, low-level secondary currents for monitoring meters and protective relays. Through-feed current converters are vital components in modern power management systems.
Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Model (EF000010): Through-feed current converter
- Rated primary current (EF007405): 1500 A
- Rated secondary current (EF007471): 5 A
- Accuracy class (EF008842): 0.5
- Overcurrent limiting factor (EF007511): FS 5
- Calibrated (EF008836): Yes
- With contact protection (EF008186): Yes
- Height opening (EF012757): 34.6 mm
- Width opening (EF012758): 82.5 mm
- Snap mounting (EF007462): Yes
- With copper rail (EF007380): Yes
- Secondary connection (EF021093): Plug-in connection
- Number of primary inputs (EF006947): 1
More info
▲CT8/1500 is used to transform primary currents to../5A secondary currents for c.a. measurement instruments
Ordering
- EAN:
- 8012542607304
- Minimum Order Quantity:
- 1 piece
- Customs Tariff Number:
- 85043121
Dimensions
- Product Net Width:
- 0.090m
- Product Net Height:
- 0.135m
- Product Net Depth:
- 0.145m
- Product Net Weight:
- 0.860kg
Container Information
- Package Level 1 Units:
- 1 piece
- Package Level 1 Width:
- 0.142 m
- Package Level 1 Height:
- 0.063 m
- Package Level 1 Length:
- 0.125 m
- Package Level 1 Gross Weight:
- 1 kg
- Package Level 1 EAN:
- 8012542607304
- Package Level 2 Units:
- 1 piece
- Package Level 2 Gross Weight:
- 0.500 kg
Technical
- Mounting Type:
- Through primary
- Cable Use:
- Cable and Horizontal bar
- Cable Cross-Section:
- 2 x 30 mm
- Rated Cross-Section:
- 80 x 30 mm
- Rated Primary Current (Ipn):
- 1500 A
Environmental
- RoHS Status:
- Following EU Directive 2002/95/EC August 18, 2005 and amendment
Certificates and Declarations (Document Number)
- Declaration of Conformity - CE:
- ITSCE115CT
- RoHS Information:
- 2CSC445004K0201
Classifications
- Object Classification Code:
- T
- ETIM 4:
- EC002048 - Current transformer
- ETIM 5:
- EC002048 - Current transformer
