View larger
Images are for illustrative purposes only. Please refer to data sheet for details

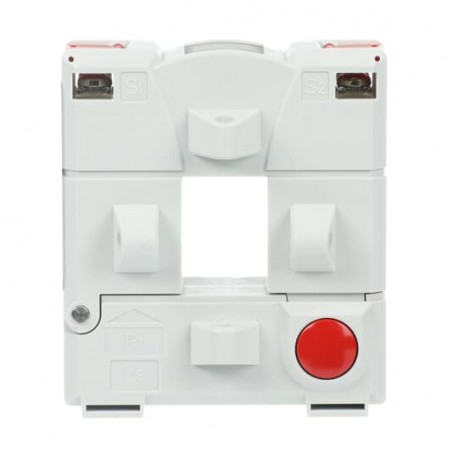

2CSG101150R1101 ABB CT30/400 Split core current transformer
2CSG101150R1101
101150
ABB
1 Pcs.
CT30/400 Split core current transformer
Trans. intens. Split Core 400/5
Automation > Current transformer
AER and Transformers
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲CT30/400 is a split core current transformer used to transform primary currents to../5A secondary currents for c.a. measurement instruments
Ordering
- Minimum Order Quantity:
- 1 piece
- Customs Tariff Number:
- 85043121
Popular Downloads
- Data Sheet, Technical Information:
- 2CSC400002D0209
Dimensions
- Product Net Width:
- 0.093m
- Product Net Height:
- 0.106m
- Product Net Depth:
- 0.034m
- Product Net Weight:
- 0.850kg
Technical
- Mounting Type:
- Split core through primary
- Rated Cross-Section:
- 2 x 30 x 10 mm
- Rated Primary Current (Ipn):
- 400 A
Environmental
- RoHS Status:
- Following EU Directive 2002/95/EC August 18, 2005 and amendment
Certificates and Declarations (Document Number)
- Declaration of Conformity - CE:
- ITSCE115CT
- Environmental Information:
- See RoHS Information
- Instructions and Manuals:
- Not applicable
- RoHS Information:
- 2CSC445004K0901
Container Information
- Package Level 1 Units:
- 1 piece
- Package Level 1 Width:
- 0.23 m
- Package Level 1 Height:
- 0.12 m
- Package Level 1 Length:
- 0.3 m
- Package Level 1 Gross Weight:
- 0.85 kg
- Package Level 1 EAN:
- 8012542888109
Classifications
- Object Classification Code:
- T
- ETIM 4:
- EC002048 - Current transformer
- ETIM 5:
- EC002048 - Current transformer
- ETIM 6:
- EC002048 - Current transformer
| Feature Name | Feature Value |
|---|---|
| Model (EF000010) | Through-feed current converter |
| Rated primary current (EF007405) | 400 A |
| Accuracy class (EF008842) | 0.5 |
| Overcurrent limiting factor (EF007511) | FS 5 |
| Calibrated (EF008836) | Yes |
| With contact protection (EF008186) | Yes |
| Height opening (EF012757) | 30 mm |
| Width opening (EF012758) | 20 mm |
| Opening diameter (EF005153) | 156 mm |
| Snap mounting (EF007462) | No |
| With copper rail (EF007380) | No |
| Secondary connection (EF021093) | Screw connection |
| Number of primary inputs (EF006947) | 1 |
