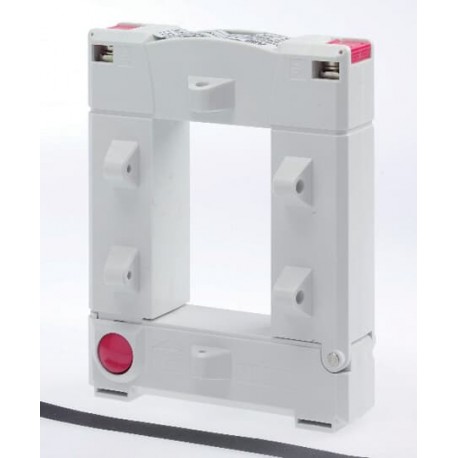

2CSG101110R1101 ABB CT30/150 Split core current transformer
2CSG101110R1101
101110
ABB
1 Pcs.
Automation > Current transformer
AER and Transformers
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
The ABB 2CSG101110R1101 is a through-feed current converter featuring a split-core design for straightforward installation around existing conductors. Split-core transformers eliminate the need to disconnect primary wiring, making them ideal for retrofit energy audits and load monitoring. Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Model (EF000010): Through-feed current converter
- Rated primary current (EF007405): 150 A
- Accuracy class (EF008842): 3
- Overcurrent limiting factor (EF007511): FS 5
- Calibrated (EF008836): Yes
- With contact protection (EF008186): Yes
- Height opening (EF012757): 30 mm
- Width opening (EF012758): 20 mm
- Opening diameter (EF005153): 110 mm
- Snap mounting (EF007462): No
- With copper rail (EF007380): No
- Secondary connection (EF021093): Screw connection
- Number of primary inputs (EF006947): 1
More info
▲CT30/150 is a split core current transformer used to transform primary currents to../5A secondary currents for c.a. measurement instruments
Ordering
- Minimum Order Quantity:
- 1 piece
- Customs Tariff Number:
- 85043121
Popular Downloads
- Data Sheet, Technical Information:
- 2CSC400002D0209
Dimensions
- Product Net Width:
- 0.093m
- Product Net Height:
- 0.106m
- Product Net Depth:
- 0.034m
- Product Net Weight:
- 0.850kg
Technical
- Mounting Type:
- Split core through primary
- Rated Cross-Section:
- 2 x 30 x 10 mm
- Rated Primary Current (Ipn):
- 150 A
Environmental
- RoHS Status:
- Following EU Directive 2002/95/EC August 18, 2005 and amendment
Certificates and Declarations (Document Number)
- Declaration of Conformity - CE:
- ITSCE115CT
- Environmental Information:
- See RoHS Information
- Instructions and Manuals:
- Not applicable
- RoHS Information:
- 2CSC445004K0901
Container Information
- Package Level 1 Units:
- 1 piece
- Package Level 1 Width:
- 0.23 m
- Package Level 1 Height:
- 0.12 m
- Package Level 1 Length:
- 0.3 m
- Package Level 1 Gross Weight:
- 0.85 kg
- Package Level 1 EAN:
- 8012542887904
Classifications
- Object Classification Code:
- T
- ETIM 4:
- EC002048 - Current transformer
- ETIM 5:
- EC002048 - Current transformer
- ETIM 6:
- EC002048 - Current transformer
