ABB 2CSG101100R1101 2CSG101100R1101 ABB CT30/100 Split core current transformer View larger
Images are for illustrative purposes only. Please refer to data sheet for details

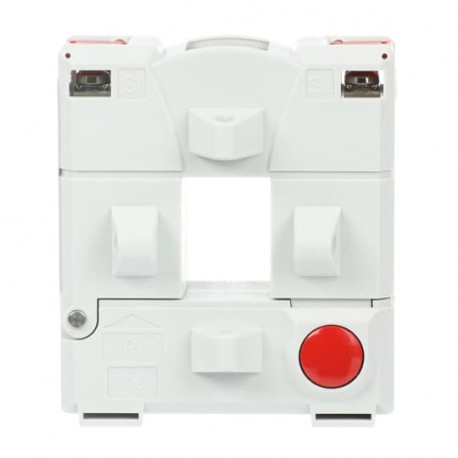

2CSG101100R1101 ABB CT30/100 Split core current transformer

2CSG101100R1101

101100

ABB

1 Pcs.

CT30/100 Split core current transformer Trans. intens. Core Match 100/5

Automation > Current transformer
AER and Transformers

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Built as a split core current transformer from ABB, part number 2CSG101100R1101 facilitates non-invasive current measurement on live power distribution cables. Technicians rely on split-core configurations during retrofits to avoid costly downtime in active industrial plants. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Model: Through-feed current converter
  • Rated primary current: 100 A
  • Accuracy class: 3
  • Overcurrent limiting factor: FS 5
  • Calibrated: Yes
  • With contact protection: Yes
  • Height opening: 30 mm
  • Width opening: 20 mm
  • Opening diameter: 110 mm
  • Snap mounting: No
  • With copper rail: No
  • Secondary connection: Screw connection
  • Number of primary inputs: 1

More info

▲

CT30/100 is a split core current transformer used to transform primary currents to../5A secondary currents for c.a. measurement instruments

Ordering

  • Minimum Order Quantity:
    1 piece
  • Customs Tariff Number:
    85043121

Popular Downloads

  • Data Sheet, Technical Information:
    2CSC400002D0209

Dimensions

  • Product Net Width:
    0.093m
  • Product Net Height:
    0.106m
  • Product Net Depth:
    0.034m
  • Product Net Weight:
    0.850kg

Technical

  • Mounting Type:
    Split core through primary
  • Rated Cross-Section:
    2 x 30 x 10 mm
  • Rated Primary Current (Ipn):
    100 A

Environmental

  • RoHS Status:
    Following EU Directive 2002/95/EC August 18, 2005 and amendment

Certificates and Declarations (Document Number)

  • Declaration of Conformity - CE:
    ITSCE115CT
  • Environmental Information:
    See RoHS Information
  • Instructions and Manuals:
    Not applicable
  • RoHS Information:
    2CSC445004K0901

Container Information

  • Package Level 1 Units:
    1 piece
  • Package Level 1 Width:
    0.23 m
  • Package Level 1 Height:
    0.12 m
  • Package Level 1 Length:
    0.3 m
  • Package Level 1 Gross Weight:
    0.85 kg
  • Package Level 1 EAN:
    8012542887805

Classifications

  • Object Classification Code:
    T
  • ETIM 4:
    EC002048 - Current transformer
  • ETIM 5:
    EC002048 - Current transformer
  • ETIM 6:
    EC002048 - Current transformer

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
