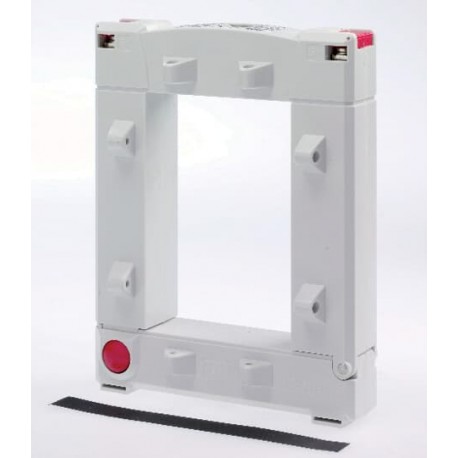

ABB 2CSG401180R1101 2CSG401180R1101 ABB CT120/800 Split core current transformer View larger
Images are for illustrative purposes only. Please refer to data sheet for details

2CSG401180R1101 ABB CT120/800 Split core current transformer

2CSG401180R1101

401180

ABB

1 Pcs.

CT120/800 Split core current transformer Trans. intens. Split Core 800/5

Automation > Current transformer
AER and Transformers

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Abb 2CSG401180R1101 split core current transformer allows easy installation around existing power cables without disconnecting the primary circuit, providing scaled outputs for meters and protection systems.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Model (EF000010): Through-feed current converter
  • Rated primary current (EF007405): 800 A
  • Rated secondary current (EF007471): 5 A
  • Rated secondary apparent power (EF007470): 1.5 VA
  • Accuracy class (EF008842): 0.5
  • Overcurrent limiting factor (EF007511): FS 5
  • Calibrated (EF008836): No
  • With contact protection (EF008186): Yes
  • Height opening (EF012757): 120 mm
  • Width opening (EF012758): 80 mm
  • Opening diameter (EF005153): 93 mm
  • Snap mounting (EF007462): No
  • With copper rail (EF007380): No
  • Secondary connection (EF021093): Screw connection
  • Number of primary inputs (EF006947): 1

More info

▲

CT120/800 is a split core current transformer used to transform primary currents to../5A secondary currents for c.a. measurement instruments

Ordering

  • Minimum Order Quantity:
    1 piece
  • Customs Tariff Number:
    85363030

Popular Downloads

  • Data Sheet, Technical Information:
    2CSC400002D0209

Dimensions

  • Product Net Width:
    0.155m
  • Product Net Height:
    0.198m
  • Product Net Depth:
    0.034m
  • Product Net Weight:
    1.300kg

Technical

  • Mounting Type:
    Split core through primary
  • Rated Cross-Section:
    4 x 120 x 10 mm
  • Rated Primary Current (Ipn):
    800 A

Environmental

  • RoHS Status:
    Following EU Directive 2002/95/EC August 18, 2005 and amendment

Certificates and Declarations (Document Number)

  • Declaration of Conformity - CE:
    ITSCE115CT
  • Environmental Information:
    See RoHS Information
  • Instructions and Manuals:
    Not applicable
  • RoHS Information:
    2CSC445004K0901

Container Information

  • Package Level 1 Units:
    1 piece
  • Package Level 1 Width:
    0.23 m
  • Package Level 1 Height:
    0.12 m
  • Package Level 1 Length:
    0.3 m
  • Package Level 1 Gross Weight:
    1.3 kg
  • Package Level 1 EAN:
    8012542889304

Classifications

  • Object Classification Code:
    T
  • ETIM 4:
    EC002048 - Current transformer
  • ETIM 5:
    EC002048 - Current transformer
  • ETIM 6:
    EC002048 - Current transformer
