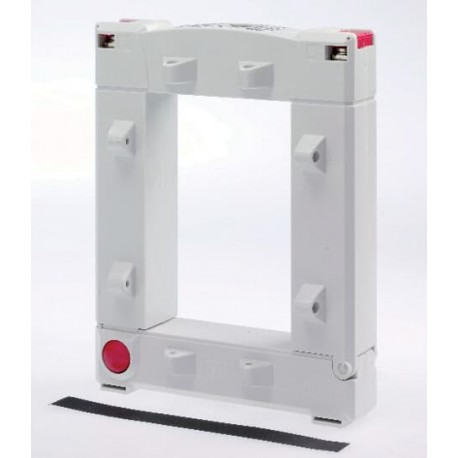

2CSG401200R1101 ABB CT120/1200 Split core current transformer
2CSG401200R1101
401200
ABB
1 Pcs.
Automation > Current transformer
AER and Transformers
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
The 2CSG401200R1101 ABB CT120/1200 Split core current transformer is a through-feed current converter designed for non-destructive installation around existing electrical conductors in heavy industrial networks. Split-core designs are essential when system shutdowns are impractical during power monitoring upgrades.
Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Model (EF000010): Through-feed current converter
- Rated primary current (EF007405): 1200 A
- Rated secondary current (EF007471): 5 A
- Rated secondary apparent power (EF007470): 5 VA
- Accuracy class (EF008842): 0.5
- Overcurrent limiting factor (EF007511): FS 5
- Calibrated (EF008836): No
- With contact protection (EF008186): Yes
- Height opening (EF012757): 120 mm
- Width opening (EF012758): 80 mm
- Opening diameter (EF005153): 0 mm
- Snap mounting (EF007462): No
- With copper rail (EF007380): No
- Secondary connection (EF021093): Screw connection
- Number of primary inputs (EF006947): 1
More info
▲CT120/1200 is a split core current transformer used to transform primary currents to../5A secondary currents for c.a. measurement instruments
Ordering
- Minimum Order Quantity:
- 1 piece
- Customs Tariff Number:
- 85043121
Popular Downloads
- Data Sheet, Technical Information:
- 2CSC400002D0209
Dimensions
- Product Net Width:
- 0.155m
- Product Net Height:
- 0.198m
- Product Net Depth:
- 0.034m
- Product Net Weight:
- 1.300kg
Technical
- Mounting Type:
- Split core through primary
- Rated Cross-Section:
- 4 x 120 x 10 mm
- Rated Primary Current (Ipn):
- 1200 A
Environmental
- RoHS Status:
- Following EU Directive 2002/95/EC August 18, 2005 and amendment
Certificates and Declarations (Document Number)
- Declaration of Conformity - CE:
- ITSCE115CT
- Environmental Information:
- See RoHS Information
- Instructions and Manuals:
- Not applicable
- RoHS Information:
- 2CSC445004K0901
Container Information
- Package Level 1 Units:
- 1 piece
- Package Level 1 Width:
- 0.23 m
- Package Level 1 Height:
- 0.12 m
- Package Level 1 Length:
- 0.3 m
- Package Level 1 Gross Weight:
- 1.3 kg
- Package Level 1 EAN:
- 8012542889502
Classifications
- Object Classification Code:
- T
- ETIM 4:
- EC002048 - Current transformer
- ETIM 5:
- EC002048 - Current transformer
- ETIM 6:
- EC002048 - Current transformer
