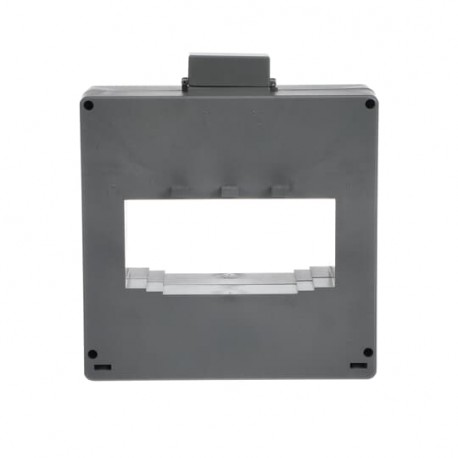

2CSG721180R1101 ABB CT12/800 Current transformer
2CSG721180R1101
721180
ABB
1 Pcs.
CT12/800 Current transformer
Automation > Current transformer
CT
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲CT12/800 is used to transform primary currents to../5A secondary currents for c.a. measurement instruments
Ordering
- EAN:
- 8012542607908
- Minimum Order Quantity:
- 1 piece
- Customs Tariff Number:
- 85043121
Dimensions
- Product Net Width:
- 0.070m
- Product Net Height:
- 0.196m
- Product Net Depth:
- 0.180m
- Product Net Weight:
- 0.680kg
Container Information
- Package Level 1 Units:
- 1 piece
- Package Level 1 Width:
- 0.196 m
- Package Level 1 Height:
- 0.069 m
- Package Level 1 Length:
- 0.18 m
- Package Level 1 Gross Weight:
- 1.6 kg
- Package Level 1 EAN:
- 8012542607908
- Package Level 2 Units:
- 1 piece
- Package Level 2 Gross Weight:
- 0.700 kg
Technical
- Mounting Type:
- Through primary
- Cable Use:
- Cable and Horizontal bar
- Cable Cross-Section:
- 2 x 50 mm
- Rated Cross-Section:
- 125 x 50 mm
- Rated Primary Current (Ipn):
- 800 A
Environmental
- RoHS Status:
- Following EU Directive 2002/95/EC August 18, 2005 and amendment
Certificates and Declarations (Document Number)
- Declaration of Conformity - CE:
- ITSCE115CT
- RoHS Information:
- 2CSC445004K0201
Classifications
- Object Classification Code:
- T
- ETIM 4:
- EC002048 - Current transformer
- ETIM 5:
- EC002048 - Current transformer
| Feature Name | Feature Value |
|---|---|
| Model (EF000010) | Through-feed current converter |
| Rated primary current (EF007405) | 800 A |
| Rated secondary current (EF007471) | 5 A |
| Accuracy class (EF008842) | 0.5 |
| Overcurrent limiting factor (EF007511) | FS 5 |
| Calibrated (EF008836) | Yes |
| With contact protection (EF008186) | Yes |
| Height opening (EF012757) | 58.3 mm |
| Width opening (EF012758) | 127.3 mm |
| Snap mounting (EF007462) | Yes |
| With copper rail (EF007380) | Yes |
| Secondary connection (EF021093) | Plug-in connection |
| Number of primary inputs (EF006947) | 1 |
