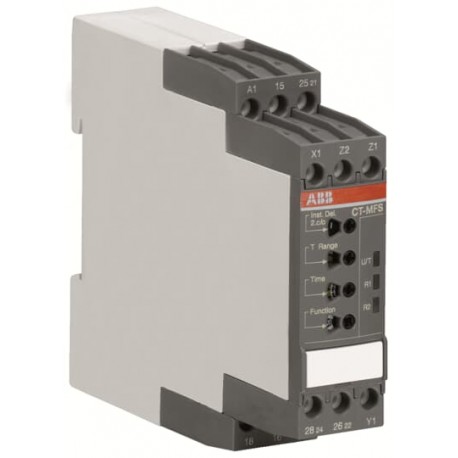

ABB 1SVR740020R0200 1SVR740020R0200 ABB CT-MVS.21P Time relay, multifunction 2c/o, 24-240VAC/DC View larger
Images are for illustrative purposes only. Please refer to data sheet for details

1SVR740020R0200 ABB CT-MVS.21P Time relay, multifunction 2c/o, 24-240VAC/DC

1SVR740020R0200

740020

ABB

1 Pcs.

CT-MVS.21P Time relay, multifunction 2c/o, 24-240VAC/DC CT-MVS.21P TEMPO. MULTIF. 2 C/C SPRING

Automation > Timer relay
CTS Time

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲
Ordering
EAN4016779851596
Minimum Order Quantity1 piece
Customs Tariff Number85364900
Popular Downloads
Data Sheet, Technical Information2CDC110004C0210_01
Instructions and Manuals1SVC730050M1000
1SVC730050M0000
CAD Dimensional Drawing2CDC001079B0201
EPLAN Data9AAC201310_EPLAN
Dimensions
Product Net Width22.5 mm
Product Net Height85.6 mm
Product Net Depth / Length103.7 mm
Product Net Weight0.136 kg
Technical
FunctionRemote potentiometer connection
Timer Relay TypeImpulse OFF
Impulse ON
OFF-Delay
ON-Delay
Star-Delta
Time Range0.05 s ... 300 h
Rated Control Supply Voltage (Us)24 ... 240 V AC/DC
Rated Operational VoltageAuxiliary Circuit 250 V
Rated Frequency (f)50 / 60 Hz
DC
Output2 c/o (SPDT) contacts
Terminal TypeScrewless Terminals
Rated Operational Current AC-12 (Ie)(230 V) 4 A
Rated Operational Current AC-15 (Ie)(230 V) 3 A
Rated Operational Current DC-12 (Ie)(24 V) 4 A
Rated Operational Current DC-13 (Ie)(24 V) 2 A
Minimum Switching Capacity12 V
100 mA
Rated Impulse Withstand Voltage (Uimp)Input Circuit 4 kV
Output Circuit 1 / Output Circuit 2 4 kV
Rated Insulation Voltage (Ui)Input Circuit / Output Circuit 500 V
Output Circuit 1 / Output Circuit 2 300 V
Degree of ProtectionHousing IP50
Terminals IP20
Overvoltage CategoryIII
Pollution Degree3
Short-Circuit Protective DevicesOutput Circuit NC - F Type Fuses 6 A
Output Circuit NO - F Type Fuses 10 A
Electrical DurabilityAC-12 100000 cycle
Mechanical DurabilityNr. Operations 30000000 cycle
Connecting CapacityFlexible with Ferrule 2x 0.5 ... 1.5 mm²
Flexible with Insulated Ferrule 2x 0.5 ... 1.5 mm²
Flexible 2x 0.5 ... 1.5 mm²
Rigid 2x 0.5 ... 1.5 mm²
Wire Stripping Length8 mm
Mounting Position1 ... 6
Mounting on DIN RailTH35-7.5 (35 x 7.5 mm Mounting Rail) acc. to IEC 60715
TH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715
StandardsCAN/CSA C22.2 No.14
IEC/EN 63000
IEC/EN 61812-1
UL 508
Technical UL/CSA
Maximum Operating Voltage UL/CSAOutput Circuit 300 V AC
Contact Rating UL/CSAB300
Connecting Capacity UL/CSAFlexible 2x 18-16 AWG
Rigid 2x 20-16 AWG
Pilot Duty UL/CSAB300
Flammability According to UL94V-0
Environmental
Ambient Air TemperatureOperation -40 ... +60 °C
Storage -40 ... +85 °C
Maximum Operating Altitude PermissibleWithout Derating 2000 m
Material Compliance
Conflict Minerals Reporting Template (CMRT)9AKK108467A5658
REACH Declaration1SVD981001-4501
RoHS Declaration1SVD981001-4401
Toxic Substances Control Act - TSCA2CMT2023-006536
ABB EcoSolutions
ABB EcoSolutionsYes
Environmental Product Declaration - EPD1SAC200371M0001
Certificates and Declarations
CQC CertificateCQC2007010303255979
cULus CertificatecULus508_20110711-E140448A
Declaration of Conformity - CCC2020980303000207
Declaration of Conformity - CE1SVD981008
Declaration of Conformity - UKCA1SVD981008-10
DNV GL CertificateDNV_GL_TAA00000XR
Container Information
Package Level 1 Unitsbox 1 piece
Package Level 1 Width97 mm
Package Level 1 Depth / Length30 mm
Package Level 1 Height109 mm
Package Level 1 Gross Weight0.159 kg
Package Level 1 EAN4016779851596
External Classifications and Standards
Object Classification CodeK
ETIM 7EC001439 - Timer relay
ETIM 8EC001439 - Timer relay
ETIM 9EC001439 - Timer relay
eClassV11.0 : 27371605
UNSPSC39122329
E-Number (Finland)2712215
E-Number (Norway)4187931
E-Number (Sweden)4033127

ETIM for 1SVR740020R0200 Relays (EC001439)
Feature Name Feature Value
Type of electric connection (EF003961) Spring clamp connection
Function delay-on energization (EF003374) Yes
Function delay on de-energization (EF003401) Yes
Function floating contact on energization (EF003378) Yes
Function floating contact on de-energization (EF003402) Yes
Function star-delta (EF003380) Yes
Function pulse shaping (EF003403) No
Function flashing, starting with pause, fixed time (EF003363) No
Function flashing, starting with pulse, fixed time (EF003364) No
Clock function, starting with pause, variable (EF003365) No
Clock function, starting with pulse, variable (EF003366) No
Remote operation possible (EF003361) Yes
Suitable as remote control (EF003362) No
Pluggable on auxiliary contact block (EF006952) No
Rated control supply voltage AC 50 Hz (EF003978) 24 V
Rated control supply voltage AC 60 Hz (EF003979) 24 V
Rated control supply voltage DC (EF003980) 24 V
Voltage type for actuating (EF008242) AC/DC
Nominal current (EF000001) 4 A
Time range (EF003384) 0.05 s
Number of outputs, undelayed, normally closed contact (EF006835) 0
Number of outputs, undelayed, normally open contact (EF006836) 0
Number of outputs, undelayed, change-over contact (EF006837) 2
Number of outputs, delayed, normally closed contact (EF006838) 0
Number of outputs, delayed, normally open contact (EF006839) 0
Number of outputs, delayed, change-over contact (EF006840) 2
Outputs, reversible delayed/undelayed (EF006988) Yes
With semiconductor output (EF003373) No
Suitable for DIN rail (top hat rail) mounting (EF007250) Yes
Width (EF000008) 22.5 mm
Height (EF000040) 85.6 mm
Depth (EF000049) 103.7 mm

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
