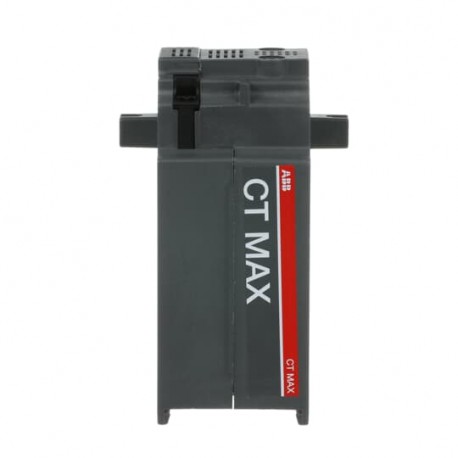

ABB 2CSG225985R1101 2CSG225985R1101 ABB Transformer intens. CT MAX 800 View larger
Images are for illustrative purposes only. Please refer to data sheet for details

2CSG225985R1101 ABB Transformer intens. CT MAX 800

2CSG225985R1101

225985

ABB

1 Pcs.

Transformer intens. CT MAX 800 Intens transformer. CT MAX 800

Automation > Current transformer
AER and Transformers

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

ABB 2CSG225985R1101 functions as a calibrated through-feed current converter used in heavy industrial switchgear to reduce substantial primary currents for measurement instruments. This unit facilitates precise power monitoring while maintaining electrical isolation for safety.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Model (EF000010): Through-feed current converter
  • Rated primary current (EF007405): 800 A
  • Rated secondary current (EF007471): 5 A
  • Rated secondary apparent power (EF007470): 2000 VA
  • Accuracy class (EF008842): 0.5
  • Overcurrent limiting factor (EF007511): FS 5
  • Calibrated (EF008836): Yes
  • With contact protection (EF008186): Yes
  • Height opening (EF012757): 12 mm
  • Width opening (EF012758): 42 mm
  • Snap mounting (EF007462): No
  • With copper rail (EF007380): No
  • Secondary connection (EF021093): Screw connection
  • Number of primary inputs (EF006947): 1
