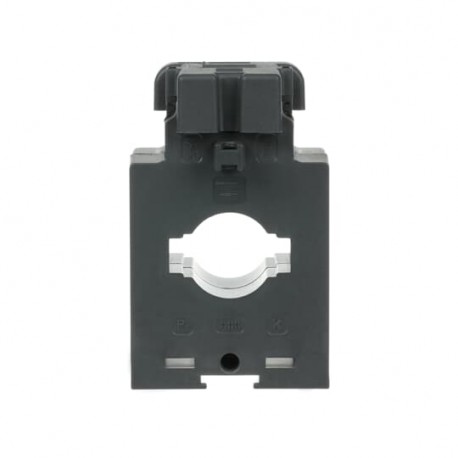

2CSG225955R1101 ABB CT MAX 400 Current transformer
2CSG225955R1101
225955
ABB
1 Pcs.
Automation > Current transformer
CT
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
ABB 2CSG225955R1101 is a through-feed current converter built for power distribution applications, allowing conductors or bars to pass through for accurate current monitoring. This component steps down large primary currents to protect and supply standard measuring devices.
Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Cable Use: Cable and Horizontal bar
- Current Rating: 400 A
- Rated Primary Current (I pn ): 400 A
- Rated Secondary Current (I sn ): 5 A
- Current Limit Function: FS 5
- Apparent Power Output: 250 V·A
- Secondary Output Connection: Screw connection
- Accuracy: ±0,5%
- Model Number: Through-feed current converter
- Number of Inputs: Primary 1
- Cable Cross-Section: 30 mm
- Rated Cross-Section: 40 x 10 mm
- Frequency ( f ): 50 ... 60 Hz
- Power Loss: 5 W
- RoHS Declaration: 2CSC445004K2701
- RoHS Information: Following EU Directive 2002/95/EC August 18, 2005 and amendment
More info
▲| Technical | |
|---|---|
| Cable Use | Cable and Horizontal bar |
| Current Rating | 400 A |
| Rated Primary Current (Ipn) | 400 A |
| Rated Secondary Current (Isn) | 5 A |
| Current Limit Function | FS 5 |
| Apparent Power Output | 250 V·A |
| Secondary Output Connection | Screw connection |
| Accuracy | ±0,5% |
| Model Number | Through-feed current converter |
| Number of Inputs | Primary 1 |
| Cable Cross-Section | 30 mm |
| Rated Cross-Section | 40 x 10 mm |
| Electrical | |
| Frequency (f) | 50 ... 60 Hz |
| Power Loss | 5 W |
| Material Compliance | |
| RoHS Declaration | 2CSC445004K2701 |
| RoHS Information | Following EU Directive 2002/95/EC August 18, 2005 and amendment |
| RoHS Date | 27/01/2014 0.00.00 |
| REACH Declaration | 9AKK108467A9482 |
| REACH Information | True - contains substances > 0.1 mass percentage |
| REACH Date | 20240429 |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108468A3363 |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| WEEE B2C / B2B | Business To Consumer |
| Environmental | |
| Ambient Air Temperature | Operation -5 ... 50 °C |
| Degree of Protection | IP30 |
| Environmental Information | See RoHS Information |
| Dimensions | |
| Product Net Width | 70 mm |
| Product Net Height | 26.5 mm |
| Product Net Depth / Length | 69 mm |
| Product Net Weight | 320 g |
| Ordering | |
| Package Level 1 Units | box 1 piece |
| Package Level 1 Gross Weight | 0.5 kg |
| E-Number (Finland) | 6701040 |
| E-Number (Norway) | 8027366 |
| Replacement Product ID (NEW) | 2CSG280385R1000 |
| Certificates and Declarations | |
| Declaration of Conformity - CE | 9AKK106713A5701 |
| Installation | |
| Instructions and Manuals | 2CSC446012B0201 |
| Mounting Type | Through Primary |
| Popular Downloads | |
| Data Sheet, Technical Information | 9AKK107046A0430 |
| External Classifications and Standards | |
| ETIM 9 | EC002048 - Current transformer |
| ETIM 10 | EC002048 - Current transformer |
| eClass | V11.0 : 27210902 |
| Object Classification Code | P |
