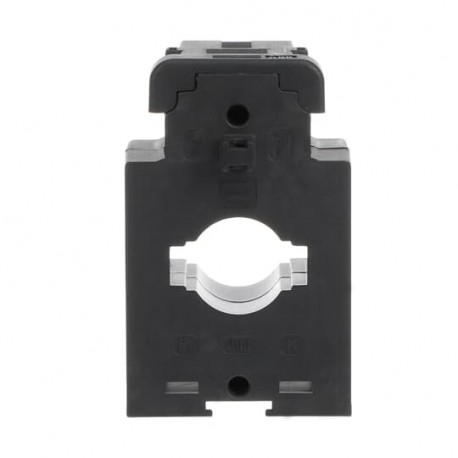

2CSG225995R1101 ABB CT MAX 1000 Current transformer
2CSG225995R1101
225995
ABB
1 Pcs.
Automation > Current transformer
CT
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
ABB part number 2CSG225995R1101 is a through-feed current converter engineered to monitor heavy electrical currents in industrial automation systems. It safely scales massive primary loads to standard proportional values required by switchboard instruments and protective relays.
Pricing, availability, and lead time are confirmed per enquiry through an RFQ.
- Model (EF000010): Through-feed current converter
- Rated primary current (EF007405): 1000 A
- Rated secondary current (EF007471): 5 A
- Rated secondary apparent power (EF007470): 1600 VA
- Accuracy class (EF008842): 0.5
- Overcurrent limiting factor (EF007511): FS 5
- Calibrated (EF008836): Yes
- With contact protection (EF008186): Yes
- Height opening (EF012757): 12 mm
- Width opening (EF012758): 42 mm
- Snap mounting (EF007462): No
- With copper rail (EF007380): No
- Secondary connection (EF021093): Screw connection
- Number of primary inputs (EF006947): 1
More info
▲CT MAX 1000 is used to transform primary currents to../5A secondary currents for c.a. measurement instruments
Ordering
- EAN:
- 8012542259954
- Minimum Order Quantity:
- 1 piece
- Customs Tariff Number:
- 90303100
Dimensions
- Product Net Width:
- 0.070m
- Product Net Height:
- 0.110m
- Product Net Depth:
- 0.045m
- Product Net Weight:
- 0.32kg
Container Information
- Package Level 1 Units:
- 1 piece
- Package Level 1 Width:
- 0.093 m
- Package Level 1 Height:
- 0.08 m
- Package Level 1 Length:
- 0.143 m
- Package Level 1 Gross Weight:
- 0.5 kg
- Package Level 1 EAN:
- 8012542259954
Technical
- Mounting Type:
- Through primary
- Cable Use:
- Cable, Horizontal and Vertical bars
- Cable Cross-Section:
- 30 mm
- Rated Cross-Section:
- 40 x 10 mm
- Rated Primary Current (Ipn):
- 1000 A
Environmental
- RoHS Status:
- Following EU Directive 2002/95/EC August 18, 2005 and amendment
Certificates and Declarations (Document Number)
- Declaration of Conformity - CE:
- ITSCE115CT
- RoHS Information:
- 2CSC445004K2701
Classifications
- Object Classification Code:
- P
- ETIM 4:
- EC002048 - Current transformer
- ETIM 5:
- EC002048 - Current transformer
