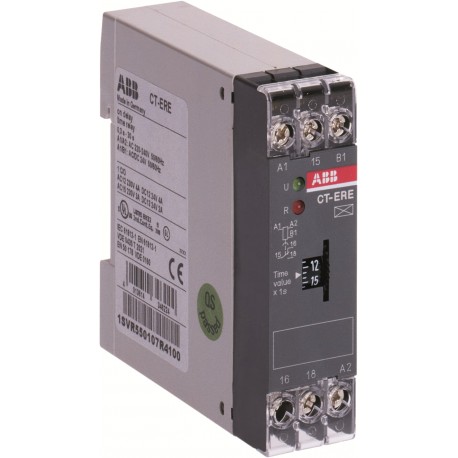

ABB CT-ERE CT-ERE 1SVR550107R4100 ABB CT-ERE Time relay, ON-delay 1c/o, 0.3-30s, 24VAC/DC 220-240VAC View larger
Images are for illustrative purposes only. Please refer to data sheet for details

CT-ERE 1SVR550107R4100 ABB CT-ERE Time relay, ON-delay 1c/o, 0.3-30s, 24VAC/DC 220-240VAC

CT-ERE

1SVR550107R4100

ABB

1 Pcs.

CT-ERE Time relay, ON-delay 1c/o, 0.3-30s, 24VAC/DC 220-240VAC Ret. ON,1c/c

Automation > Timer relay
Service Breakers

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

An ABB CT-ERE time relay is applied in general industrial control panels to provide reliable on-delay switching functions for auxiliary circuits, heating elements, and automated assembly equipment. It governs circuit activation delays based on pre-configured time frames.

Pricing, availability, and lead time are confirmed per enquiry through an RFQ.

  • EAN: 4013614346224
  • Minimum Order Quantity: 1 piece
  • Customs Tariff Number: 85364900
  • Replacement Product ID (NEW): 1SVR508100R0000
  • Data Sheet, Technical Information: 2CDC111143D0201
  • Instructions and Manuals: 1SVC550000M9000
  • EPLAN Data: 9AAC201308_EPLAN
  • Product Net Width: 22.5 mm
  • Product Net Height: 78 mm
  • Product Net Depth / Length: 78.5 mm
  • Product Net Weight: 0.067 kg
  • Timer Relay Type: ON-Delay
  • Time Range: 0.3 ... 30 second [unit of time]
  • Rated Control Supply Voltage (U s ): 220 ... 240 V AC
  • Output: 1 C/O (SPDT) Contact
  • Terminal Type: Screw Terminals

More info

▲
Ordering
EAN4013614346224
Minimum Order Quantity1 piece
Customs Tariff Number85364900
Replacement Product ID (NEW)1SVR508100R0000
Popular Downloads
Data Sheet, Technical Information2CDC111143D0201
Instructions and Manuals1SVC550000M9000
EPLAN Data9AAC201308_EPLAN
Dimensions
Product Net Width22.5 mm
Product Net Height78 mm
Product Net Depth / Length78.5 mm
Product Net Weight0.067 kg
Technical
Timer Relay TypeON-Delay
Time Range0.3 ... 30 second [unit of time]
Rated Control Supply Voltage (Us)220 ... 240 V AC
24 V AC/DC
Output1 C/O (SPDT) Contact
Terminal TypeScrew Terminals
Rated Operational Current AC-12 (Ie)(230 V) 4 A
Rated Operational Current AC-15 (Ie)(230 V) 3 A
Rated Operational Current DC-12 (Ie)(24 V) 4 A
Rated Operational Current DC-13 (Ie)(24 V) 2 A
Mounting Position1 ... 6
Mounting on DIN RailTH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715
TH35-7.5 (35 x 7.5 mm Mounting Rail) acc. to IEC 60715
StandardsCAN/CSA C22.2 No.14
IEC/EN 63000
IEC/EN 61812-1
UL 508
Material Compliance
Conflict Minerals Reporting Template (CMRT)9AKK108467A5658
RoHS Declaration1SVD981002
RoHS InformationFollowing EU Directive 2011/65/EU
Certificates and Declarations
CQC CertificateCQC2010010303393101
cUL CertificatecUL508_E140448
Declaration of Conformity - CCC2020980303000201
Declaration of Conformity - CE1SVD981002
EAC CertificateEAC_RU_C-DE.ME77.B.02016
RMRS CertificateRMRS_1740021250
UL CertificateUL508_E140448
Container Information
Package Level 1 Unitscarton 1 piece
Package Level 1 Width84.2 mm
Package Level 1 Depth / Length24.6 mm
Package Level 1 Height83.1 mm
Package Level 1 Gross Weight0.078 kg
Package Level 1 EAN4013614346224
External Classifications and Standards
Object Classification CodeK
ETIM 7EC001439 - Timer relay
ETIM 8EC001439 - Timer relay
ETIM 9EC001439 - Timer relay
eClassV11.0 : 27371605
UNSPSC39122329
E-Number (Finland)2712610
E-Number (Sweden)4033078

Product Datasheet
