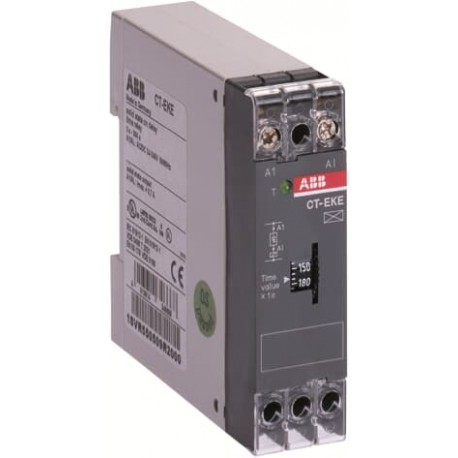

CT-EKE 1SVR550509R2000 ABB CT-EKE Time relay, ON-delay solid-state, 1n/o, 3-300s, 24-240VAC/DC
CT-EKE
1SVR550509R2000
ABB
1 Pcs.
Automation > Timer relay
CTE Time
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
The Abb CT-EKE solid-state time relay governs circuit operations by providing reliable ON-delay functionality in industrial control loops. These electronic timing components are commonly installed in motor starter assemblies and production lines to sequence power delivery safely.
Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- EAN: 4013614346668
- Minimum Order Quantity: 1 piece
- Customs Tariff Number: 85364900
- Replacement Product ID (NEW): 1SVR508010R1300
- Data Sheet, Technical Information: 2CDC111142D0201
- Instructions and Manuals: 1SVC550000M9000
- EPLAN Data: 9AAC201308_EPLAN
- Product Net Width: 22.5 mm
- Product Net Height: 78 mm
- Product Net Depth / Length: 78.5 mm
- Product Net Weight: 0.05 kg
- Timer Relay Type: ON-Delay
- Time Range: 3 ... 300 second [unit of time]
- Rated Control Supply Voltage (U s ): 24 ... 240 V AC/DC
- Output: Solid-State
- Terminal Type: Screw Terminals
More info
▲| Ordering | |
|---|---|
| EAN | 4013614346668 |
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85364900 |
| Replacement Product ID (NEW) | 1SVR508010R1300 |
| Popular Downloads | |
| Data Sheet, Technical Information | 2CDC111142D0201 |
| Instructions and Manuals | 1SVC550000M9000 |
| EPLAN Data | 9AAC201308_EPLAN |
| Dimensions | |
| Product Net Width | 22.5 mm |
| Product Net Height | 78 mm |
| Product Net Depth / Length | 78.5 mm |
| Product Net Weight | 0.05 kg |
| Technical | |
| Timer Relay Type | ON-Delay |
| Time Range | 3 ... 300 second [unit of time] |
| Rated Control Supply Voltage (Us) | 24 ... 240 V AC/DC |
| Output | Solid-State |
| Terminal Type | Screw Terminals |
| Mounting Position | 1 ... 6 |
| Mounting on DIN Rail | TH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715 |
| TH35-7.5 (35 x 7.5 mm Mounting Rail) acc. to IEC 60715 | |
| Standards | CAN/CSA C22.2 No.14 |
| IEC/EN 63000 | |
| IEC/EN 61812-1 | |
| UL 508 | |
| Material Compliance | |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108467A5658 |
| RoHS Declaration | 1SVD981002 |
| RoHS Information | Following EU Directive 2011/65/EU |
| Certificates and Declarations | |
| cUL Certificate | cUL508_E140448 |
| Declaration of Conformity - CE | 1SVD981002 |
| EAC Certificate | EAC_RU_C-DE.ME77.B.02016 |
| RMRS Certificate | RMRS_1740021250 |
| UL Certificate | UL508_E140448 |
| Container Information | |
| Package Level 1 Units | carton 1 piece |
| Package Level 1 Width | 84.2 mm |
| Package Level 1 Depth / Length | 24.6 mm |
| Package Level 1 Height | 83.1 mm |
| Package Level 1 Gross Weight | 0.061 kg |
| Package Level 1 EAN | 4013614346668 |
| External Classifications and Standards | |
| Object Classification Code | K |
| ETIM 7 | EC001439 - Timer relay |
| ETIM 8 | EC001439 - Timer relay |
| ETIM 9 | EC001439 - Timer relay |
| eClass | V11.0 : 27371605 |
| UNSPSC | 39122329 |
| E-Number (Finland) | 2712634 |
