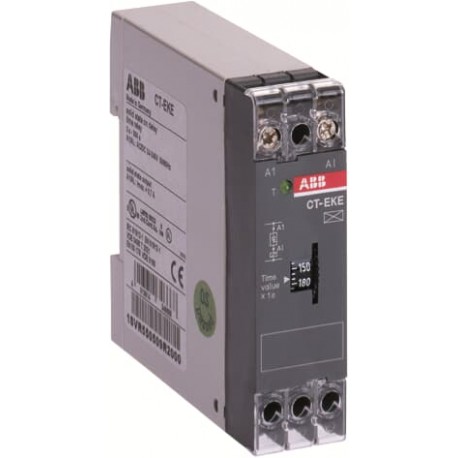

ABB CT-EKE CT-EKE 1SVR550509R4000 ABB CT-EKE Time relay, ON-delay solid-state, 1n/o, 0.3-30s, 24-240VAC/DC View larger
Images are for illustrative purposes only. Please refer to data sheet for details

CT-EKE 1SVR550509R4000 ABB CT-EKE Time relay, ON-delay solid-state, 1n/o, 0.3-30s, 24-240VAC/DC

CT-EKE

1SVR550509R4000

ABB

1 Pcs.

CT-EKE Time relay, ON-delay solid-state, 1n/o, 0.3-30s, 24-240VAC/DC Solid-state ret. ON,1n/o

Automation > Timer relay
CTE Time

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲
Ordering
EAN4013614346675
Minimum Order Quantity1 piece
Customs Tariff Number85364900
Replacement Product ID (NEW)1SVR508010R1300
Popular Downloads
Data Sheet, Technical Information2CDC111142D0201
Instructions and Manuals1SVC550000M9000
EPLAN Data9AAC201308_EPLAN
Dimensions
Product Net Width22.5 mm
Product Net Height78 mm
Product Net Depth / Length78.5 mm
Product Net Weight0.05 kg
Technical
Timer Relay TypeON-Delay
Time Range0.3 ... 30 second [unit of time]
Rated Control Supply Voltage (Us)24 ... 240 V AC/DC
OutputSolid-State
Terminal TypeScrew Terminals
Mounting Position1 ... 6
Mounting on DIN RailTH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715
TH35-7.5 (35 x 7.5 mm Mounting Rail) acc. to IEC 60715
StandardsCAN/CSA C22.2 No.14
IEC/EN 63000
IEC/EN 61812-1
UL 508
Material Compliance
Conflict Minerals Reporting Template (CMRT)9AKK108467A5658
RoHS Declaration1SVD981002
RoHS InformationFollowing EU Directive 2011/65/EU
Certificates and Declarations
cUL CertificatecUL508_E140448
Declaration of Conformity - CE1SVD981002
EAC CertificateEAC_RU_C-DE.ME77.B.02016
RMRS CertificateRMRS_1740021250
UL CertificateUL508_E140448
Container Information
Package Level 1 Unitscarton 1 piece
Package Level 1 Width84.2 mm
Package Level 1 Depth / Length24.6 mm
Package Level 1 Height83.1 mm
Package Level 1 Gross Weight0.061 kg
Package Level 1 EAN4013614346675
External Classifications and Standards
Object Classification CodeK
ETIM 7EC001439 - Timer relay
ETIM 8EC001439 - Timer relay
ETIM 9EC001439 - Timer relay
eClassV11.0 : 27371605
UNSPSC39122329
E-Number (Finland)2712635
