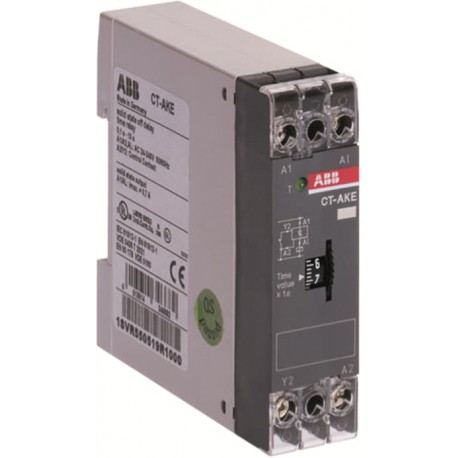

ABB CT-AKE CT-AKE 1SVR550519R2000 ABB CT-AKE Time relay, OFF-delay solid-state, 1n/o, 3-300s, 24-240VAC View larger
Images are for illustrative purposes only. Please refer to data sheet for details

CT-AKE 1SVR550519R2000 ABB CT-AKE Time relay, OFF-delay solid-state, 1n/o, 3-300s, 24-240VAC

CT-AKE

1SVR550519R2000

ABB

1 Pcs.

CT-AKE Time relay, OFF-delay solid-state, 1n/o, 3-300s, 24-240VAC Solid-state ret. OFF,1/no

Automation > Timer relay
CTE Time

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

The Abb CT-AKE is an OFF-delay solid-state time relay designed to introduce controlled time delays in industrial control systems and automation panels. Timer relays of this category regulate operational sequences, manage motor start-up phases, or delay shut-down procedures to protect connected equipment from abrupt state changes.

Pricing, availability, and lead time are confirmed per enquiry through an RFQ.

  • EAN: 4013614346699
  • Minimum Order Quantity: 1 piece
  • Customs Tariff Number: 85364900
  • Replacement Product ID (NEW): 1SVR508010R1300
  • Data Sheet, Technical Information: 2CDC111137D0201
  • Instructions and Manuals: 1SVC550000M9000
  • EPLAN Data: 9AAC201308_EPLAN
  • Product Net Width: 22.5 mm
  • Product Net Height: 78 mm
  • Product Net Depth / Length: 78.5 mm
  • Product Net Weight: 0.057 kg
  • Timer Relay Type: OFF-Delay
  • Time Range: 3 ... 300 second [unit of time]
  • Rated Control Supply Voltage (U s ): 24 ... 240 V AC
  • Output: Solid-State
  • Terminal Type: Screw Terminals

More info

▲
Ordering
EAN4013614346699
Minimum Order Quantity1 piece
Customs Tariff Number85364900
Replacement Product ID (NEW)1SVR508010R1300
Popular Downloads
Data Sheet, Technical Information2CDC111137D0201
Instructions and Manuals1SVC550000M9000
EPLAN Data9AAC201308_EPLAN
Dimensions
Product Net Width22.5 mm
Product Net Height78 mm
Product Net Depth / Length78.5 mm
Product Net Weight0.057 kg
Technical
Timer Relay TypeOFF-Delay
Time Range3 ... 300 second [unit of time]
Rated Control Supply Voltage (Us)24 ... 240 V AC
OutputSolid-State
Terminal TypeScrew Terminals
Mounting Position1 ... 6
Mounting on DIN RailTH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715
TH35-7.5 (35 x 7.5 mm Mounting Rail) acc. to IEC 60715
StandardsCAN/CSA C22.2 No.14
IEC/EN 63000
IEC/EN 61812-1
UL 508
Material Compliance
Conflict Minerals Reporting Template (CMRT)9AKK108467A5658
RoHS Declaration1SVD981002
RoHS InformationFollowing EU Directive 2011/65/EU
Certificates and Declarations
cUL CertificatecUL508_E140448
Declaration of Conformity - CE1SVD981002
EAC CertificateEAC_RU_C-DE.ME77.B.02016
RMRS CertificateRMRS_1740021250
UL CertificateUL508_E140448
Container Information
Package Level 1 Unitscarton 1 piece
Package Level 1 Width84.2 mm
Package Level 1 Depth / Length24.6 mm
Package Level 1 Height83.1 mm
Package Level 1 Gross Weight0.069 kg
Package Level 1 EAN4013614346699
External Classifications and Standards
Object Classification CodeK
ETIM 7EC001439 - Timer relay
ETIM 8EC001439 - Timer relay
ETIM 9EC001439 - Timer relay
eClassV11.0 : 27371605
UNSPSC39122329
E-Number (Finland)2712637
