View larger

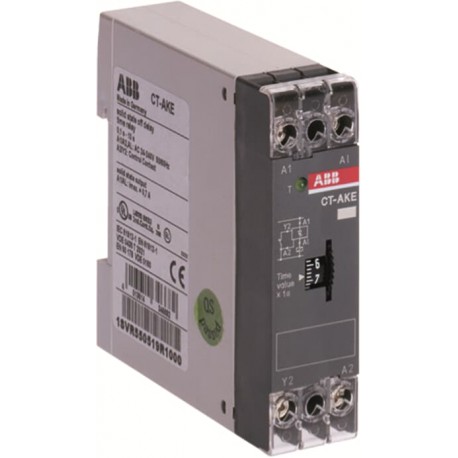

CT-AKE 1SVR550519R1000 ABB CT-AKE Time relay, OFF-delay solid-state, 1n/o, 0.1-10s, 24-240VAC
CT-AKE
1SVR550519R1000
ABB
1 Pcs.
Automation > Timer relay
CTE Time
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
Abb CT-AKE is a solid-state off-delay time relay engineered for dependable interval timing in commercial and industrial electrical infrastructure. Time relays manage switching cycles, machinery pauses, and auxiliary loads to protect equipment during complex automation sequences. Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- EAN: 4013614346682
- Minimum Order Quantity: 1 piece
- Customs Tariff Number: 85364900
- Replacement Product ID (NEW): 1SVR508010R1300
- Data Sheet, Technical Information: 2CDC111137D0201
- Instructions and Manuals: 1SVC550000M9000
- EPLAN Data: 9AAC201308_EPLAN
- Product Net Width: 22.5 mm
- Product Net Height: 78 mm
- Product Net Depth / Length: 78.5 mm
- Product Net Weight: 0.059 kg
- Timer Relay Type: OFF-Delay
- Time Range: 0.1 ... 10 second [unit of time]
- Rated Control Supply Voltage (U s ): 24 ... 240 V AC
- Output: Solid-State
- Terminal Type: Screw Terminals
More info
▲| Ordering | |
|---|---|
| EAN | 4013614346682 |
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85364900 |
| Replacement Product ID (NEW) | 1SVR508010R1300 |
| Popular Downloads | |
| Data Sheet, Technical Information | 2CDC111137D0201 |
| Instructions and Manuals | 1SVC550000M9000 |
| EPLAN Data | 9AAC201308_EPLAN |
| Dimensions | |
| Product Net Width | 22.5 mm |
| Product Net Height | 78 mm |
| Product Net Depth / Length | 78.5 mm |
| Product Net Weight | 0.059 kg |
| Technical | |
| Timer Relay Type | OFF-Delay |
| Time Range | 0.1 ... 10 second [unit of time] |
| Rated Control Supply Voltage (Us) | 24 ... 240 V AC |
| Output | Solid-State |
| Terminal Type | Screw Terminals |
| Mounting Position | 1 ... 6 |
| Mounting on DIN Rail | TH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715 |
| TH35-7.5 (35 x 7.5 mm Mounting Rail) acc. to IEC 60715 | |
| Standards | CAN/CSA C22.2 No.14 |
| IEC/EN 63000 | |
| IEC/EN 61812-1 | |
| UL 508 | |
| Material Compliance | |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108467A5658 |
| RoHS Declaration | 1SVD981002 |
| RoHS Information | Following EU Directive 2011/65/EU |
| Certificates and Declarations | |
| cUL Certificate | cUL508_E140448 |
| Declaration of Conformity - CE | 1SVD981002 |
| EAC Certificate | EAC_RU_C-DE.ME77.B.02016 |
| RMRS Certificate | RMRS_1740021250 |
| UL Certificate | UL508_E140448 |
| Container Information | |
| Package Level 1 Units | carton 1 piece |
| Package Level 1 Width | 84.2 mm |
| Package Level 1 Depth / Length | 24.6 mm |
| Package Level 1 Height | 83.1 mm |
| Package Level 1 Gross Weight | 0.07 kg |
| Package Level 1 EAN | 4013614346682 |
| External Classifications and Standards | |
| Object Classification Code | K |
| ETIM 7 | EC001439 - Timer relay |
| ETIM 8 | EC001439 - Timer relay |
| ETIM 9 | EC001439 - Timer relay |
| eClass | V11.0 : 27371605 |
| UNSPSC | 39122329 |
| E-Number (Finland) | 2712636 |
