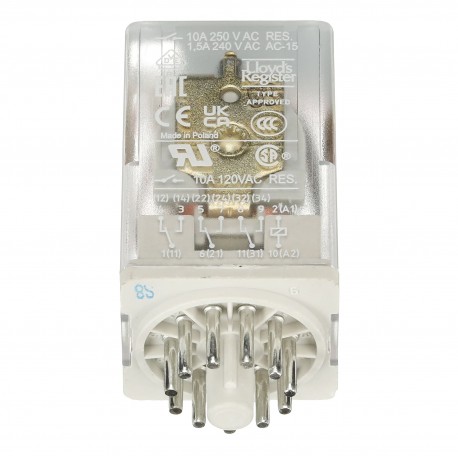

1SVR405622R6000 ABB CR-U048DC3 Pluggable interface relay 3c/o, A1-A2 48VDC, 250V/10A
1SVR405622R6000
405622
ABB
1 Pcs.
CR-U048DC3 Pluggable interface relay 3c/o, A1-A2=48VDC, 250V/10A
CR-U048DC3 plug-in relays
Automation > Switching relay
Plug-in
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲| Ordering | |
|---|---|
| EAN | 4013614498688 |
| Minimum Order Quantity | 10 piece |
| Customs Tariff Number | 85364900 |
| Popular Downloads | |
| Data Sheet, Technical Information | 2CDC110004C0210_05 |
| Instructions and Manuals | 1SVC405600M9000 |
| CAD Dimensional Drawing | 2CDC001079B0201 |
| Dimensions | |
| Product Net Width | 35 mm |
| Product Net Height | 54.4 mm |
| Product Net Depth / Length | 35 mm |
| Product Net Weight | 0.083 kg |
| Technical | |
| Function | Pluggable universal interface relay CR-U |
| Sub-Function | Relay w/o built in LED |
| Rated Control Supply Voltage (Us) | 48 V DC |
| Rated Operational Voltage | 250 V AC |
| Output | 3 C/O (SPDT) Contacts |
| Output Signal | 250 V / 10 A |
| Terminal Type | Pin |
| Rated Operational Current AC-12 (Ie) | (230 V) 10 A |
| Rated Operational Current AC-15 (Ie) | (120 V) 3 A |
| (230 V) 1.5 A | |
| Rated Operational Current DC-12 (Ie) | (24 V) 10 A |
| Rated Operational Current DC-13 (Ie) | (24 V) 2 A |
| (250 V) 0.1 A | |
| Rated Insulation Voltage (Ui) | 250 V |
| Degree of Protection | IP40 |
| Mounting Position | 1 |
| Standards | CAN/CSA C22.2 No.14 |
| IEC/EN 63000 | |
| IEC/EN 61810-1 | |
| UL 508 | |
| Technical UL/CSA | |
| Maximum Operating Voltage UL/CSA | 300 V AC |
| Pilot Duty UL/CSA | B300 |
| Flammability According to UL94 | HB |
| Environmental | |
| Ambient Air Temperature | Operation -40 ... +70 °C |
| Storage -40 ... +85 °C | |
| Maximum Operating Altitude Permissible | Without Derating 2000 m |
| Material Compliance | |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108467A5658 |
| REACH Declaration | 1SVD981001-4501 |
| RoHS Declaration | 1SVD981001-4401 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| Toxic Substances Control Act - TSCA | 2CMT2023-006536 |
| Certificates and Declarations | |
| CCC Certificate | CCC_2017010303949759 |
| CQC Certificate | CQC2017010303949759 |
| CSA Certificate | CSA_1587291 |
| Declaration of Conformity - CCC | 2020980303000199 |
| Declaration of Conformity - CE | 1SVD982021-0003 |
| Declaration of Conformity - UKCA | 1SVD982021-1000 |
| EAC Certificate | EAC_RU_C-DE.ME77.B.00446-19 |
| LR Certificate | LR_05_20002_E5 |
| RMRS Certificate | RMRS_1740019250 |
| UR Certificate | UR_E244330 |
| VDE Certificate | VDE_40019116 |
| Container Information | |
| Package Level 1 Units | box 10 piece |
| Package Level 1 Width | 182 mm |
| Package Level 1 Depth / Length | 77 mm |
| Package Level 1 Height | 76 mm |
| Package Level 1 Gross Weight | 0.87 kg |
| Package Level 1 EAN | 4013614374210 |
| External Classifications and Standards | |
| Object Classification Code | K |
| ETIM 7 | EC001437 - Switching relay |
| ETIM 8 | EC001437 - Switching relay |
| ETIM 9 | EC001437 - Switching relay |
| eClass | V11.0 : 27371601 |
| UNSPSC | 39122331 |
| E-Number (Finland) | 2712777 |
| E-Number (Norway) | 4187466 |
| Feature Name | Feature Value |
|---|---|
| Type of electric connection (EF003961) | Other |
| With detachable clamps (EF003340) | No |
| Nominal current (EF000001) | 10 A |
| Rated control supply voltage DC (EF003980) | 48 V |
| Voltage type for actuating (EF008242) | DC |
| Drive, polarization (EF003355) | Polarized |
| Drive, switching attitude (EF003356) | Mono stable |
| Number of contacts as normally closed contact (EF008255) | 0 |
| Number of contacts as normally open contact (EF008256) | 0 |
| Number of contacts as change-over contact (EF008257) | 3 |
| With forced-guided contacts (EF003357) | No |
| Type of switch contact (EF003358) | Single contact |
| Complete with socket (EF003359) | No |
| With LED indication (EF005950) | No |
| Material of contact surface (EF004020) | Other |
| Material contact (EF007544) | Other |
| Degree of protection (IP) (EF005474) | IP40 |
| Width (EF000008) | 35 mm |
| Height (EF000040) | 54.4 mm |
| Depth (EF000049) | 35 mm |
