1SVR405599R0000 ABB CR-SSEP Separator
1SVR405599R0000
405599
ABB
10 Pcs.
Automation > Accessories/spare parts for switching relay
Interface Relays
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview

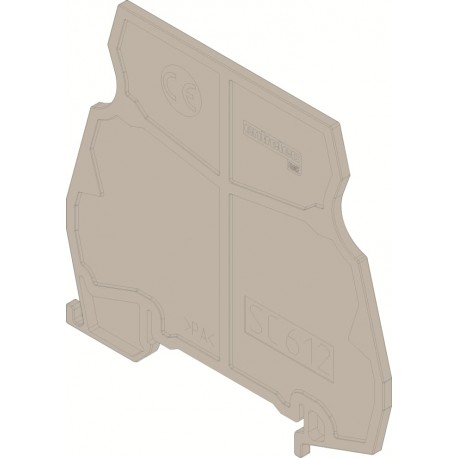

The Abb 1SVR405599R0000 ABB CR-SSEP Separator acts as a physical and electrical partition utilized between adjacent relay modules and terminal blocks to ensure proper isolation and clearance within modular installations. Separators prevent accidental bridging, enhance safety compliance, and assist in organizing multi-voltage layouts on standard DIN rails. Pricing, availability, and lead time are confirmed per enquiry through an RFQ.
- EAN: 4013614499432
- Minimum Order Quantity: 10 piece
- Customs Tariff Number: 85389099
- Data Sheet, Technical Information: 2CDC110004C0210_05
- Instructions and Manuals: 2CDC117022D0201
- CAD Dimensional Drawing: 2CDC001079B0201
- Product Net Width: 2 mm
- Product Net Height: 92.7 mm
- Product Net Depth / Length: 71.1 mm
- Product Net Weight: 0.012 kg
- Function: Accessory for interface relays CR-S
- Sub-Function: Separator
- Conflict Minerals Reporting Template (CMRT): 9AKK108467A5658
- REACH Declaration: 1SVD981001-4501
- RoHS Declaration: 1SVD981001-4401
- RoHS Information: Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
More info
▲| Ordering | |
|---|---|
| EAN | 4013614499432 |
| Minimum Order Quantity | 10 piece |
| Customs Tariff Number | 85389099 |
| Popular Downloads | |
| Data Sheet, Technical Information | 2CDC110004C0210_05 |
| Instructions and Manuals | 2CDC117022D0201 |
| CAD Dimensional Drawing | 2CDC001079B0201 |
| Dimensions | |
| Product Net Width | 2 mm |
| Product Net Height | 92.7 mm |
| Product Net Depth / Length | 71.1 mm |
| Product Net Weight | 0.012 kg |
| Technical | |
| Function | Accessory for interface relays CR-S |
| Sub-Function | Separator |
| Material Compliance | |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108467A5658 |
| REACH Declaration | 1SVD981001-4501 |
| RoHS Declaration | 1SVD981001-4401 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| Toxic Substances Control Act - TSCA | 2CMT2023-006536 |
| Certificates and Declarations | |
| Container Information | |
| Package Level 1 Units | bag 10 piece |
| Package Level 1 Width | 160 mm |
| Package Level 1 Depth / Length | 86 mm |
| Package Level 1 Height | 68 mm |
| Package Level 1 Gross Weight | 0.17 kg |
| Package Level 1 EAN | 4013614486838 |
| External Classifications and Standards | |
| ETIM 7 | EC002586 - Accessories for switching relay |
| ETIM 8 | EC002586 - Accessories/spare parts for switching relay |
| ETIM 9 | EC002586 - Accessories/spare parts for switching relay |
| eClass | V11.0 : 27371692 |
| UNSPSC | 39122331 |
| E-Number (Finland) | 2712384 |
| E-Number (Sweden) | 4001415 |
